Product Description

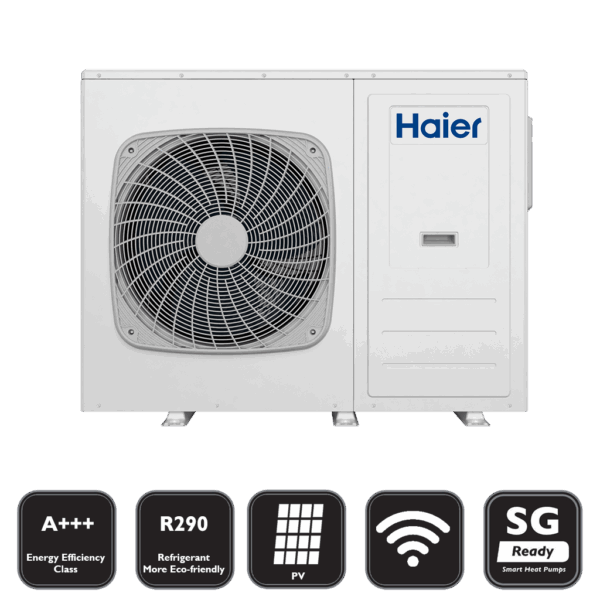

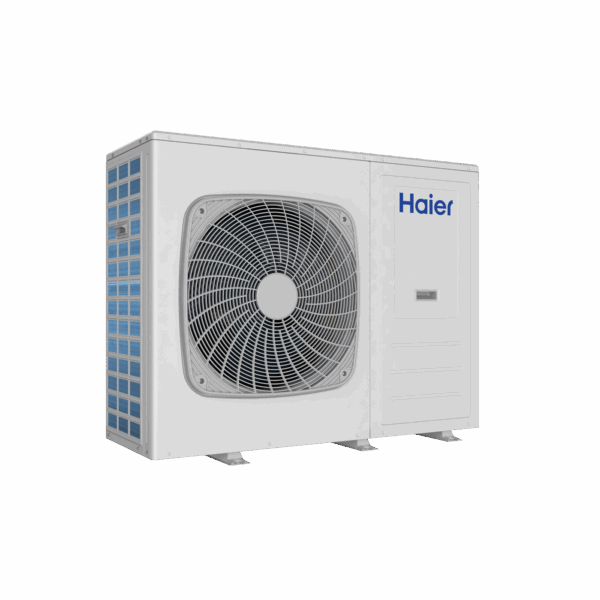

Haier Monoblock 12 kW air/water heat pump HPM12-Nd2 R290 A+++
Technical features
- Brand/Model: Haier HPM12-Nd2(GN)
- Type of heat pump: heating and cooling
- Design: Monoblock
- Energy label: A+++
- Type: Electric
- Energy efficient thanks to Panasonic inverter technology.
- Wi-Fi capability: Yes
- Weight: 154 / 177 kg
- Power: 12kW
- Refrigerant: R290
- Max. water temperature: 75 °C
- Connected load: 220~240V/50Hz
- Sound power level: 68 dB(A)
- Dimensions: 136.2 x 56.7 x 116.7 cm
Haier ProWarm is an integrated system that provides everything you need for your home: heating, cooling, and domestic hot water. It's also an ideal alternative to conventional gas or oil boilers, allowing you to enjoy warm, comfortable hot water all year round. It features the new natural refrigerant R290. It's an environmentally friendly option, reducing carbon emissions and contributing to the global goal of carbon neutrality.
With a maximum water temperature of 75°C, it meets a wide range of end-user requirements. Haier ProWarm can be used in combination with underfloor heating, fan coil units, radiators, and water tanks. With a high temperature of 75°C, it ensures optimal temperatures and a consistent flow of hot water year-round, even with older cast iron radiators. The heat pump operates with electric heating, which is only activated when the heat pump's output is insufficient.
High efficiency
ERP Directive Double A+++. As stated on the product label, Haier ProWarm achieves optimal performance with an energy rating of A+++.
Classification A+++ under conditions A7W35 and A7W55.
Heating in winter
Haier ProWarm* can heat the entire house to increase your comfort during the cold season.
Warm water all year round
Covers all your hot water needs throughout the year, e.g. for bathing, washing, etc.
Cooling in summer
Haier ProWarm* cools quickly and provides comfort during the hot season.
Three modes for optimal operation:
- SG mode: The smart grid will significantly improve the reliability and quality of power supply by reducing peak power demand.
- HC mode: Heating during times of lower demand to ensure that hot water is available at the lowest possible cost.
- PV mode: Decide
All advantages at a glance:
- Electric auxiliary heating: Electric auxiliary start, max. heating temperature up to 75°C
- Water return function: This symbol lights up when the water return function is activated
- Timer mode: This symbol lights up when the timer is activated
- Heating mode: This symbol lights up when the system is in heating mode
-
Domestic hot water mode This symbol lights up when the system is in domestic hot water mode
- Vacation mode: This icon lights up when the system is in vacation mode
- Energy saving mode: Works in high efficiency mode
- Intelligent defrost mode: Automatic defrosting
- Quiet mode: Low operating frequency at night
- Antifreeze mode: When the ambient temperature is less than or equal to the antifreeze temperature, the water circulation pump starts working
- Cooling mode: This symbol lights up when the system is in cooling mode
-
Sterilization mode: Tank sterilization: 65℃-75℃ high temperature sterilization
(Default 65℃) - Parental Control: Locks the screen for additional security
Important NOTE!
Installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certified contractors and special qualifications) must be provided. Failure to provide such proof will void any warranty and guarantee.
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
