• One of the most cost-effective ways to heat buildings. The system also works at temperatures as low as -25°C.
• High efficiency and long service life thanks to the use of components from world-renowned manufacturers
• A comprehensive control system ensures optimal monitoring and security. Internet control is possible. A wired control panel is included as standard.
• High ease of use. Intuitive and simple operation of the controls.
• The device's compact design allows for quick installation.

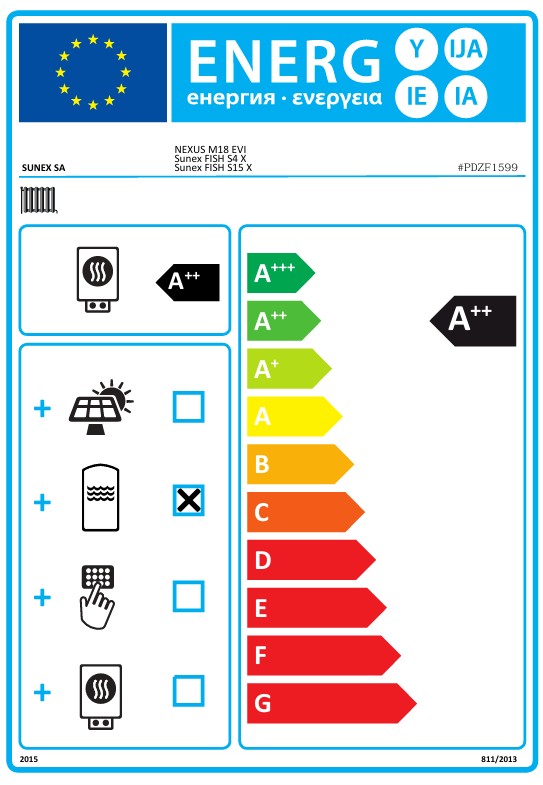

• Energy class A++ at 55°C flow temperature, A+++ at 35°C flow temperature

The ultimate feeling of comfort

NEXUS M EVI heat pumps enable optimal room temperature with minimal energy consumption. They allow the right air temperature to be achieved while simultaneously providing access to hot water to fully meet consumer needs.

Advantages of monoblock construction

The pump is designed entirely for outdoor installation. A key feature of the pump is that the entire cooling system is housed in a single unit, with only the pipes supplying heat to the building extending outside.

Working under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Working under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Technical data:

• SCOP (W35) temperate climate: 4.46 kWh
• SCOP (W55) temperate climate: 3.51 kWh
• Energy efficiency class (W35): A+++
• Energy efficiency class (W55): A++
• Compressor: Panasonic (rotating, multi-stage vapor injection)
• Expansion valve: electronic
• Number of fans:
• Circulation pump: no
• Water-side pressure loss: 35 kPa
• Control: Standard control module
• Outdoor temperature: -25 to +45°C
• Flow temperature: 55°C
• Recommended heating water flow rate: 3.1 m³/h
• Work equipment / GWP: R32 / 675
• Amount of refrigerant R32: 2.7 kg
• Defrosting method: Hot gas (reverse cycle)
• Sound power level: 57dB
• Dimensions: 1050x480x1330mm
• Weight (net/gross): 170/180 kg
• Power supply: 380-450V 3~ 50Hz
• Max. current (heating/cooling/hot water): 6.37/6.28/7.15A


FISH S4 100X buffer storage tank as wall-mounted or floor-standing version

The buffer tank is designed for vertical installation only. It is ideal for all types of heating systems, especially those using heat pumps. The buffer tank allows for the connection of a heat source circuit and a central heating circuit. It can be wall-mounted or placed on feet. Buffer tanks can be used to store cold water at temperatures between 7 and 12°C.

Technical data buffer storage tank FISH S4 100X:

• Material: S235JR
• Capacity: 100L
• Maximum operating pressure of the storage tank: 3 bar
• Operating temperature range: 7–95°C
• Insulation: 30mm
• Heat source connection: G 1½”
• Water drain connection: G 1½”
• Temperature sensor connection: G ½”
• Weight: 23kg

FISH S15 300X domestic hot water storage tank

Vertical hot water storage tank for domestic hot water preparation. The tank features a large-surface heat exchanger for a heat pump. The contact surface between the hot water and the tank is protected against corrosion by a layer of high-quality enamel and a magnesium anode*. Complies with DIN 4753. This ensures that the domestic hot water only comes into contact with a hygienically clean surface.

Technical data for Fisch S15 300X hot water storage tank:

• Material: S235JR
• Capacity: 300L
• Welding: automatic welding
• Protection: high-quality enamel coating and protective anode
• Maximum operating pressure of the storage tank: 10 bar
• Maximum test pressure: 15 bar
• Maximum operating temperature: 95ºC
• Insulation: 50mm thick polyurethane foam
• Outer shell: grey color
• Heat exchanger: Steel tube S235JR
• Inspection opening: ø125mm/ø180mm
