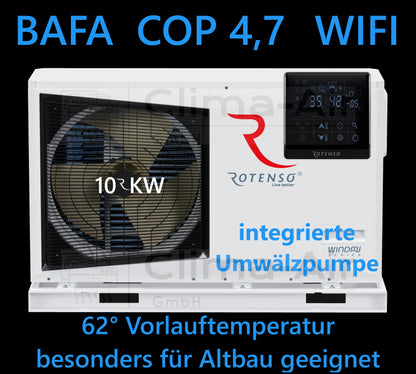

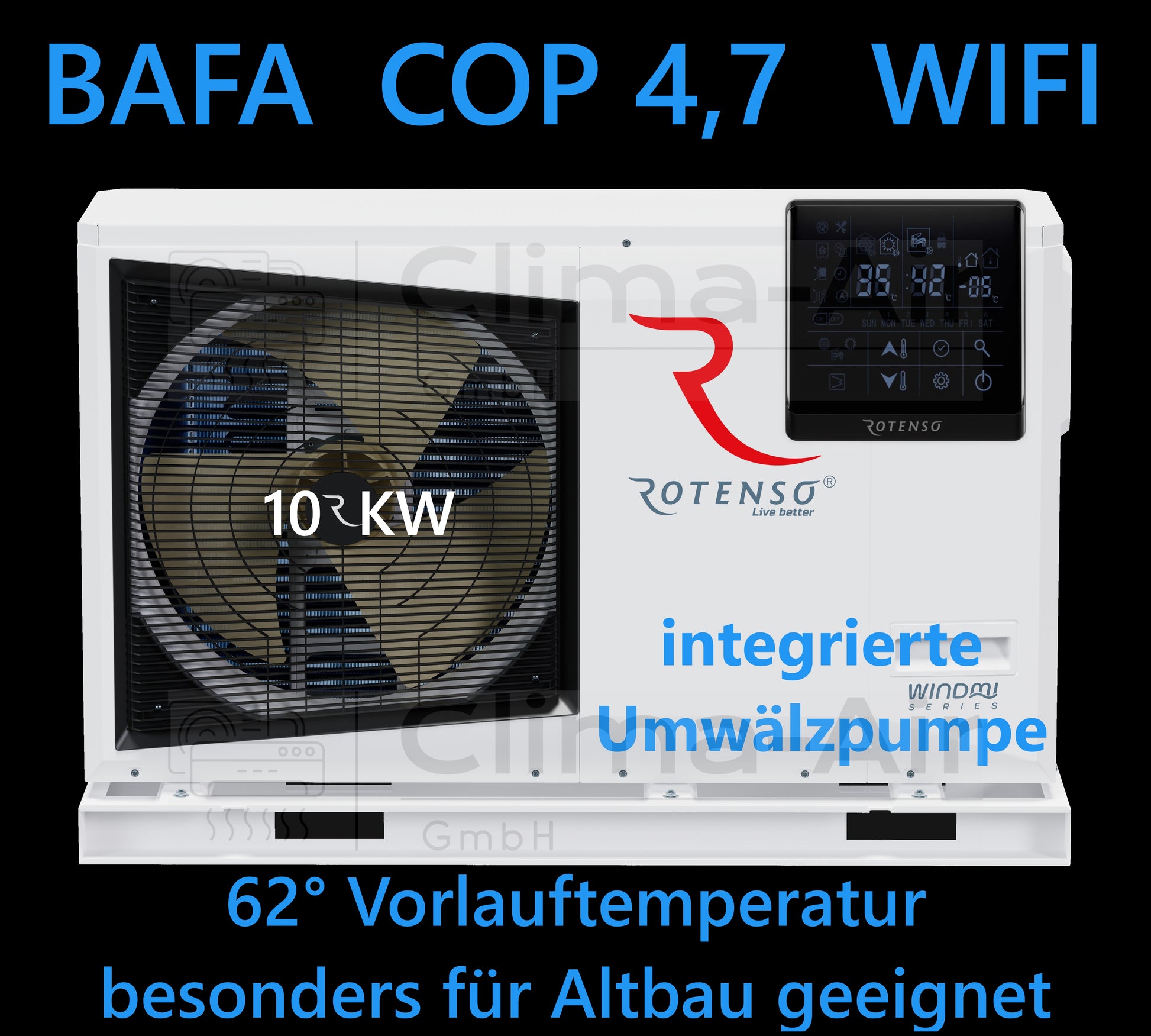

Rotenso Windmi WIM100X1 Heat Pump Monoblock Air-Water 10KW BAFA Wifi A+++, Heating Cooling

ROTENSO WINDMI WIM100X1 R14 10 KW SINGLE PHASE MONOBLOCK AIR HEAT PUMP

WHY CHOOSE WINDMI?

• Complete monoblock: All technology is contained in the outdoor unit – easier and faster to install

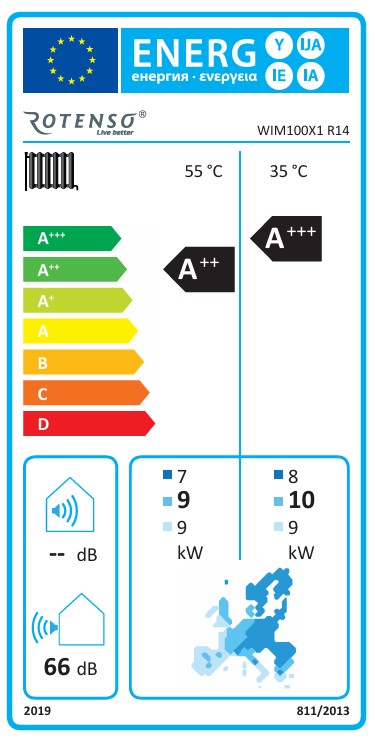

• Highest energy class: A+++ at 35 °C, A++ at 55 °C – ready for the future

• Max. flow temperature 62°C – suitable for underfloor heating and radiators

• Quiet and powerful: from only 45 dB(A) in quiet mode

• Wide operating range: heating to -25 °C and cooling to 43 °C outside temperature

• Smart Grid Ready: optimally combined with solar modules

• Integrated Wi-Fi: Easily control your heat pump via smartphone (TUYA app)

• Includes touchscreen controller with color display, clock functions and energy meter

• Modbus communication for home automation and intelligent control

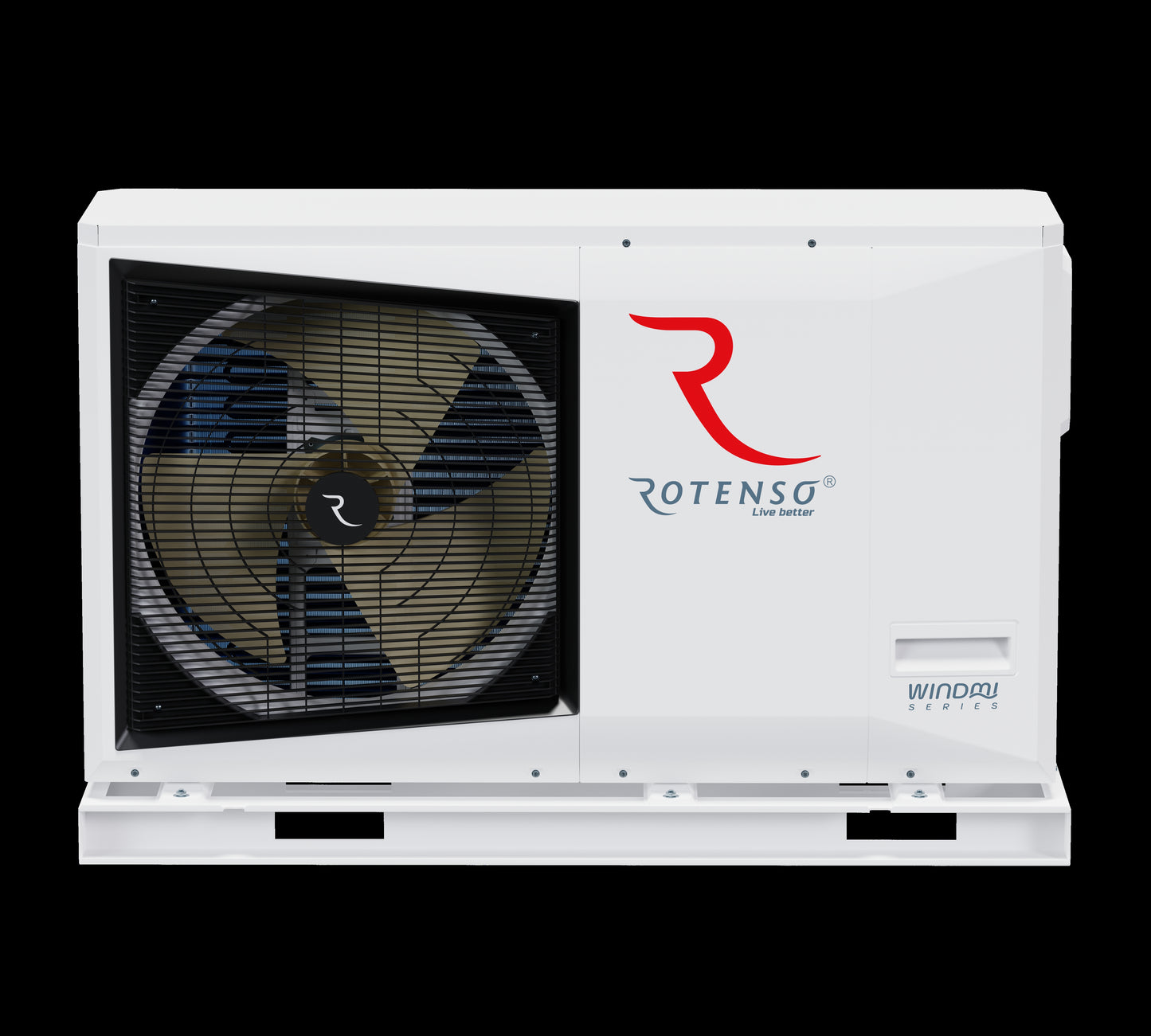

The Rotenso WINDMI WIM100X1 is a single-phase monoblock heat pump with a heating capacity of 10.0 kW (A7/W35). The unit boasts exceptionally high energy efficiency, with an A++ rating for a flow temperature of 35°C and an A++ rating for a flow temperature of 55°C. The SCOP is 4.98 (for a supply temperature of 35°C), making the pump extremely efficient.

TEMPERATURE RANGE

The water outlet temperature in heating mode ranges from 20°C to 62°C, while in hot water mode it ranges from 40°C to 62°C.

ADAPTATION TO EXTREME CONDITIONS

The heat pump is designed for operation in harsh weather conditions, even at outdoor temperatures as low as -25°C. To ensure reliable operation at temperatures below 0°C, the unit is equipped with a drip tray heater that prevents condensate from freezing and the outdoor unit from icing up. This eliminates the risk of damage to the fan and heat exchanger.

COMPRESSOR CRANKCASE HEATER

The Rotenso WINDMI WIM100X1 heat pump is equipped with a compressor crankcase heater that warms the compressor oil at temperatures below 0°C, enabling trouble-free start-up in adverse weather conditions. This solution ensures flawless heat pump operation and extends the compressor's service life.

ADDITIONAL HEATER

The heat pump is equipped with a 3 kW auxiliary heater, useful in emergency situations or during very low temperatures. These heaters support the economical operation of the unit while ensuring the longevity and reliability of the heat pump.

EASY INSTALLATION AND OPERATION

Rotenso WINDMI is easy to install, maintain, and use. The two-door housing design allows for convenient and quick access to all pump components. The pump's quiet operation was achieved through the use of a single-fan design and a dual-rotor DC compressor.

REMOTE CONTROL

The Rotenso WINDMI heat pump can be controlled via a mobile app or a modern wired controller for ease of use.

WARRANTY AND SERVICE

The device comes with a 2-year warranty, and buyers can rely on professional customer service. The manufacturer offers free commissioning of the pump by an authorized service center and access to a nationwide service network to ensure fast response times.

The Rotenso WINDMI WIM100X1 includes:

• outdoor unit,

• Wired control,

• control cable,

• Hot water tank sensor,

• plate heat exchanger,

• flow sensor,

• diaphragm vessel,

• water pump,

• safety valve,

• vent valve,

• Y-type water filter.

TECHNICAL DATA

• Model: Rotenso Windmi Monoblock 10 kW

• Type: Fully electric monoblock (outdoor unit)

• Heating output: 10.2 kW (at +7°C)

• Cooling capacity: 8.9 kW

• AREA:4.3

• Power supply: 230V

• Noise level: 50 dB(A)

• Refrigerant: R32 (0.85 kg)

• Working temperature: -25°C to +43°C

• Dimensions: approx. 1400 x 950 x 450 mm

• Weight: ± 110 kg

Important NOTE!

Installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certified contractors and special qualifications) must be provided. Failure to provide such proof will void any warranty and guarantee.

Subject to technical changes and errors! Subject to prior sale! Illustration similar!
