Product Description

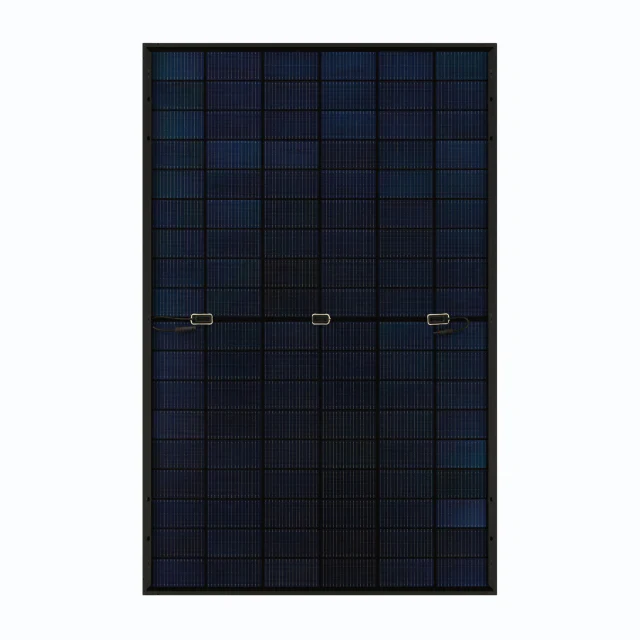

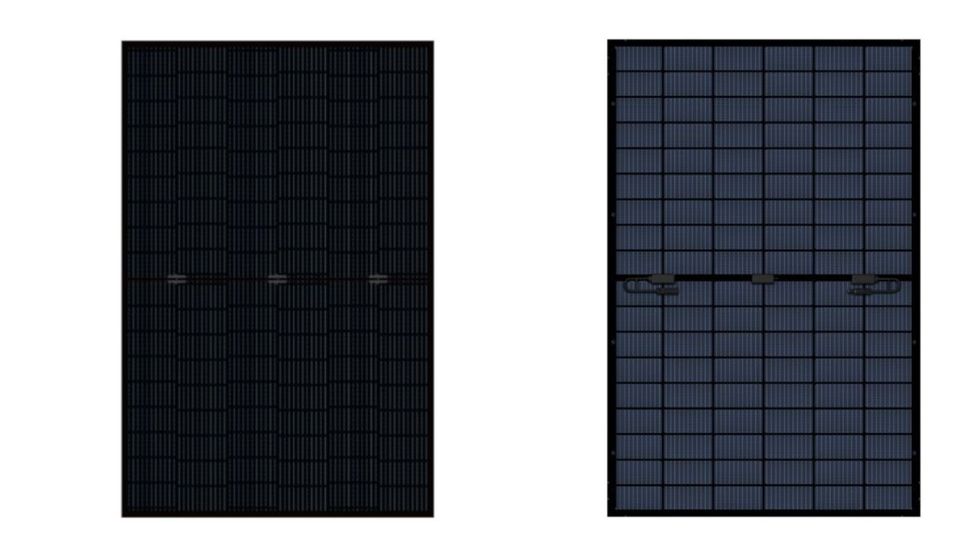

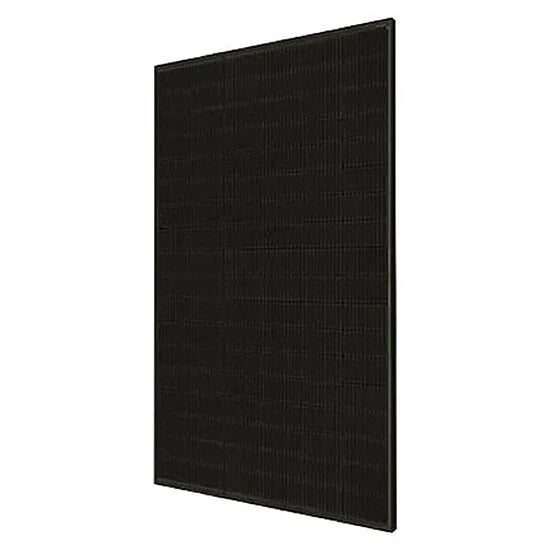

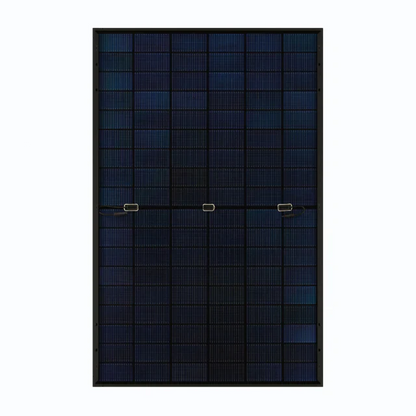

36X JAM54D41 - 445 Watt Full Black Solar Module Glass-Glass Bifacial N-Type Topcon
Scope of delivery = 1X pallet = 36X modules
JA Solar high-performance double-glass mono module 445 Wp - technology for maximum performance:
The JA Solar JAM54D41-440/LB series high-performance dual-glass mono module offers impressive performance and innovative technology for optimal energy generation. Featuring the latest SMBB n-type solar cell and a half-cell configuration, it sets standards in terms of output power, light-induced degradation, low-light response, and temperature coefficient.
Product features:
- Higher power generation for improved electricity production costs
- n-type with very low light-induced degradation
- Better response in low light
- Improved temperature coefficient
- Including cable (approx. 120 cm) and MC4 EVO2 connector system
- Sturdy anodized black aluminum frame
- High-performance solar cell with 16 busbars
- Glass thickness: 1.6 mm
Technical details:
- Type: JAM54D41-440/LB
- Dimensions (H x L x W): 30 x 1762 x 1134 mm
- Weight: 22.0 kg
- Number of cells: 108 (18 lengthwise x 6 crosswise)
- Cable length: 120 cm
- Rated power Pmax: 440 watts peak
- Power tolerance: ±5 watts
- Cell width: 182 mm, cell length: 91 mm
- Cell type: monocrystalline
- Frame type: Standard
- Nominal voltage Umpp: 32.29 V, Nominal current Impp: 13.47 A
- Maximum system voltage: 1500 V
- Short-circuit current Isc: 14.23 A
- Bifacial: Yes, Connector Type: MC4 Evo 2
- Open circuit voltage Uoc: 38.70 V
- Temperature coefficient Isc: 0.046 (%/K)
- Temperature coefficient Pmpp: -0.30 (%/K)
- Temperature coefficient Uoc: -0.26 (%/K)
- Certificate 2: Protection Class 2
- Frame color: Black
Guarantee:
- Performance guarantee (years): 30
- Product warranty (years): 25
- Guarantor: JA Solar
- Manufacturer article no. JAM54D41-440/LB
*Note VAT law
Note regarding Section 12 Paragraph 3 of the Sales Tax Act: regarding VAT exemption:
By placing an order, the buyer confirms that the requirements of Section 12 Paragraph 3 of the Value Added Tax Act (UStG) are met and that he is entitled to do so.
If the conditions according to the Sales Tax Act §12 para. 3 UStG are met, the tax rate is 0% VAT. The total price shown above does not change as a result.
In accordance with this assumption, a VAT rate of 0% is also shown on the invoice.
The buyer can revoke this acceptance or confirmation at the time of purchase and also immediately after purchase by simply sending us a message (e.g. via eBay message or email).
The buyer shall be liable to us for any VAT that may be payable to the tax authorities for his false statements, if and to the extent that we suffer damage as a result of his false statements.
For buyers who do not meet the requirements of Section 12, Paragraph 3 of the Value Added Tax Act (UStG), the stated price includes 19% VAT. This does not affect the total price shown above. In this situation, a VAT rate of 19% will be shown on the invoice, along with the corresponding VAT included.
“Extract from Section 12 UStG – here paragraph 3:
(3) The tax shall be reduced to 0 percent for the following transactions:
- the supply of solar modules to the operator of a photovoltaic system, including the components essential for the operation of a photovoltaic system and the storage units used to store the electricity generated by solar modules, if the photovoltaic system is installed on or near private residences, apartments, public buildings, and other buildings used for public welfare activities. The requirements of sentence 1 are deemed to be met if the installed gross capacity of the photovoltaic system, according to the market data register, does not exceed or will not exceed 30 kilowatts (peak);
2. the intra-Community acquisition of the goods referred to in point 1 which satisfy the conditions laid down in point 1;
3. the import of the items referred to in point 1 which meet the conditions laid down in point 1;
4. the installation of photovoltaic systems and storage systems used to store the electricity generated by solar modules, provided that the supply of the installed components meets the requirements of paragraph 1."
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
