All product information at a glance
Product Description

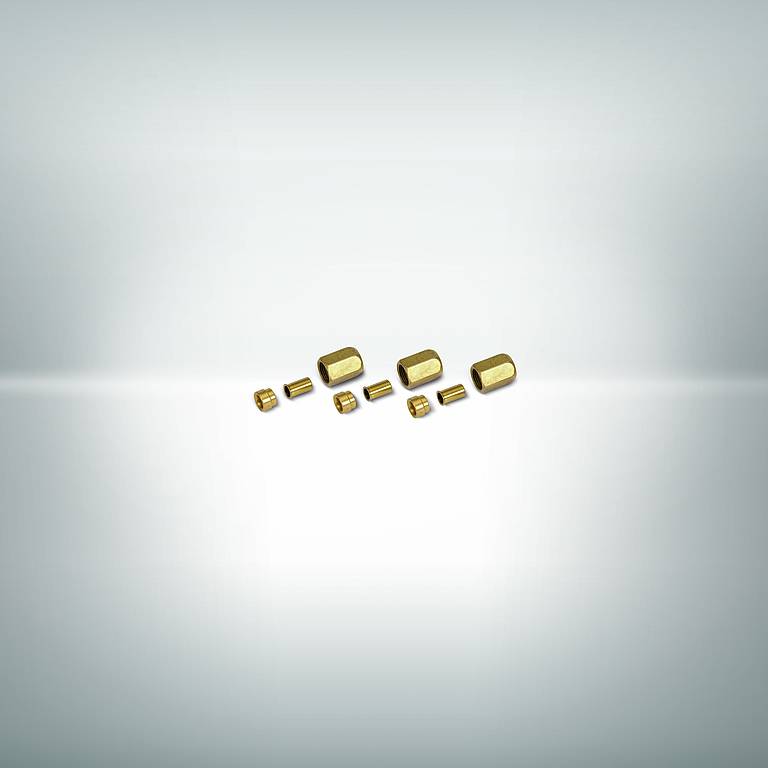

Armacell SAE fittings for refrigerant lines 1/4" + 3/8" + 1/2" for copper pipe, without flaring

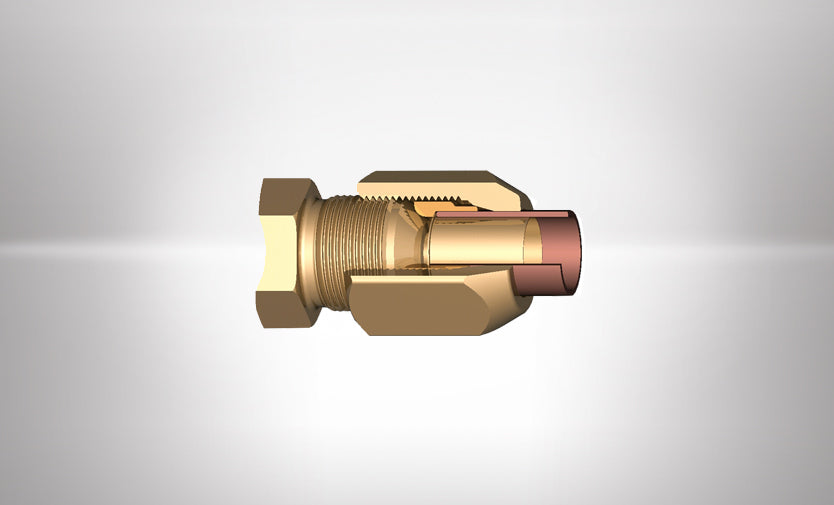

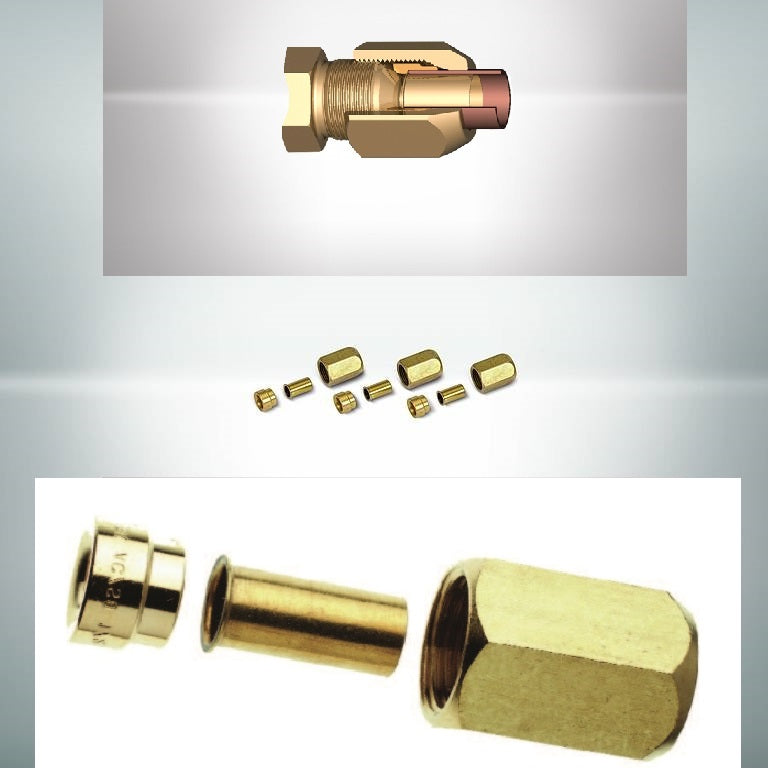

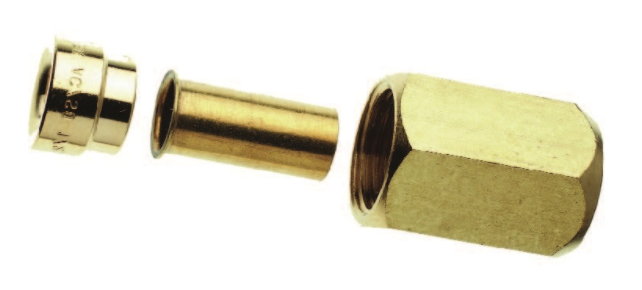

The Armacell SAE Flare Fitting System is a technically advanced, screwable brass connection system for refrigeration systems and heat pumps. The set consists of a union nut, a support sleeve, and a clamp ring.
The screw connection complies with the current standards and recommendations of the refrigeration industry (EN 378/1, EN 378/2).
Features & Benefits
Tight connection
- - no risk of leakage
- - high safety standards
Easy and quick installation
- - Soldering work and the associated safety measures are eliminated
- - No need to flare the pipes
- - no damage to the insulation by soldering flame
- - Marking of the union nut and the clamping ring
- - no environmental pollution by escaping coolant
- - Connection system does not need to be replaced after repairs or maintenance work
- - Even after repeated assembly and disassembly, the connection remains tight, no additional sealing ring is required
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
Technical Data

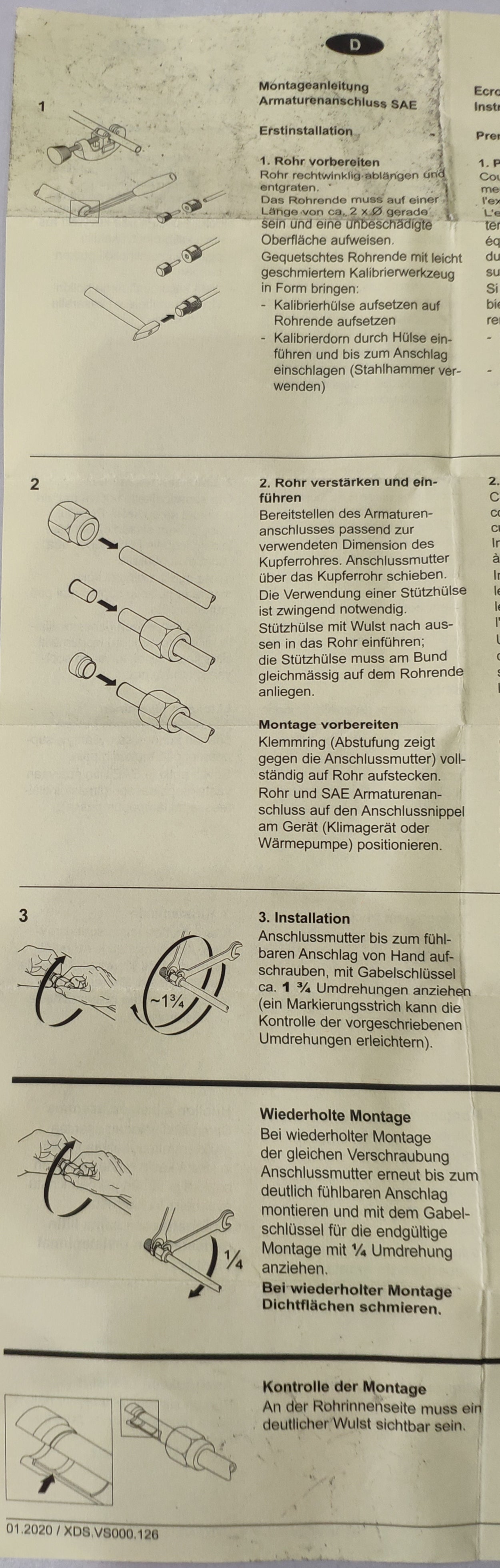

Installation
