Product Description
Condensate pump ASPEN SILENT+ MINI AQUA CONDENSATE PUMP ASP-1012-000
The thinnest condensate pump on the market, designed to
fit where others don't.
Aspen Pumps is one of the leading manufacturers of condensate pumps and accessories for the HVAC/R industry. As engineers, they understand the complexity of installations like no other.
That's why they've developed pumps that are best suited to each application and its environment. They offer professionals products for a perfect installation, from the pump itself to the piping and associated accessories.
FITNESS:
Wall units
Ideal for commercial and private applications where smooth running is important
Ideal for installation directly in the device
Description:
- Flow rate: 12 L/h max.
- Height: 10 m max. (at 6 L/h)
- Volume: 19 dB
- Max. water temperature: 40°C
- Mains voltage: 230V/50Hz
- Outlet: 6 mm

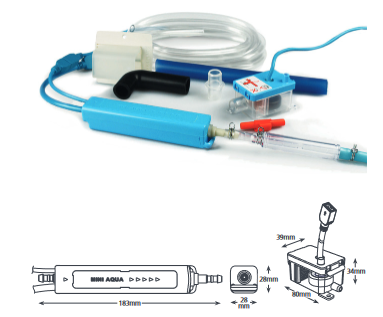

- Dimensions: 183x39x80 mm (LxWxH)
- Weight: 0.18 kg
- With external container
- Plug & play
- FEATURES
- can be installed directly in the unit
- max. water temperature: 40°C
- Mains voltage: 230V/50Hz
- with external container
- plug & play
- Unit: max. 16 kW

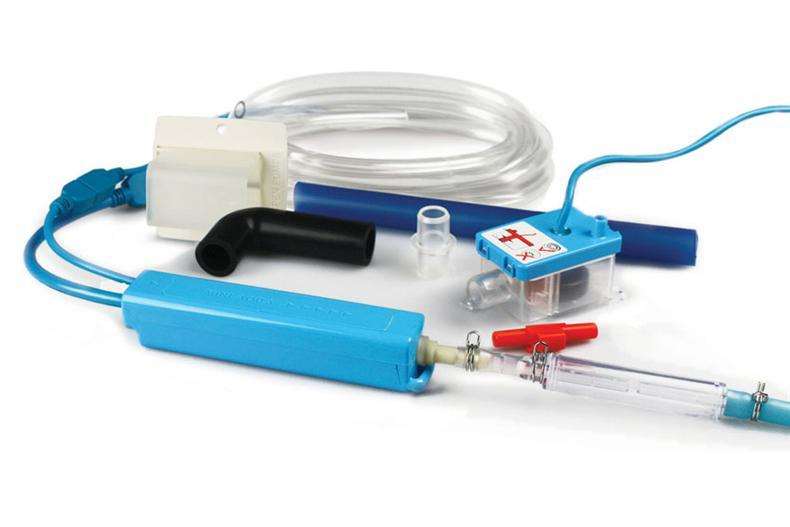

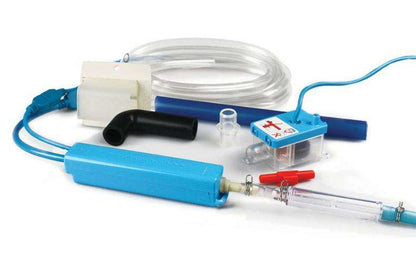

Scope of delivery:
- Silent+ Mini Aqua condensate pump
- 1.5 m detachable power cable
- Container (including filter, float, lid)
- Vibration damper with 1 m pressure hose
- vibration-damping bracket
- 150 mm PVC vent hose (6 mm ID)
- Anti-siphon valve
- 220 mm inlet hose (14 mm ID)
- Inlet adapter
- Mounting kit
- Installation manual
SILENT+ MINI AQUA CONDENSATE PUMP
Dimensions: 183X28X28MM
Item no.: ASP-1012-000
Weight: 0.2 kg
EAN code: 5414618372261
SKU code: 10103840000
Brand: Aspen Pumps – Xtra
Technical changes and errors excepted! Subject to prior sale! Illustration similar!
Technical Data
Installation
Notes
Manufacturer Information
Aspen Pumps Deutschland GmbH Tichauer Weg 30 40231 Dusseldorf Germany +49 0211 46 79 79 info@aspenpumps.de
