All product information at a glance
Product Description

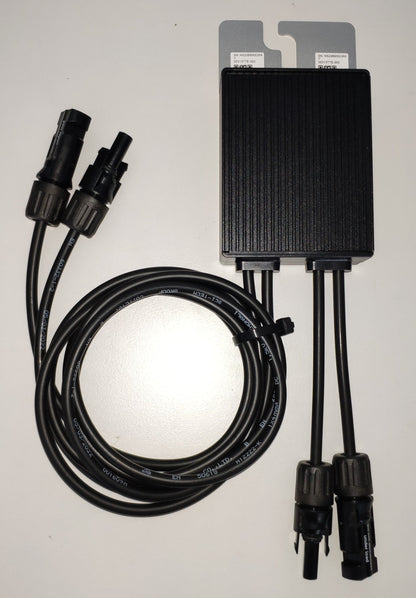

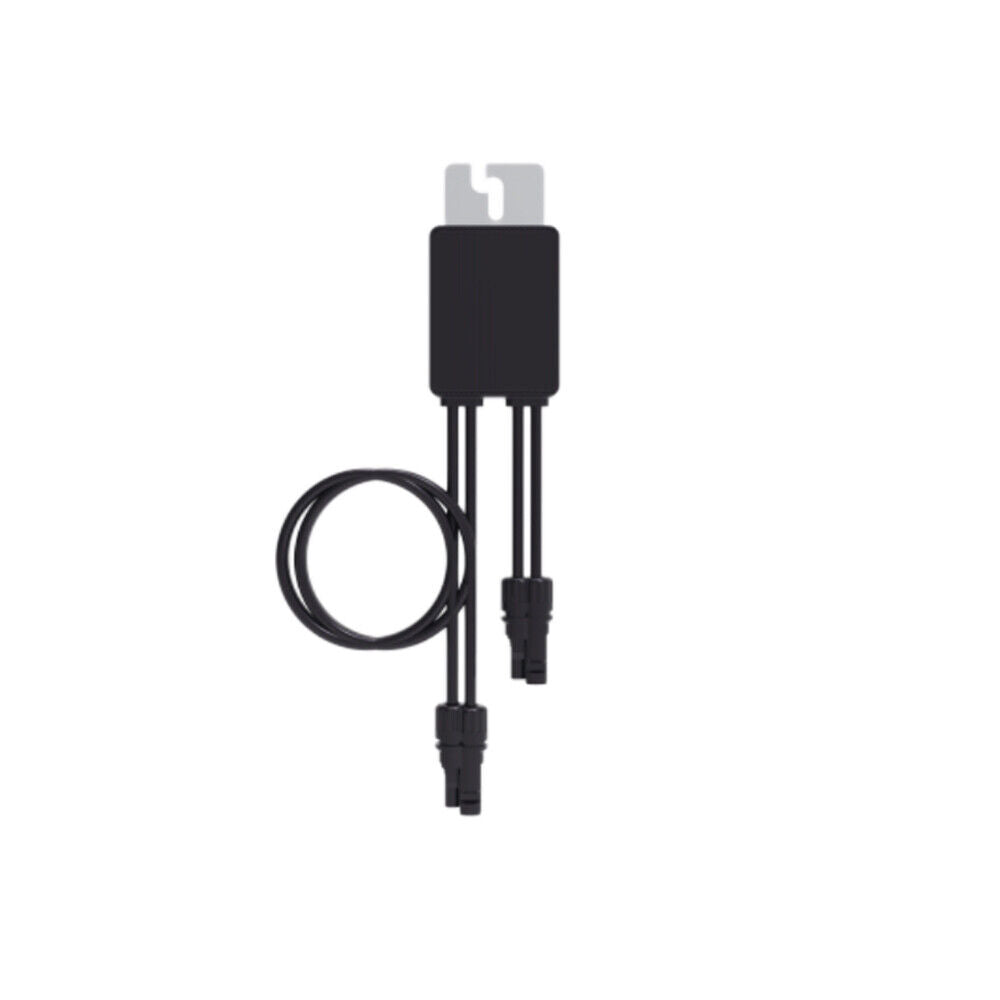

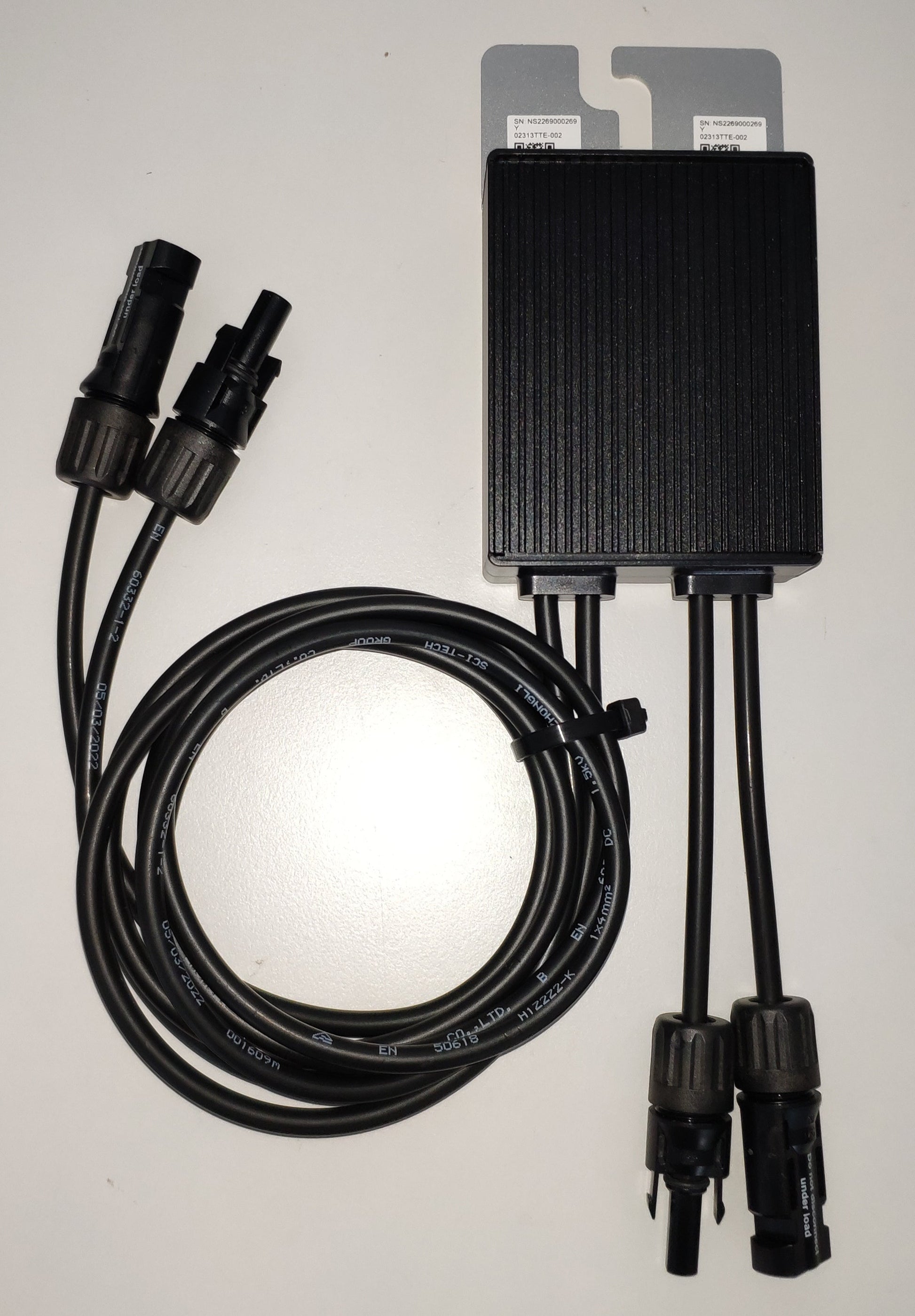

HUAWEI Smart Module Optimizer SUN2000-450W-P2 Solar PV Optimizer Controller
Why you should now choose a Smart SUN2000-450W-P2
Optimizer from Huawei.
The Huawei Smart SUN2000-450W-P2 Optimizer is designed to maximize the performance of a solar module. This allows the component to significantly increase the efficiency of the system. To achieve this, the manufacturer integrates modern technology. The Huawei Smart SUN2000-450W-P2 Optimizer measures 71 x 138 x 25 mm and weighs 550 g, making it easy to install on the module. For integration into the system, there are two Staubil MC4 input and one output connector. The cable is 1.2 meters long, allowing for installation flexibility.
On the technical side, the Huawei Smart SUN2000-450W-P2 Optimizer offers a nominal input power of 450 watts at an absolute input voltage of 80 volts, with a possible voltage range of 8 to 80 volts. The optimizer handles an input current of 13 A. The component complies with overvoltage category II. The extremely high efficiency of 99.5% (weighted efficiency 99.0%) is impressive. This underscores the power optimizer's claim to increase system efficiency. The component's adaptability is also noteworthy; the Huawei Smart SUN2000-450W-P2 Optimizer is a so-called one-fits-all element that is compatible with various modules. Pairing with the inverter is quick and easy.
Power1: 450 W
Overvoltage category: II
Max. efficiency: 99.5%
Weighted efficiency: 99.0%
Protection class: IP68
Huawei Smart SUN2000-450W-P2 Optimizer – General Specifications

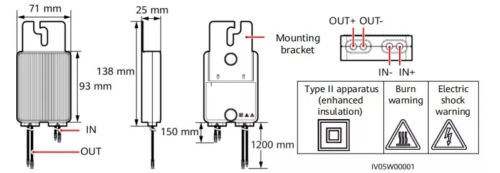

Dimensions (W x H x D): 71 x 138 x 25 mm (2.8 x 5.4 x 1.0 inches)
Weight (including cable): 0.55 kg
Installation part (optional): grounding plate, grounding clamp, PV module frame plate
Input connector: Staubli MC4
Output connector: Staubli MC4
Length of output cable4: 1.2 m
Operating temperature5: -40 ~ +85 ℃
Humidity range: 0% RH~ 100% RH
Protection class: IP68
Huawei Smart SUN2000-450W-P2 Optimizer – Input
Rated input power1: 450 W
Absolute maximum input voltage: 80 V
MPPT operating voltage range: 10 – 80 V
Max. input current: 14.5 A
Max. efficiency: 99.5%
Weighted efficiency: 99.0%
Overvoltage category: II
Huawei Smart SUN2000-450W-P2 Optimizer – Output
Max. output voltage: 80 V
Max. output current: 15 A
Output bypass2: Yes
Output voltage switch-off per optimizer3: 0 V
Output impedance at shutdown per optimizer: 1 k ohm ± 10%
Huawei Smart SUN2000-450W-P2 Optimizer – Output
Max. output voltage: 80 V
Max. output current: 15 A
Output bypass2: Yes
Output voltage switch-off per optimizer3: 0 V
Output impedance at shutdown per optimizer: 1 k ohm ± 10%
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
