Product Description

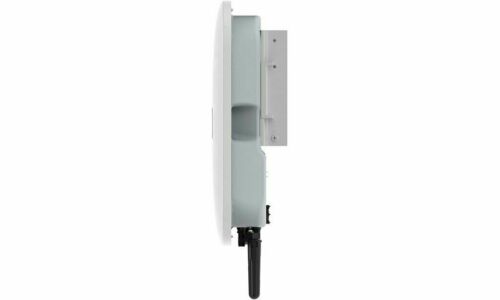

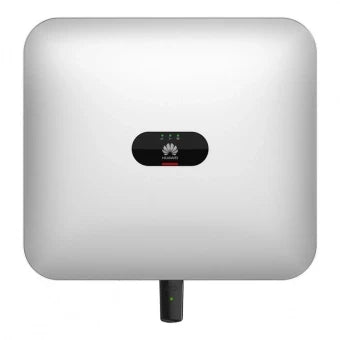

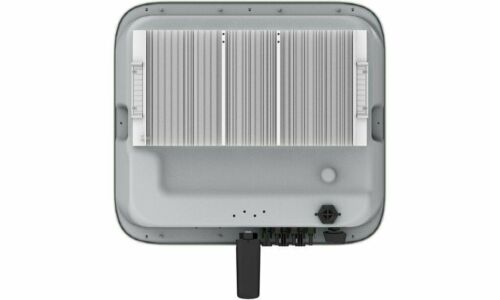

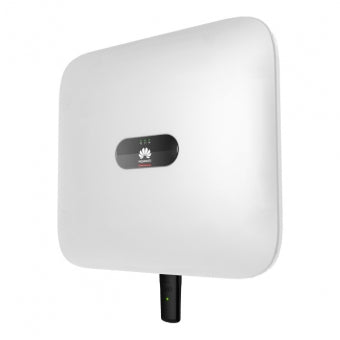

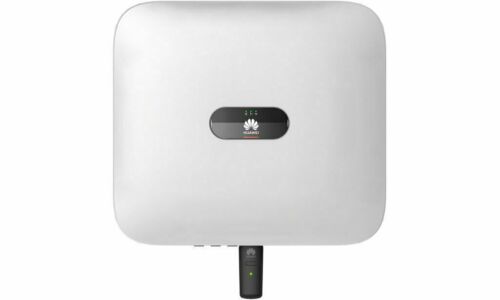

Hybrid Inverter Huawei SUN2000-10KTL-M1 10kW High Current - Latest Generation
Three-phase hybrid inverter with 10 kW rated output power and 10-year warranty.
Mains connection: Three-phaseRated
Output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+Rated
AC mains frequency: 50 Hz / 60 HzAdjustable
Power factor: 0.8 leading ... 0.8 laggingMax
Total harmonic distortion: ? 3
Backup power output: Yes (via Backup Box-5000)
Operating temperature range: -25 ~ +60 °C relative
Operating humidity: 0%RH?100
RHO operating altitude: 0 - 4,000 m (derating above 3,000 m)
Cooling: Natural convectionDisplay
: LED indicators; integrated Wi-Fi + FusionSolar APP communication
: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (optional)
Protection class: IP65DC
MBUS compatible optimizer: SUN2000-450W-P
SUN2000-10KTL-M1
DC
Power 15.0 KW
Maximum power 15.0 KW
Current 22.0 A
Current Max. 22.0 A
Voltage 600.0 V
Voltage Max. 1,100.0 V
MPPT 2
String Inputs 2
AC
Power 10.0 KW
Maximum power 11.0 KW
Current 16.9 A
Current Max. 16.9 A
Efficiency
Efficiency EU 98.1%
Dimensions
Length 166 mm
Width 525 mm
Height 470 mm
Weight 17 kg
Manufacturer's warranty
Product warranty 10 years
Huawei
Huawei is one of the most innovative PV companies ever.
True to its motto, the company is a leader in the digitalization of energy supply for a smart and sustainable world. Huawei's Network Energy product line focuses on ICT technologies and offers intelligent network energy products, solutions, and services.
Huawei's PV business has evolved from digital PV to internet-enabled PV and now to AI-enabled PV.
The company's technology is highly advanced and is supported by the increasing use of its IT and telecommunications expertise to deliver smart PV solutions.
The company's brand is known worldwide for quality and offers excellent value for money.
The company delivers scalable solutions for various market segments, from residential solar systems to commercial and industrial systems, and for each of these segments, the company offers its customers competitive levelized costs of electricity (LCOE).
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
Technical Data
Installation
Notes
Manufacturer Information
HUAWEI TECHNOLOGIES Deutschland GmbH Hansaallee 205 D-40549 Düsseldorf Germany Tel.: 00800 33 88 88 88 Email: eu_inverter_support@huawei.com
