All product information at a glance
Product Description

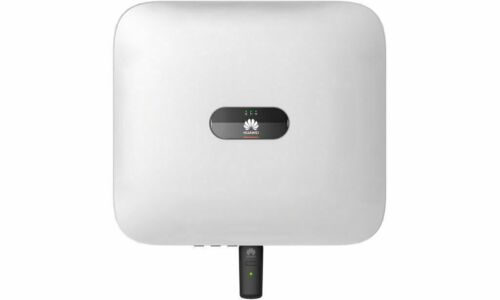

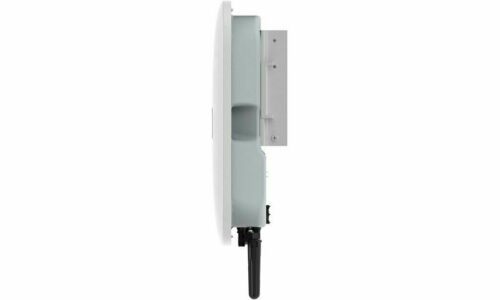

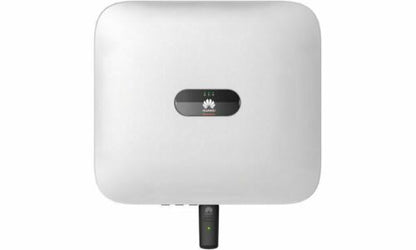

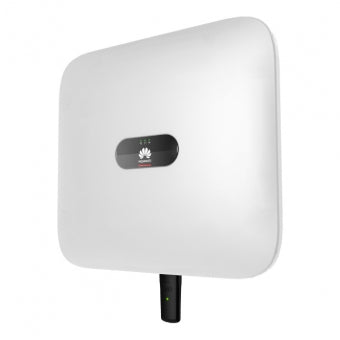

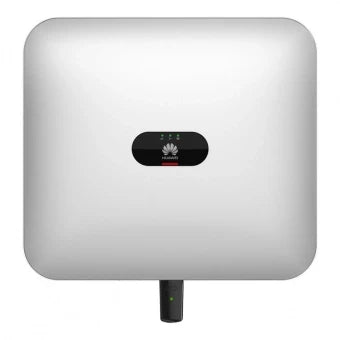

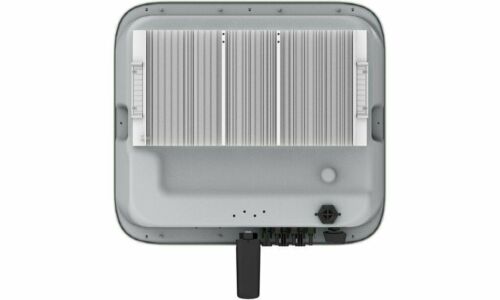

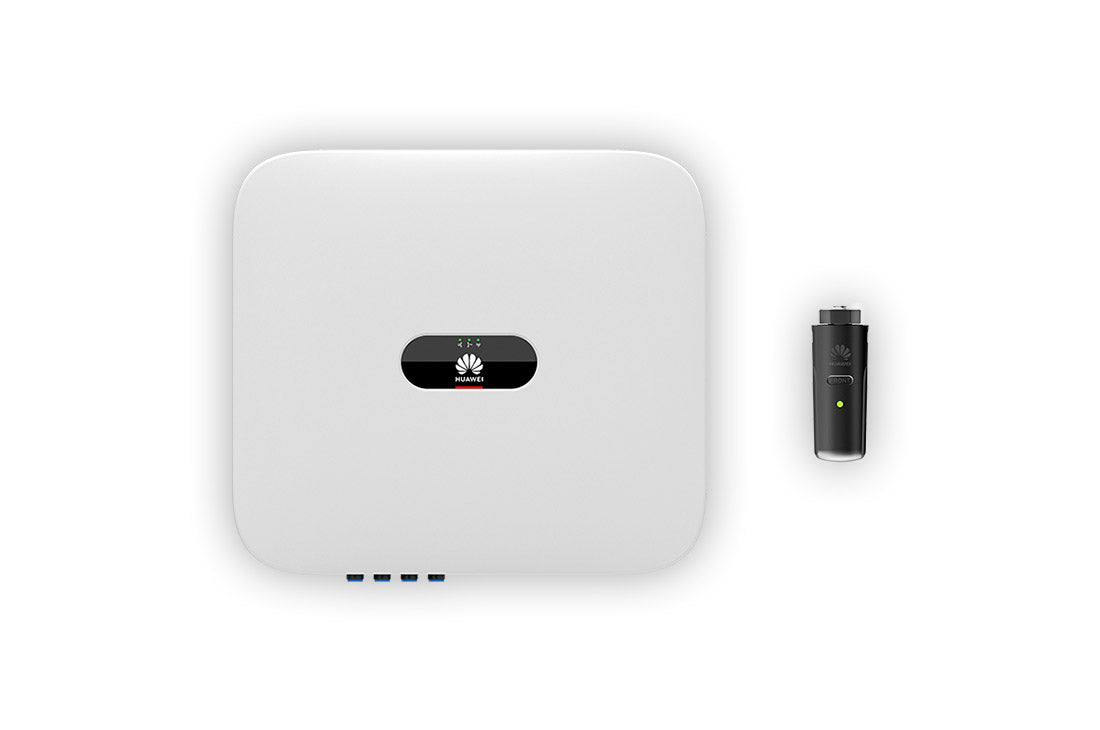

Product information "HUAWEI SUN2000 8KTL-M1 High Current"
The HUAWEI SUN2000 8KTL-M1 high-current hybrid inverter operates solar systems with up to 12 kWp DC power and is compatible with the HUAWEI LUNA2000 energy storage system. The inverter can provide up to 8 kW of discharge power across three phases and achieves a high European efficiency of 98.0%. The SUN2000 8KTL-M1 High Current communicates with the HUAWEI smart meter via RS485 to better manage energy flows in the household. The data is displayed in the HUAWEI Portal or the FusionSolar app.
The HUAWEI SUN2000 8KTL-M1 High Current can
Practical hybrid inverter for PV systems up to 12 kWp output
Integrated connection for high-voltage storage "HUAWEI LUNA2000"
8 kW discharge power on three phases
Communication via Wi-Fi, Ethernet and RS485
Compatible with HUAWEI SUN2000 450W-P power optimizer
High 98.0% European efficiency
HUAWEI SUN2000 8KTL-M1 High Current
Technical data:
Inverter type Hybrid-WR
DC power 12 kWp
DC voltage range 140 - 1,100 V
MPP Tracker 2
AC power 8 kW
Phases 3-phase
DC input voltage storage 600 - 980 V
Max. AC charging power storage 10 kW
European efficiency 98.0%
Emergency power No
Backup power Yes (1-phase) + Solar charging
Protection class IP65
Communication RS485 / WLAN / Ethernet
H x W x D (mm) 470 x 525 x 146.5
Weight 17 kg
Huawei
Huawei is one of the most innovative PV companies ever.
True to its motto, the company is a leader in the digitalization of energy supply for a smart and sustainable world. Huawei's Network Energy product line focuses on ICT technologies and offers intelligent network energy products, solutions, and services.
Huawei's PV business has evolved from digital PV to internet-enabled PV and now to AI-enabled PV.
The company's technology is highly advanced and is supported by the increasing use of its IT and telecommunications expertise to deliver smart PV solutions.
The company's brand is known worldwide for quality and offers excellent value for money.
The company delivers scalable solutions for various market segments, from residential solar systems to commercial and industrial systems, and for each of these segments, the company offers its customers competitive levelized costs of electricity (LCOE).
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
