All product information at a glance
Product Description

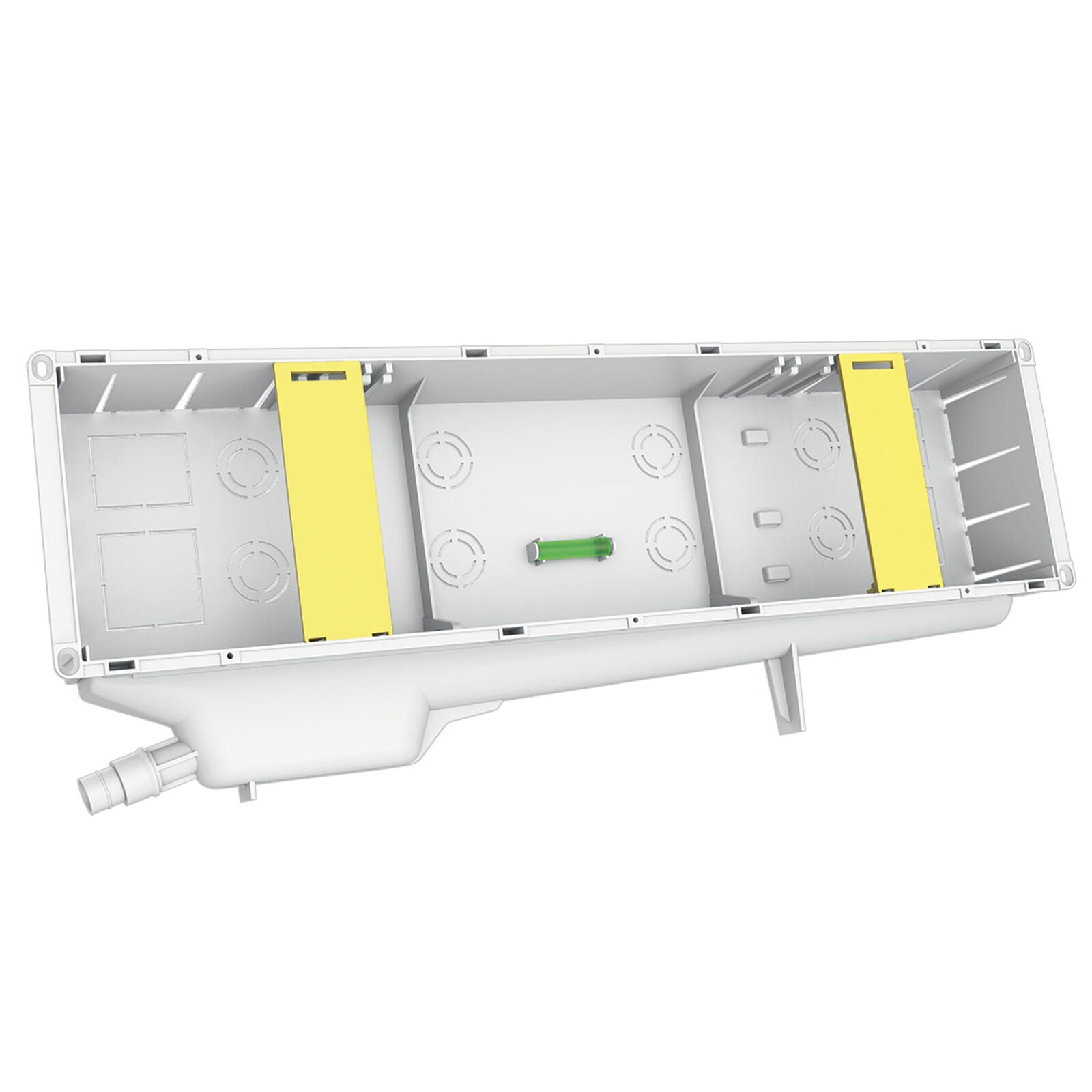

Installation box for air conditioning, flush-mounted box / wall box with integrated siphon condensate tray, flush-mounted condensate box
Flush-mounted installation box with condensate drain and odor trap (siphon)
Description
The flush-mounted installation box is made of impact-resistant polystyrene. Four different pipe inlets are possible. The front of the installation box features 14 mounting options for mounting the air conditioner. The back of the clamp-on cover has holes for screwing.
The funnel at the bottom of the installation box is rotatable and ensures free condensate drainage. This, in turn, prevents unpleasant odors. To protect the interior from dirt (plaster, paint, etc.) during installation, a simple cardboard protector can be attached to the front (included in delivery).
Characteristics:
For condensate hose Ø 16/18 and Ø 18/20
· Includes protective grille for dirt trapping
Prevents bad odors
Vibration-free installation
4 pipe entry options
· With built-in siphon
· Cardboard lid for plastering
· Plastic lid for drywall
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
