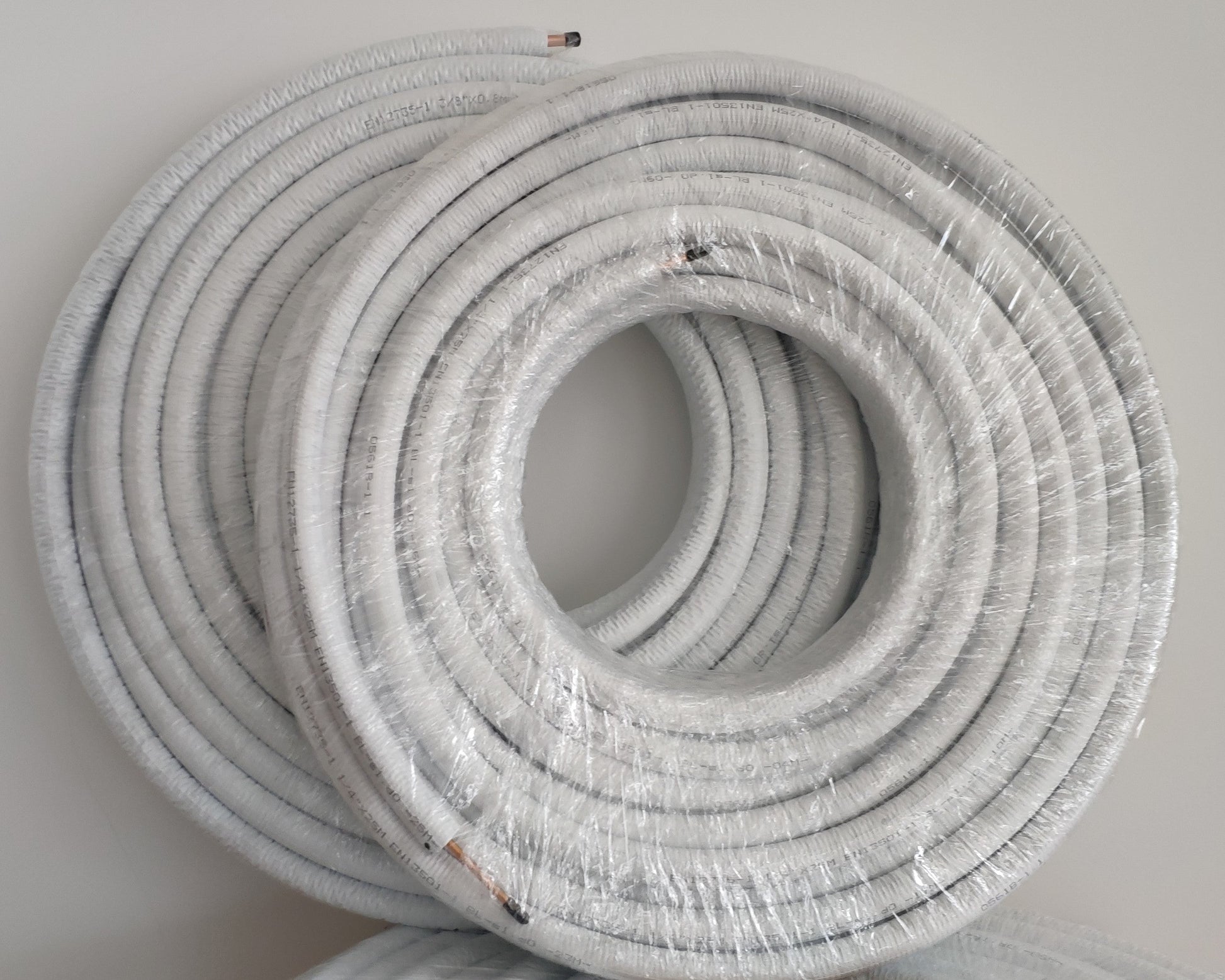

Refrigerant line 25m 1/4" + 1/2" insulated copper pipe EN12735 for air conditioner & heat pump

Refrigerant line 25m 1/4" + 1/2" insulated copper pipe EN12735 for air conditioner & heat pump

245,00 €
245,00 € 285,00 €
Taxes included.

Shipping method: standard

Delivery time: Approx. 2-3 working days for standard items, forwarding delivery approx. 10-15 working days

Free shipping in Germany for orders over €50. Other EU countries additional shipping costs .

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

Refrigerant line 1/4" + 1/2" 25m air conditioner copper pipe insulated R32 R410

We guarantee very high-quality refrigerant lines of the best quality; see for yourself.

Very high-quality refrigerant line, 20m in one piece.

The refrigerant line has been cleaned inside and out.

Our refrigerant line meets all requirements according to EN 12735:2016, as well as ASTM B280 and AS1571 and is suitable for all types of refrigerants.

Phosphorus-deoxidized soft copper tube DHP99.9 (C12200) (99.9% copper content)

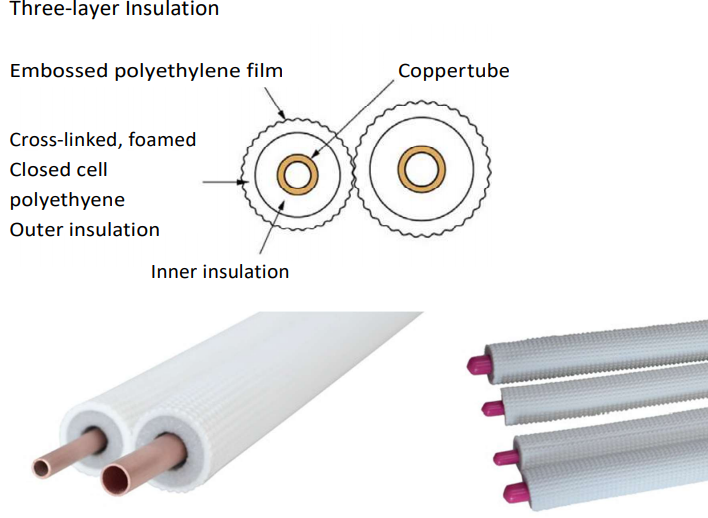

Insulation properties: Extruded and closed-cell soft polyethylene with a white outer UV-resistant polyolefin copolymer protective film.

Resistant to external chemical influences and ultraviolet radiation.

Suitable for refrigerants: R32, R410A, R134A, R404A, R407C, R407H, R507

Fire protection certification: M1, DIN B2 ULHF-1

Pipe thickness: 1/4" and 1/2" = 0.8mm

Insulation thickness = 9mm

Length: 25-meter roll

Operating temperature: -40°C to 105°C

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

Technical Data

Installation

Notes

Refrigerant leaks contribute to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.

Manufacturer Information

Clima-Air GmbH Wilhelmstr. 18 59269 Beckum info@clima-air.com
