Product Description

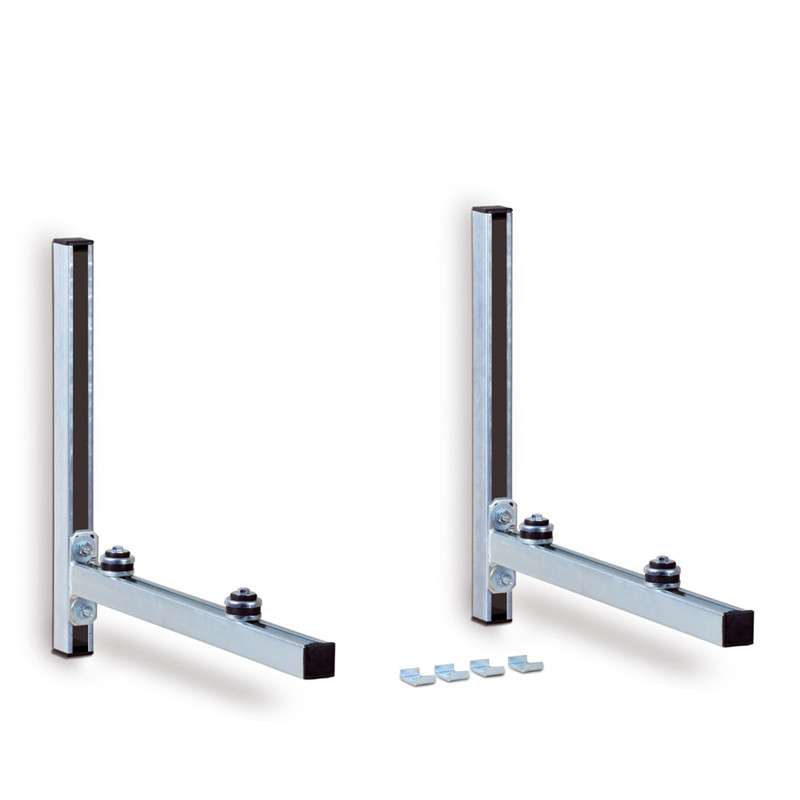

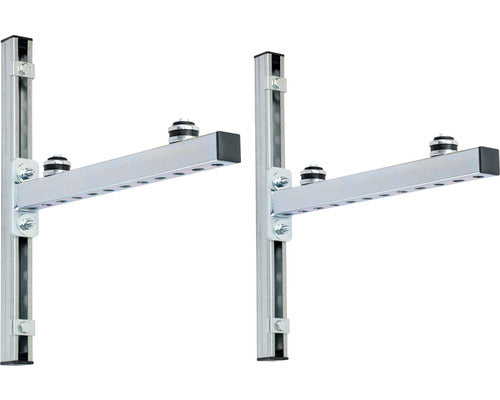

Bracket set 480mm wall bracket / wall mount for air conditioners and heat pumps / galvanized
Description:
Air conditioning/heating console set consisting of:
2x mounting rails for wall mounting, 2 rail brackets, 4 sound insulation buffers, 6 protective caps, 4 hammer-head screws, 4 sound insulation discs, 4 washers, 4 sliding nuts, 4 hexagon screws, 4 securing clips, 1 instruction manual
Article details:
Item type: Fastener
Design: Rail bracket

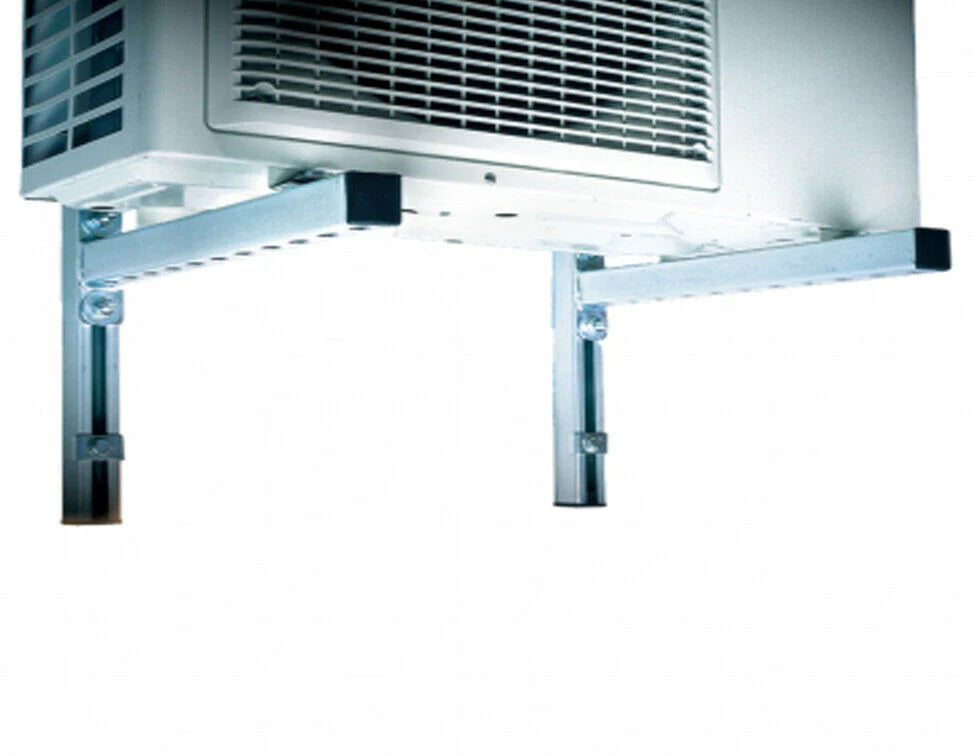

Application: mounting, wall mounting
Area of application: heating system
Profile: 38/40
Length: 480 mm
Material: steel
Material specification: galvanized steel
Material thickness: 2 mm
Max. load capacity: 1500N (150kg)
Contents: 1 piece
Included in delivery:
2 mounting rails 38/40 520 mm long,
2 rail brackets 38/40,
4 insulation buffers 43 x 11 mm,
6 end caps for profile 38/40,
4 hammer head screws M10/30,
4 insulation discs 8.5 x 28 mm,
4 washers 8.5 x 28 x 1 mm,
4 sliding nuts M8 for profile 38/40,
4 hexagon screws M8/55,
4 securing clips M10 for profile 38/40
Subject to technical changes and errors! Subject to prior sale! Illustration similar!

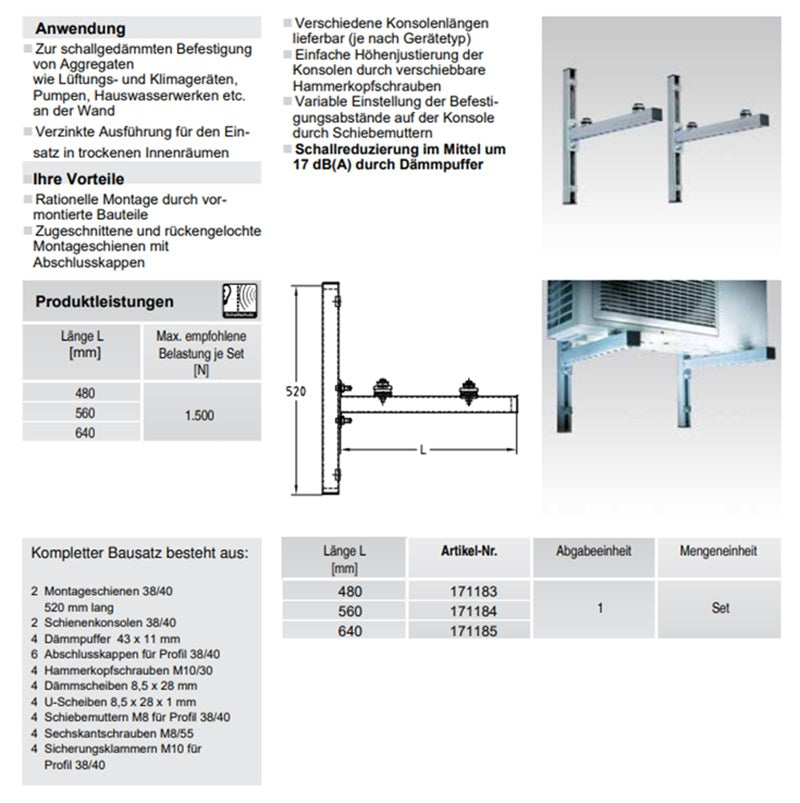

Technical Data
Installation
Notes
Manufacturer Information
UBB Umformtechnik GmbH Address Im Grund 1, Burgbernheim, 91593, DE Email info@ubb-gmbh.de Phone 49(0)98433080
