Console set 560mm wall console / wall bracket for air conditioning heat pump

Console set 560mm wall console / wall bracket for air conditioning heat pump

Regular price 82,50 €
82,50 € Sale price Regular price 91,50 €
Taxes included.

Free Shipping

Delivery time: Approx. 2-3 working days

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

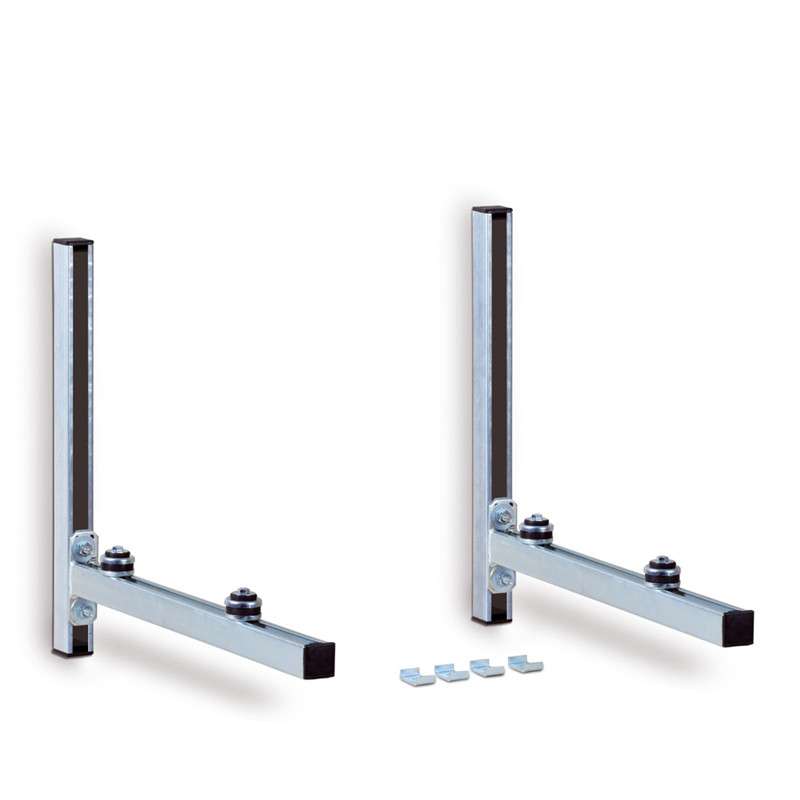

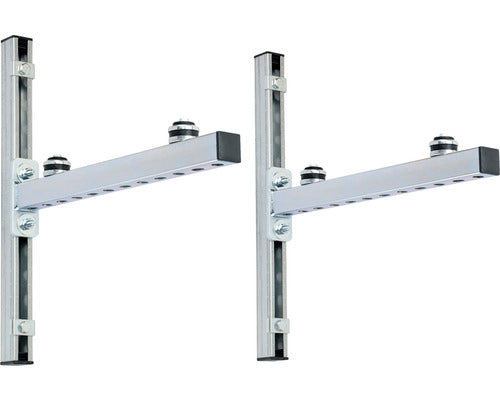

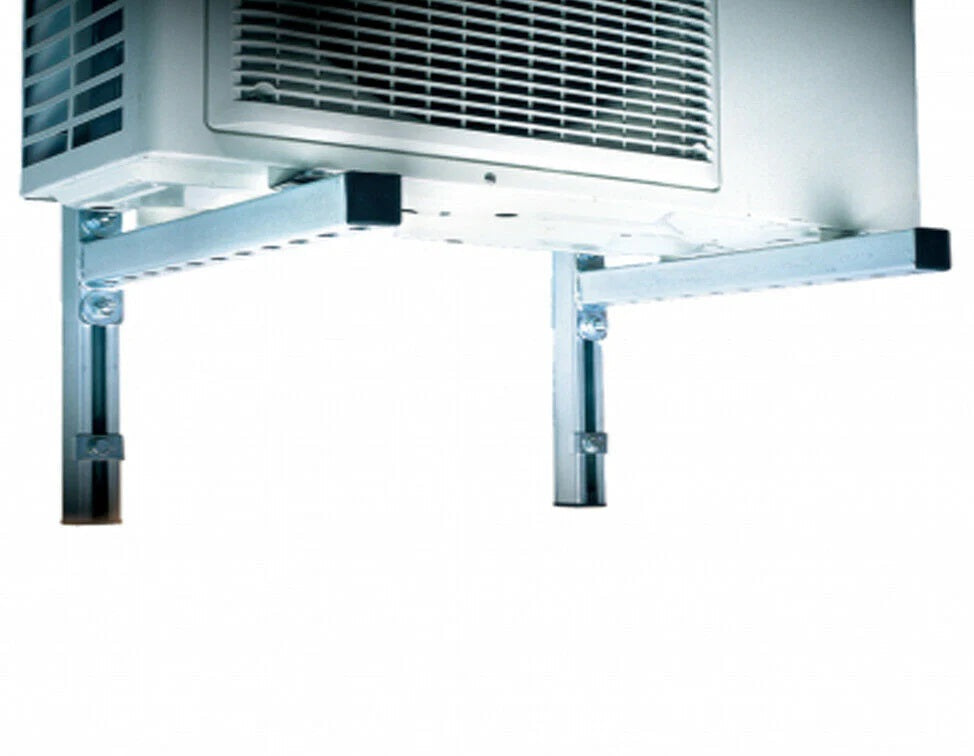

Bracket set 560mm wall bracket / wall mount for air conditioners and heat pumps / galvanized

Description:

Air conditioning/heating console set consisting of:
2x mounting rails for wall mounting, 2 rail brackets, 4 sound insulation buffers, 6 protective caps, 4 hammer-head screws, 4 sound insulation discs, 4 washers, 4 sliding nuts, 4 hexagon screws, 4 securing clips, 1 instruction manual

Article details:

Item type: Fastener
Design: Rail bracket
Application: mounting, wall mounting
Area of application: heating system
Profile: 38/40
Length: 560 mm
Material: steel
Material specification: galvanized steel
Material thickness: 2 mm
Max. load capacity: 1500N (150kg)
Contents: 1 piece

Included in delivery:

2 mounting rails 38/40 520 mm long,
2 rail brackets 38/40,
4 insulation buffers 43 x 11 mm,
6 end caps for profile 38/40,
4 hammer head screws M10/30,
4 insulation discs 8.5 x 28 mm,
4 washers 8.5 x 28 x 1 mm,
4 sliding nuts M8 for profile 38/40,
4 hexagon screws M8/55,
4 securing clips M10 for profile 38/40


Subject to technical changes and errors! Subject to prior sale! Illustration similar!

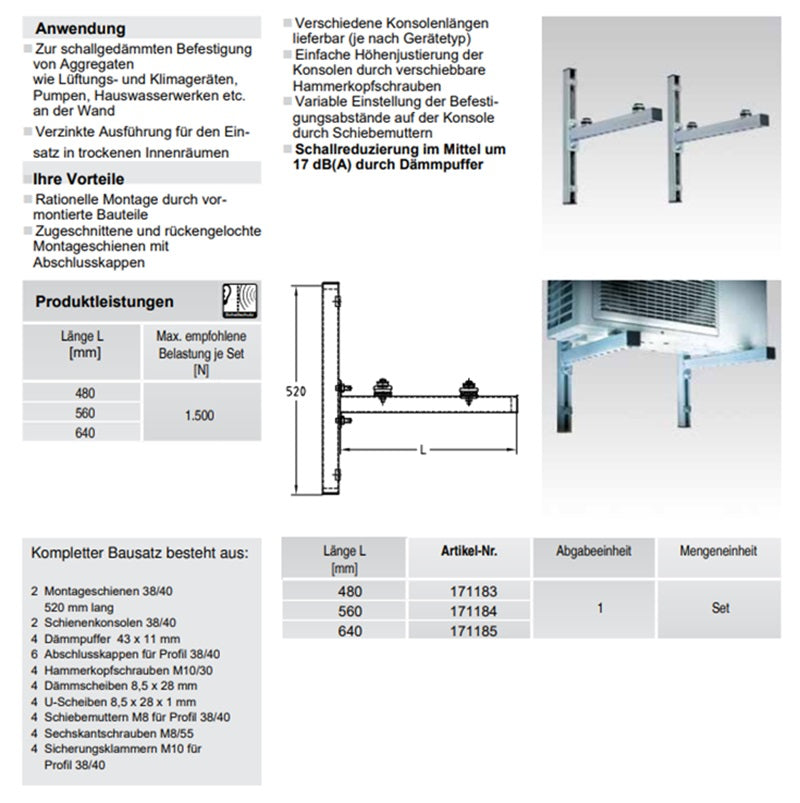

Technical Data

Installation

Notes

Manufacturer Information

UBB Umformtechnik GmbH Address Im Grund 1, Burgbernheim, 91593, DE Email info@ubb-gmbh.de Phone 49(0)98433080
