Product Description

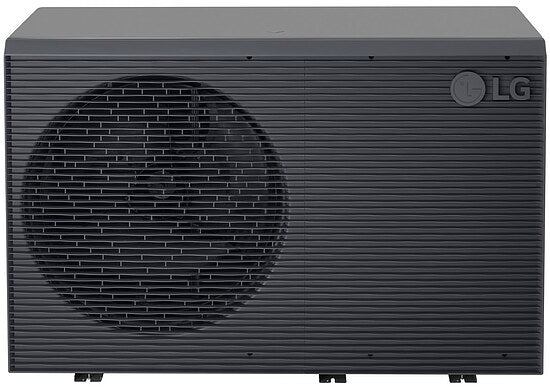

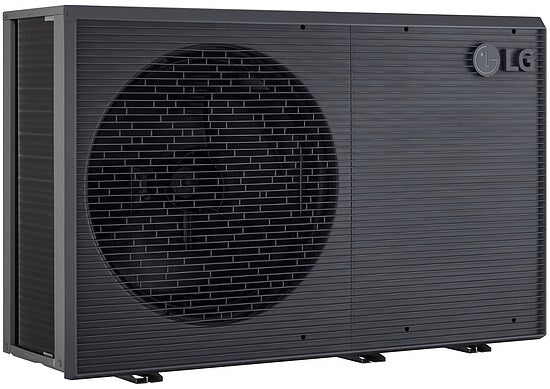

LG THERMA V R290 Monobloc 16 kW air-to-water heat pump outdoor unit HM163HF.UB60

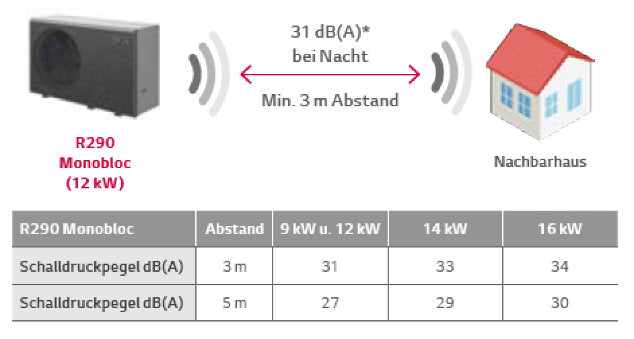

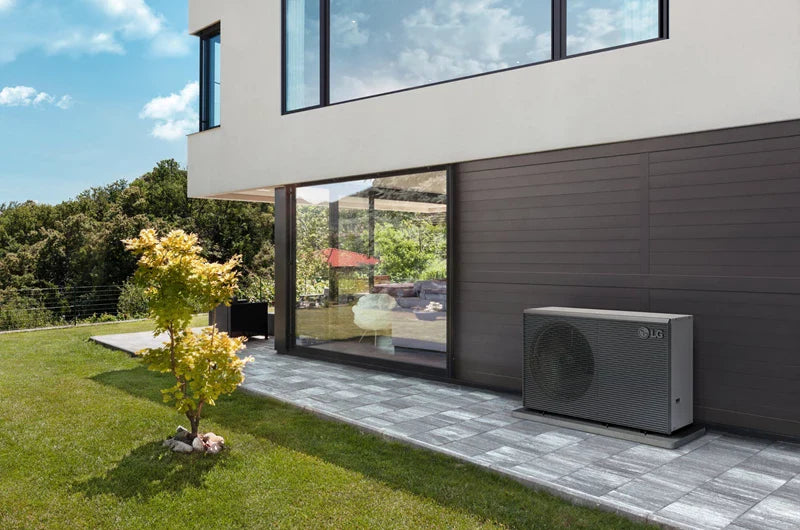

The THERMA V R290 Monobloc is a sustainable heating solution that uses the environmentally friendly refrigerant propane. Propane is a natural refrigerant that is neither subject to the F-Gas Regulation nor the PFAS ban, making it future-proof. Thanks to its new compressor, the R290 Monobloc achieves an outstanding energy efficiency rating of A+++ (55°C and 35°C) and a high flow temperature of 75°C. This makes these models ideal for renovations and new construction. The extremely low noise level also allows installation just 3 m from neighboring buildings (12 kW model, sound pressure level 31 dB(A) at night).

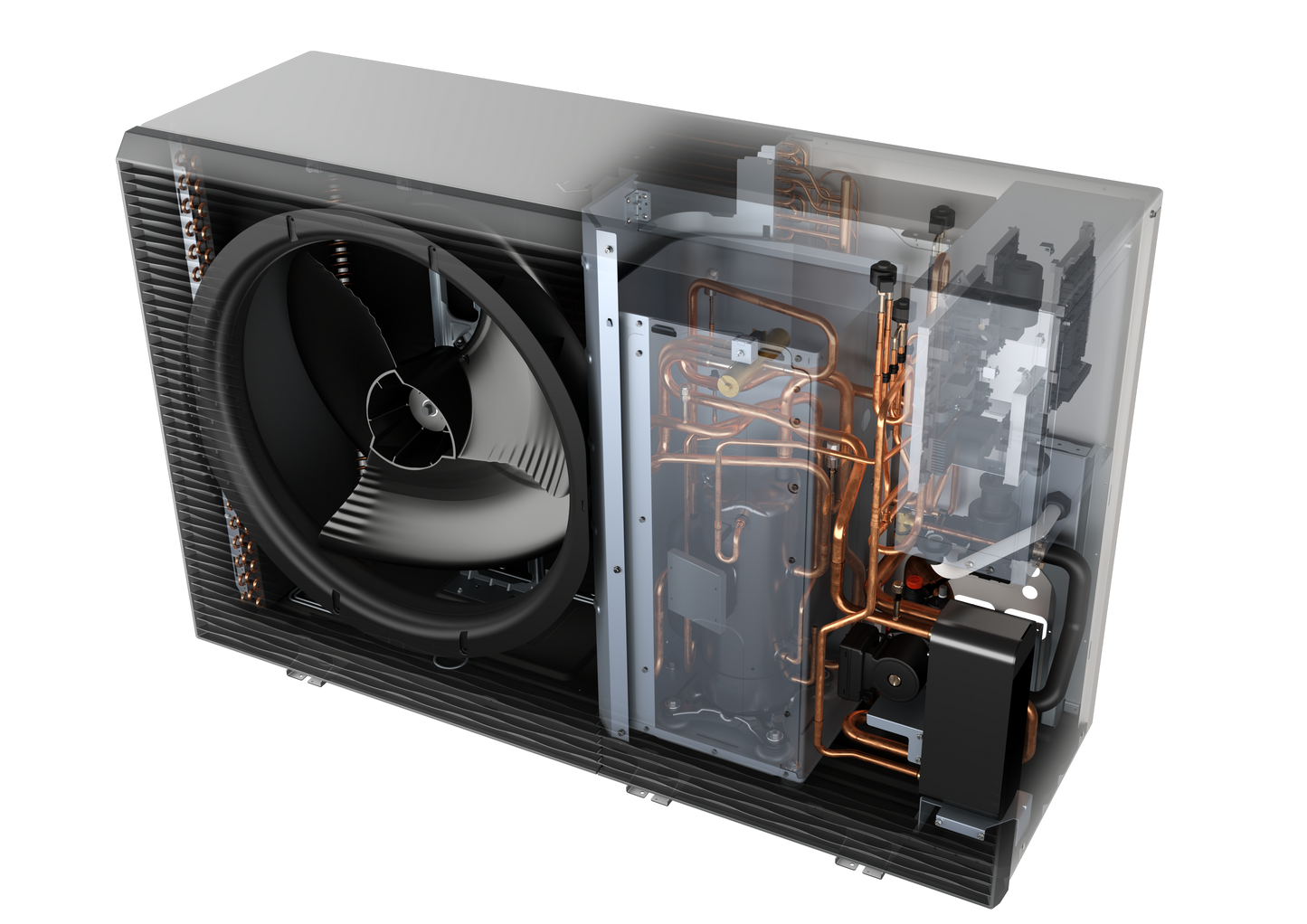

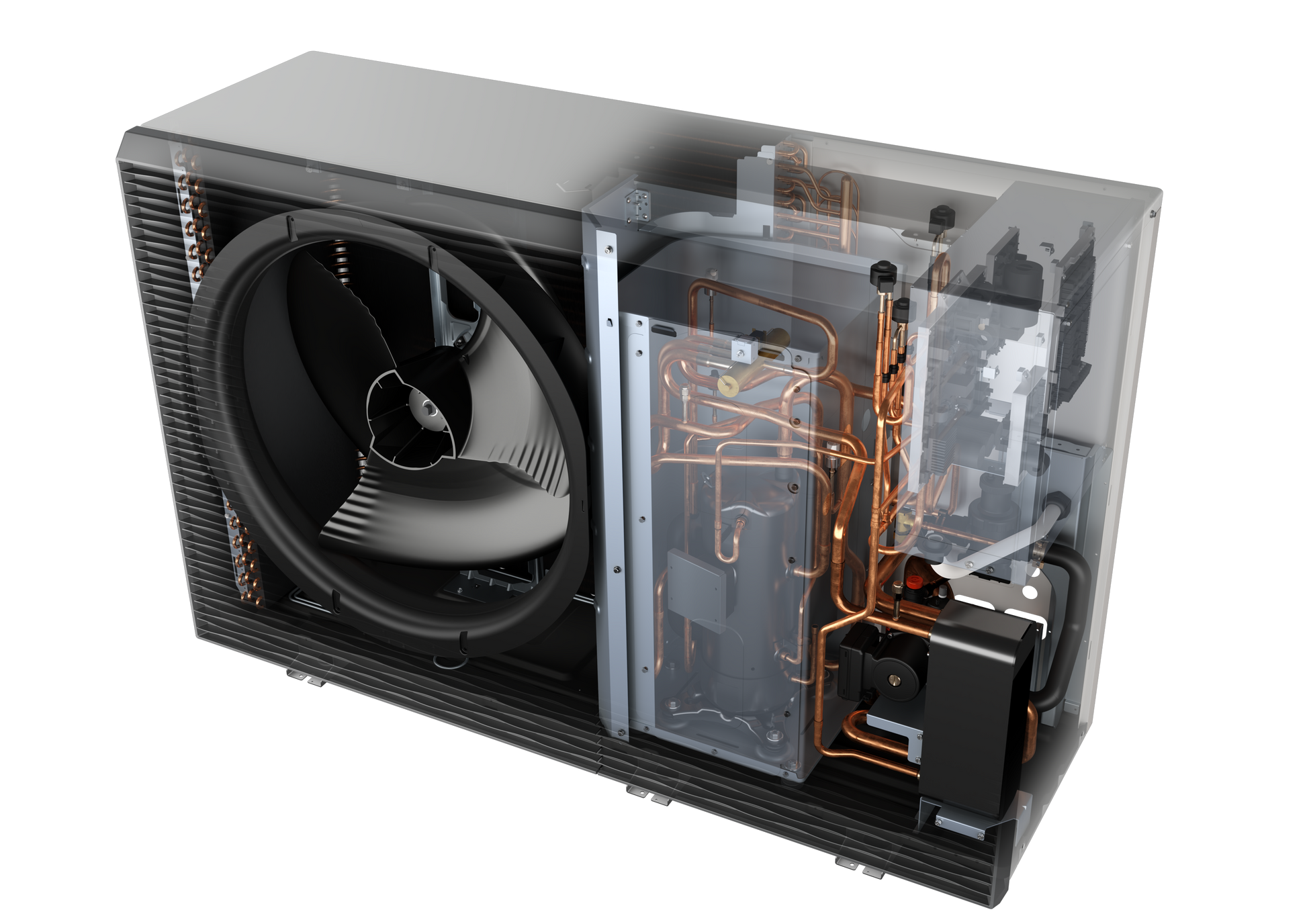

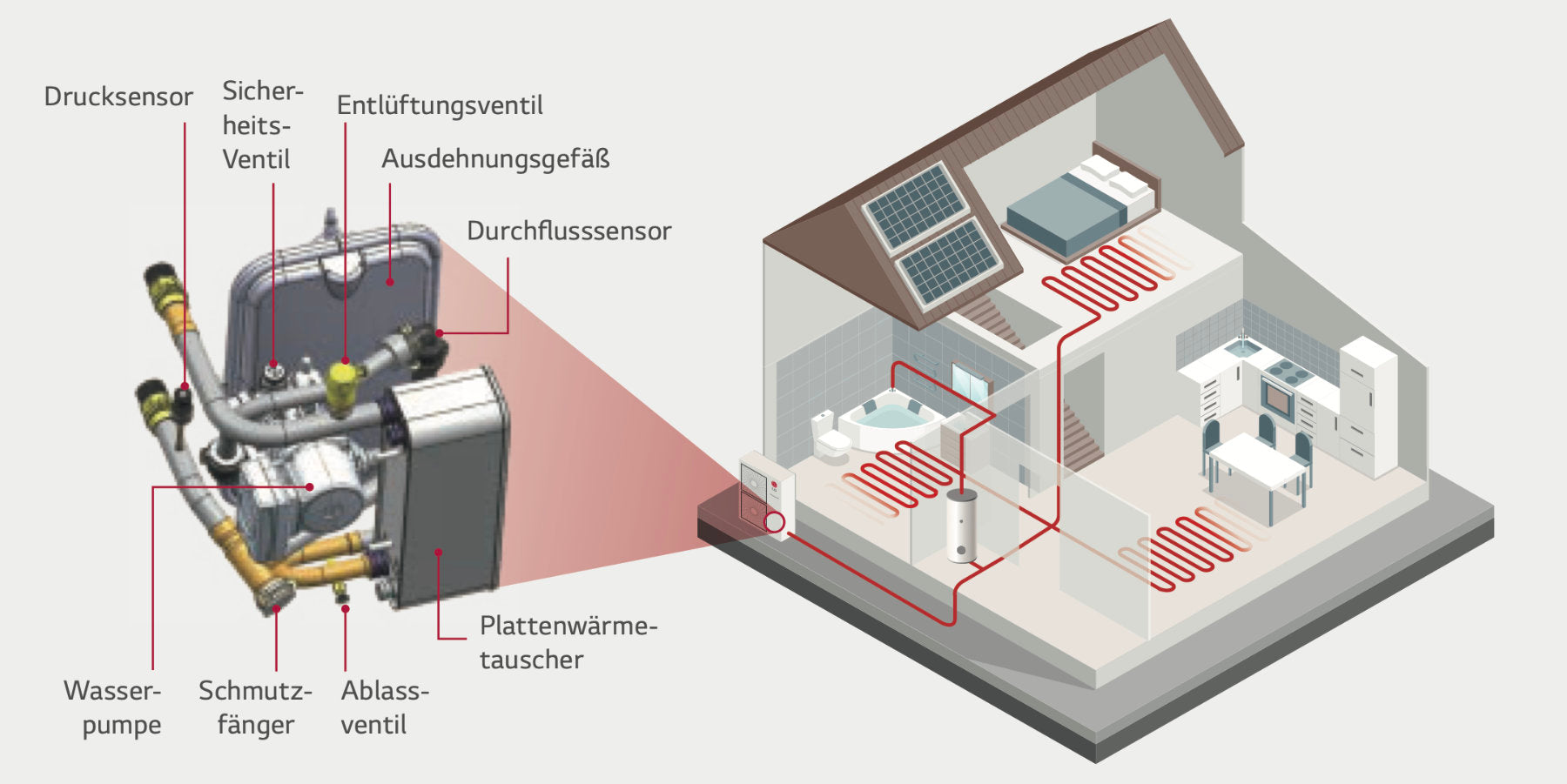

Because all hydronic components are integrated into the outdoor unit, installation and maintenance are simple. The THERMA V R290 requires only one fan, reducing its height to approximately 1 m and thus not obstructing the view. The three different indoor units offer the possibility of customized, variable solutions.
Features and details:
- Power range with 4 sizes from 9 to 16 kW for renovation and new buildings
- Natural refrigerant R290
- Low refrigerant quantity (1.2 kg)

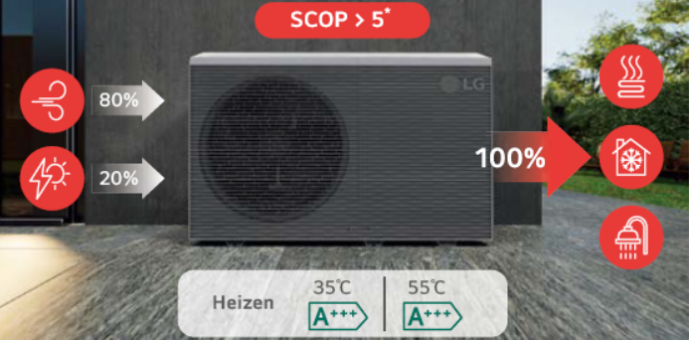

- High energy efficiency (SCOP >5 / A+++)
- Intelligent design for less maintenance and installation effort

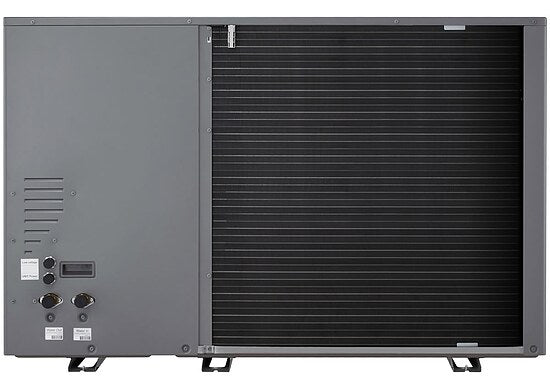

- Flexible connection options (pipe routing to the rear, optionally downwards)

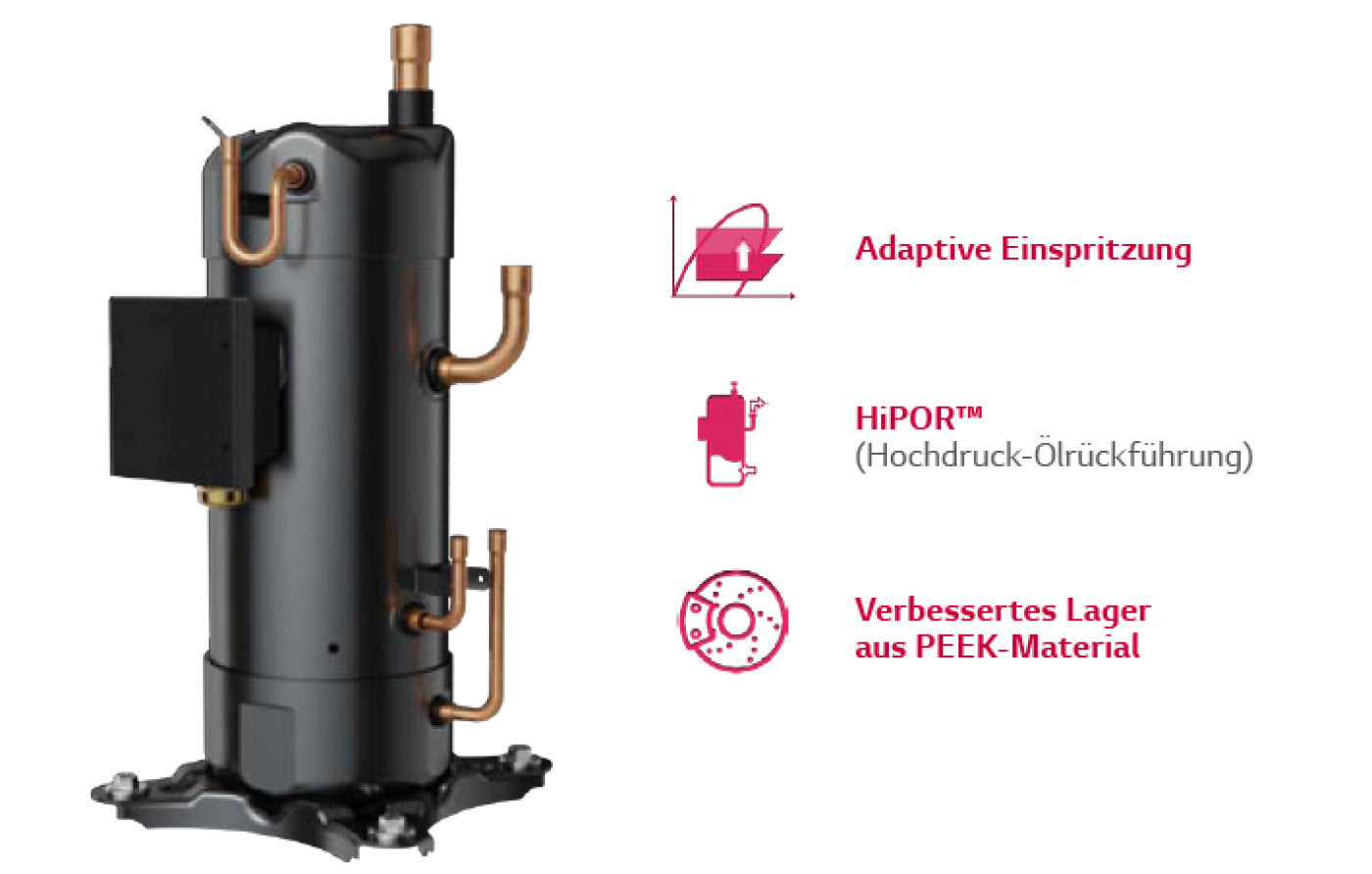

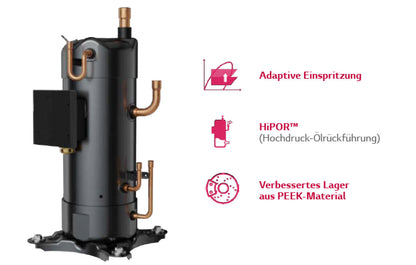

- Optimized heating performance and efficiency through adaptive injection technology
- One of the quietest models on the market
- Maximum flow temperature up to 75 °C
- Operating range down to –28 °C
- Optimized defrosting with different defrost modes
- Integrated communication interfaces (RS485 and Modbus)
- Control via ThinQ app and remote access by specialist company via LG BECON Cloud
Technical data:
- Flow temperature 35 °C
- SCOP: 5.11
- Seasonal space heating efficiency: 201%
- Seasonal space heating efficiency. Energy efficiency class (scale A+++ to D): A+++
- Flow temperature 55 °C
- SCOP: 3.92
- Seasonal space heating efficiency: 154%
- Seasonal space heating efficiency. Energy efficiency class (scale A+++ to D): A+++
- Heating rated power / rated power consumption / COP
- Air 7 °C / Water 35 °C: 16.00 kW / 3.72 kW / 4.30
- Air 7 °C / Water 55 °C: 12.00 kW / 3.63 kW / 3.30
- Air 2 °C / Water 35 °C: 14.50 kW / 4.15 kW / 3.49
- Cooling rated power / rated power consumption / EER
- Air 35 °C / Water 18 °C: 12.50 kW / 3.38 kW / 3.70
- Air 35 °C / Water 7 °C: 12.50 kW / 4.24 kW / 2.95
- Operating range (flow temperature)
- Heating: 15 - 75 °C
- Cooling: 5 - 27 °C
- Hot water: 25 - 65 °C
- Operating range (outside temperature)
- Heating: -28 - 35 °C
- Cooling: 5 - 48 °C
- compressor
- Type: Hermetic scroll compressor
- Quantity: 1 pc.
- refrigerant
- Type: R290
- GWP (Global Warming Potential): 3
- Pre-filled quantity: 1.2 kg
- t CO2 eq.: 0.003
- Temperature control
- Classification: V
- Contribution to efficiency: 3%
- Sound power level heating
- Nominal value: 52 dB(A)
- Silent mode: 51 dB(A)
- Sound pressure level (at 5 m) heating
- Nominal value: 30 dB(A)
- Silent mode: 29 dB(A)
- Electrical connection
- Voltage, phase, frequency: 400 V / 3 Ph. / 50 Hz
- Nominal operating current (heating / cooling): 4.8 A / 5.4 A
- Recommended circuit breaker: 16 A
- Water flow at 35 °C flow: 46.0 l/min
- Connections (supply/return): 1" external thread (according to ISO 7-1)
- Wiring mains cable (including ground, H07RN-F): 2.5 mm² x 5G
- Dimensions (W x H x D): 520 x 1019 x 1560 mm
- Weight: 181 kg
A notice:
- Requires indoor unit HN1639HC.NK0
- Manufacturer item no. HM163HF.UB60
Important NOTE!
Installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certified contractors and special qualifications) must be provided. Failure to provide such proof will void any warranty and guarantee.
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
