All product information at a glance
Product Description
Midea BreezelessE Single Split Wall Unit SET 3.59 kW MSCB1BU-12HRFN8-ME-Set R32 A+++/A++
Equipped with the latest intelligent learning algorithm, the Midea BreezelessE can proactively calculate various options for better air conditioning and energy efficiency. It offers a comprehensive, comfortable experience through Breezeless cooling, powerful heating, Air Magic+ sterilization, and over-the-air technology for updates.

Intelligent energy-saving technology
The latest intelligent algorithm can proactively detect changing environmental factors every 30 seconds and adjust the temperature for additional energy savings of up to 20%.

Breezeless cooling comfort
5013 miniature holes with an hourglass structure ensure gentle cooling of the air. 6.3°C within 10 minutes.¹

Fast heating as a heat pump
Instantly warms in cool weather down to -2°C. Heats the air to 10.4°C within 10 minutes.²
Excellent performance from Midea:
Fresh air quality with Midea filter technology
Technical data:
EAN: 4062852779721
Indoor unit type: Wall-mounted unit
BTU: 12200
Cooling capacity (min. - max.): 3.59 kW (1.38 - 4.31)
SEER 7.1
Heating output (min. - max.): 3.79 kW (1.08 - 4.39)
SCOP 4.2
Indoor unit: MSCB1BU-12HRFN8-ME
Width of indoor unit: 812 mm
Height of indoor unit: 299 mm
Depth of internal unit: 199 mm
Indoor unit weight: 9.3 kg
Power supply: 230 V / 1 Ph / 50 Hz
Nominal power consumption cooling/heating: 1114 / 1024 W
Rated operating current cooling/heating: 5.1 A
Air volume flow in cooling mode: max. 520 m³/h
Sound pressure level indoor unit min/max: 21 / 37.5 dB(A)
Sound power level indoor unit: 56 dB(A)
Condensate connection: 16 mm OD
Remote control included: Yes
Remote control type: Infrared remote control RG10(B)
Outdoor unit: MOX103-12HFN8-ME
Width of outdoor unit: 720 mm
Height of outdoor unit: 495 mm
Depth of external unit: 270 mm
Weight of outdoor unit: 22.9 kg
Power supply: 230 V / 1 Ph / 50 Hz
External power supply: 3 × 2.5 mm²
Sound pressure level outdoor unit cooling/heating: 56 dB(A)
Sound power level outdoor unit: 63 dB(A)
Pipe size fl. side: 1/4 inch / 6.00 mm
Pipe size gas side: 3/8 inch / 10.00 mm
Maximum total cable length: 25 m
Maximum height difference: 10 m
Refrigerant / GWP: R32 / 675
Refill quantity: 12 g/m (Applies from 6 meters, as the outdoor unit is pre-filled up to 5 meters)
Cooling operating limit: -15 °C to 50 °C
Heating operating limit: -20 °C to 24 °C
Functions: Comfort anti-cold air, Follow Me, Automatic cooling-heating operation, Frost protection, Auto-restart, Heating operation down to -25 °C, Sleep mode
Functions: Health Air Filter, Self Cleaning, Ionizer, Coated Heat Exchanger
Functions: Breezeless airflow, 3D airflow, position memory, 12 fan speeds
Functions: Control: Wireless Control, Timer

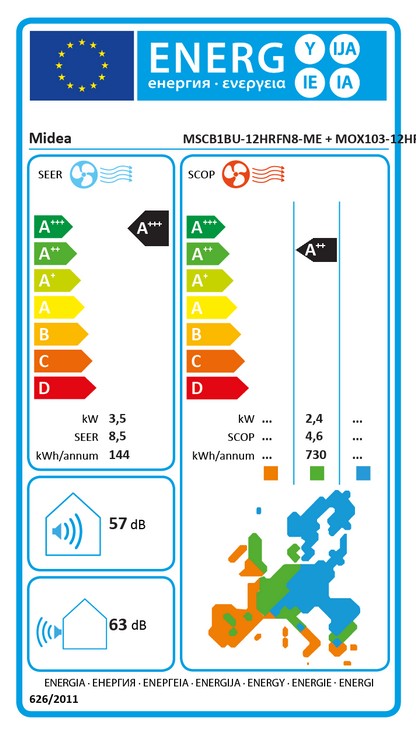

Energy Class – Cooling: A+++
Energy Class – Heating: A++
Cooling capacity in kW: 3.5
Energy efficiency cooling (at climate SEER) 8.5
Energy consumption (SEER / year): 144
Heating energy output G in kW: 2.4
Energy efficiency heating G (SCOP): 4.6
Energy consumption heating G (SCOP / year): 730
Indoor volume in dB 57
Outside volume in dB 63
Technical changes and errors excepted! Subject to prior sale! Illustration similar!
Technical Data
Data sheet | Download PDF |
---|
Installation
Notes
Manufacturer Information
Midea Europe GmbH Ludwig-Erhard-Straße 14, Eschborn, Hesse, 65760, DE info-meg@midea.com 0619690200
