Product Description

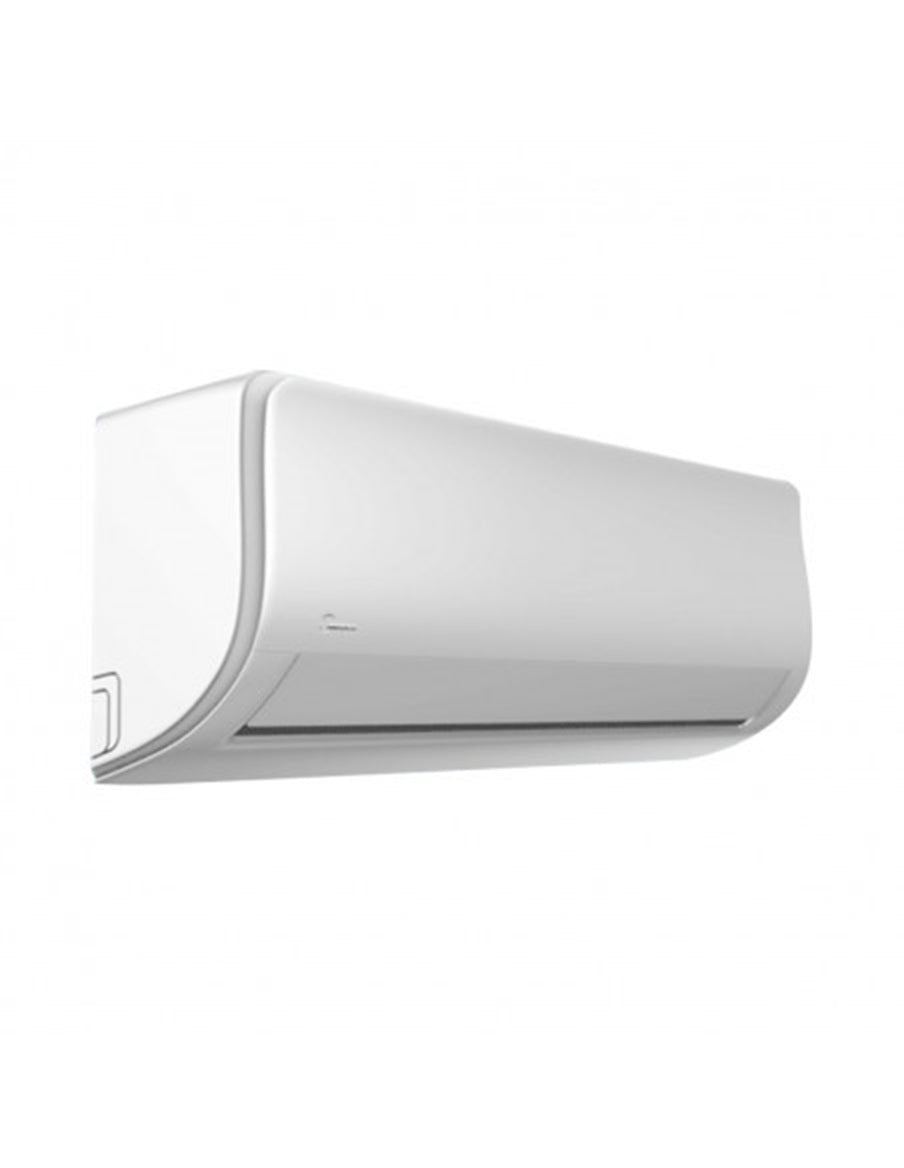

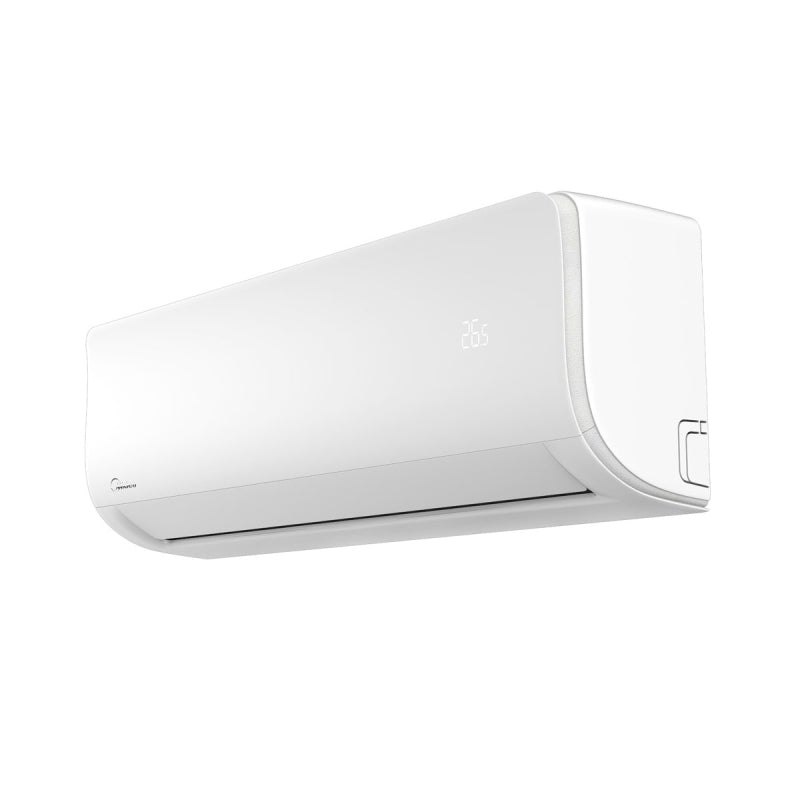

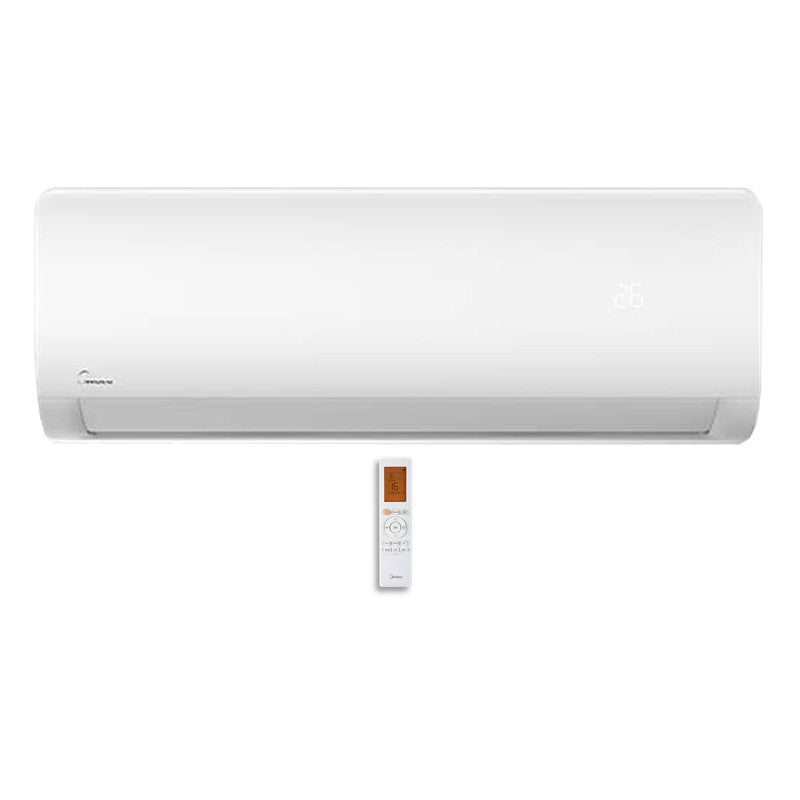

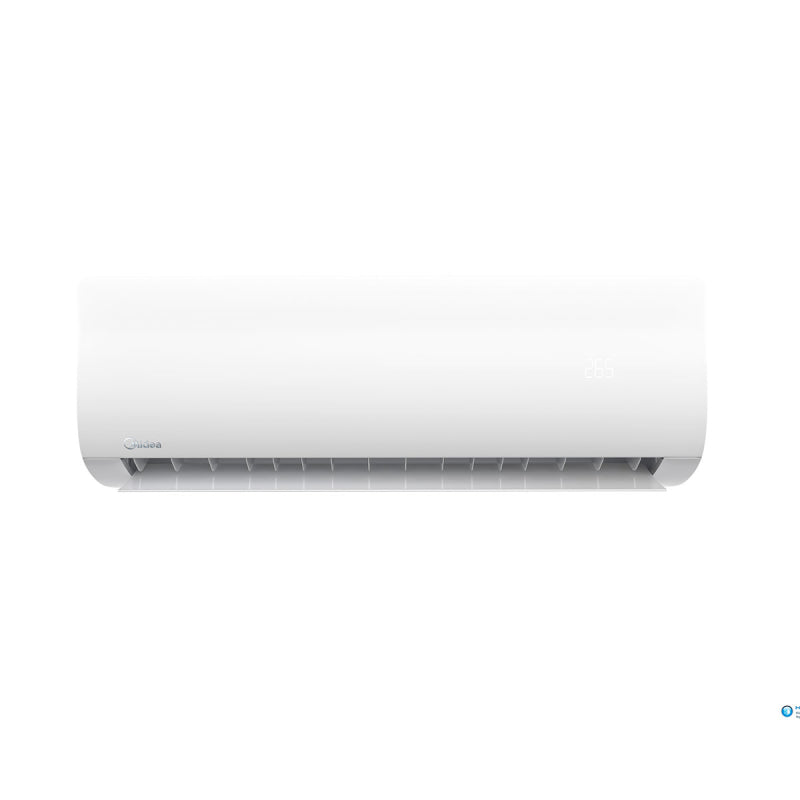

Midea Air Conditioner Wall Unit Xtreme Save Pro 7 kW MSAGDU-24HRFN8-ME WiFi
Midea wall-mounted unit MSAGDU-24HRFN8-ME Xtreme Save Pro WiFi - 7 kW - for room size 65 to 80 m² - R32
Quattro inverter technology
The Quattro Inverter technology consists of the use of linear control systems for the internal fan speed (selectable between 1% and 100%), the regulation of the temperature required in the room in units of 0.5 ° C and the stepless linear modulation of the compressor and the fan of the outdoor unit.
Eco function
This function allows you to limit the compressor speed to reduce the delivered power and significantly increase the specific efficiency of the product in cooling mode.
Refrigerant leak alarm
If the temperatures of the refrigerant circuit are irregular due to refrigerant leaks, this condition can be identified by a special error code (EC).
"Do not disturb" function
By pressing a button on the remote control, you can mute all audible warnings, turn off the indoor unit display, and reduce the indoor fan speed to a speed below the normally selectable idle speed.
GEAR function
The devices are equipped with the gear function, which allows you to limit the maximum speed of the compressor and the resulting power, thereby significantly improving the specific efficiency of the product.
Follow-Me function
The ambient temperature can be detected by a special sensor in the infrared control for more accurate detection.
Diamond Design outdoor unit
Midea's outdoor units feature an innovative diamond-cut design, with no sharp edges and no visible screws on the front panel. The air outlet grille, inspired by the Archimedes screw, incorporates a redesigned fan to minimize noise. The T-shaped rib on the top provides greater strength and stability.
PLEASE NOTE: The product complies with environmental certification ISO 14001
Technical data
Brand: MideaIndoor unit dimensions | mm | H x W x D: 336 x 1083 x 244
Weight in kg: 13.6
WEEE Reg. No. DE: 55703080
Indoor unit type: Wall-mounted unit
BTU: 24000
Cooling capacity (min. - max.): 7.0 kW (1.55 - 8.21)
SEER 6.4
Heating output (min. - max.): 7.3 kW (1.55 - 8.21)
SCOP: 4.0
Power supply: 230 V / 1 Ph / 50 Hz
Rated power consumption cooling/heating: 2402 / 2130 W
Rated operating current cooling/heating: 10.5 A
Air volume flow cooling mode: max. 1090 m³/h
Sound pressure level indoor unit min/max: 34.5 / 46 dB(A)
Sound power level indoor unit: 62 dB(A)
Condensate connection: 16 mm OD
Remote control included: Yes

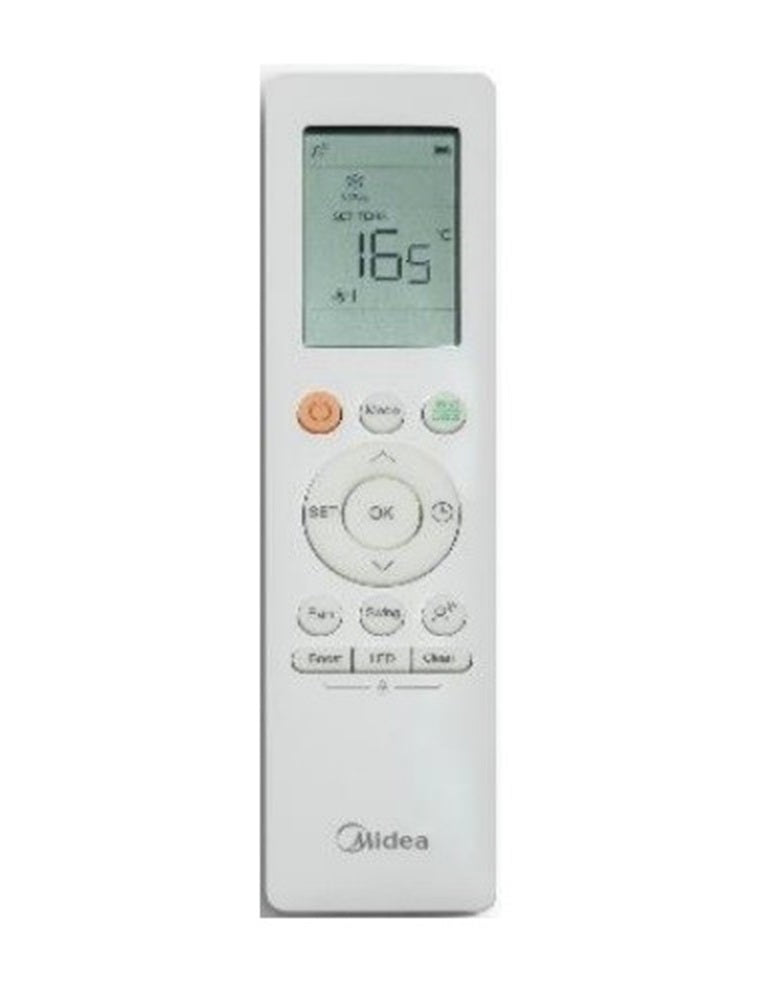

Remote control type: Infrared remote control
Pipe size fl. side: 3/8 inch / 10.00 mm
Pipe size gas side: 5/8 inch / 16.00 mm
Refrigerant / GWP: R32 / 675
optimal room size: up to approx. 70 m²
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
