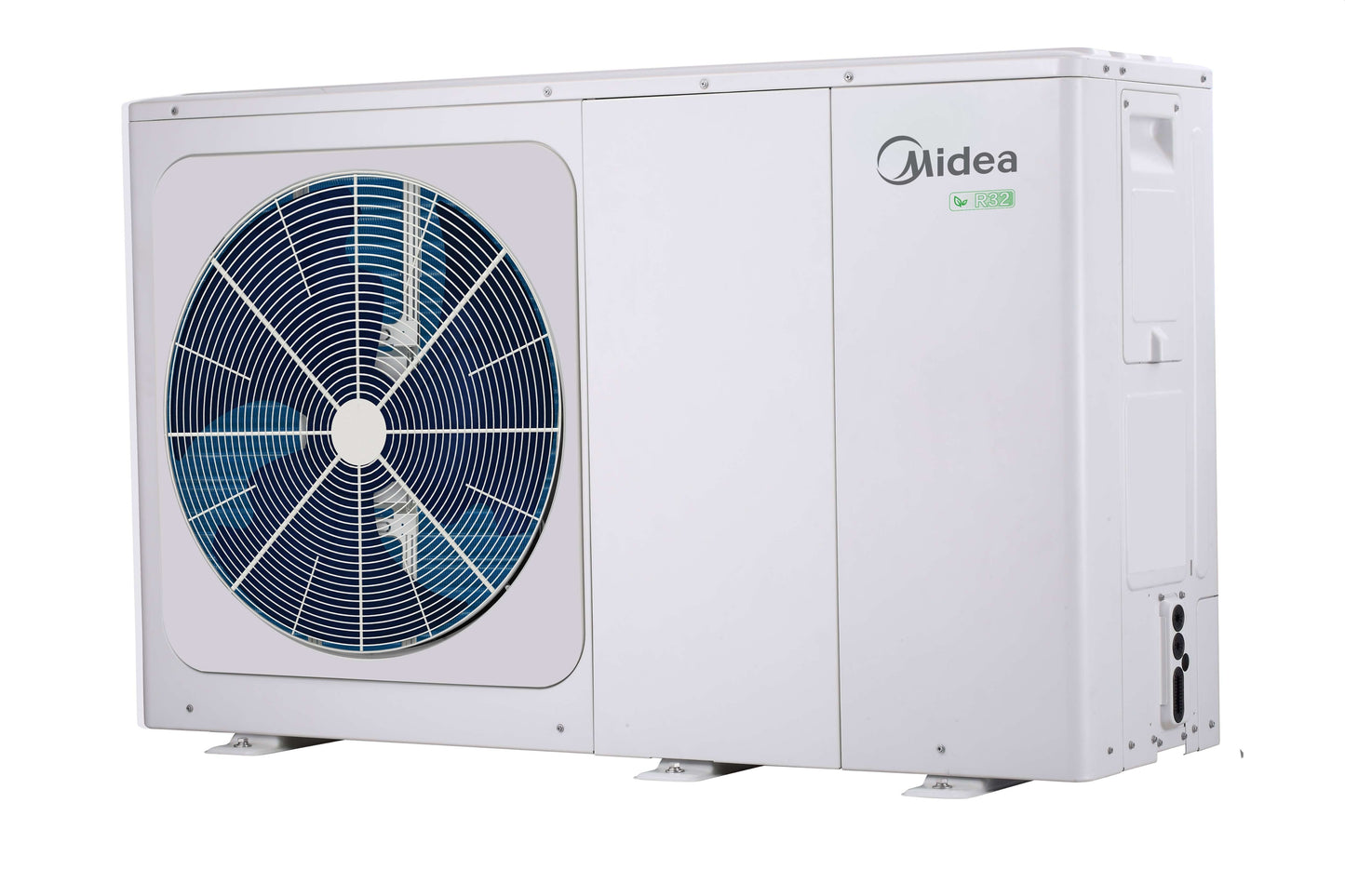

Midea M-Thermal MHC-V14W/D2RN8-BER90 Air Water Monoblock Heat Pump 14.5kW

Midea M-Thermal MHC-V14W/D2RN8-BER90 Air Water Monoblock Heat Pump 14.5kW

Regular price 5.958,00 €
5.958,00 € Sale price Regular price 6.998,00 €
Taxes included.
Energieeffizienzklasse für Kühlen

Free Shipping

Delivery time: Approx. 2-3 working days

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

Midea MHC-V14W/D2RN8-BER90 Air Water Monoblock Heat Pump 14.5 kW M-Thermal WiFi R32 A+++/A++

The M Thermal Monoblock R32 reduces carbon dioxide emissions and features a sleek design with an integrated hydraulic kit, ensuring only a single water line is required on-site. It not only supplies domestic hot water for fan coil units, underfloor heating, or a domestic hot water tank, but is also compatible with solar panels, gas furnaces, boilers, and other heat sources.

Anti-Freeze

The anti-freeze function protects the hydraulic parts from freezing and thus from damage.

Highly efficient heating system

With an exceptionally high energy efficiency class of A+++, the Midea M-Thermal heat pumps offer an optimal solution for anyone who values ​​energy-efficient and therefore environmentally friendly operation.

POWERFUL HEATING WITH HIGH EFFICIENCY

No loss of performance at -15 °C outside air temperature, a ensures use down to -25 °C, a maximum flow temperature of +65 °C and an energy efficiency rating of A+++ speak for themselves!

Flexible operation and more comfort

Weather-dependent operation with climate correlation ensures absolute comfort. Two zones ensure maximum flexibility and a priority setting function, as well as a multi-mode selection, ensure optimal realization of every wish. Special functions such as air purge, floor preheating, and floor drying are, of course, already included in the Midea M Thermal Split.

Improved fan blade design

Outdoor units with a rated power of up to 16 kW have only a single fan, which, thanks to a revised design with reduced flow resistance, draws in sufficient air while keeping the noise level as low as possible.

Environmentally friendly refrigerant

The GWP (Global Warming Potential) of R32 is only 32% compared to conventional R410a, reducing the refrigerant charge and at least 75% of the CO2 equivalent (carbon dioxide equivalent).

High efficiency and wide operating range

DC inverter technology for optimal operational reliability and efficiency. Thanks to the large heat exchanger and large compressor, it offers a heating capacity of 80% down to -7°C outside temperature. A built-in electric backup heater provides additional heating capacity in extremely cold temperatures. The power of the electric backup heater is freely adjustable, and the output power is separately configurable. Heating, cooling, and hot water: a complete heating solution for your application. Wide operating ranges for ambient temperature and outlet water temperature make the Midea M Thermal Split the optimal solution for all installation environments.

WiFi control

With the integrated WiFi module and the MSmartLife app, you can control your Midea air-to-water heat pump from anywhere and configure the desired target parameters before you even arrive home.

Additional heating element

An auxiliary heating element is included as standard in all Midea M-Thermal heat pumps. This ensures continuous water heating even when the base output of the inverter heat pump is insufficient for the required operation.

Inverter control

The key components of the heat pump are manufactured using advanced technologies and are equipped with innovative inverter technology, which ensures precise control of operation and high efficiency.

Heating curve function

Midea M-Thermal heat pumps allow you to choose a heating curve from 32 predefined curves or to individually set a custom curve.

Smart Grid

Midea M-Thermal heat pumps are factory-prepared for operation with a smart grid, which is why each one carries the SG-Ready label. This allows the electricity consumed by the system to be automatically regulated according to tariffs, significantly reducing energy consumption. The smart grid function can also be used with photovoltaic systems.

USB interface

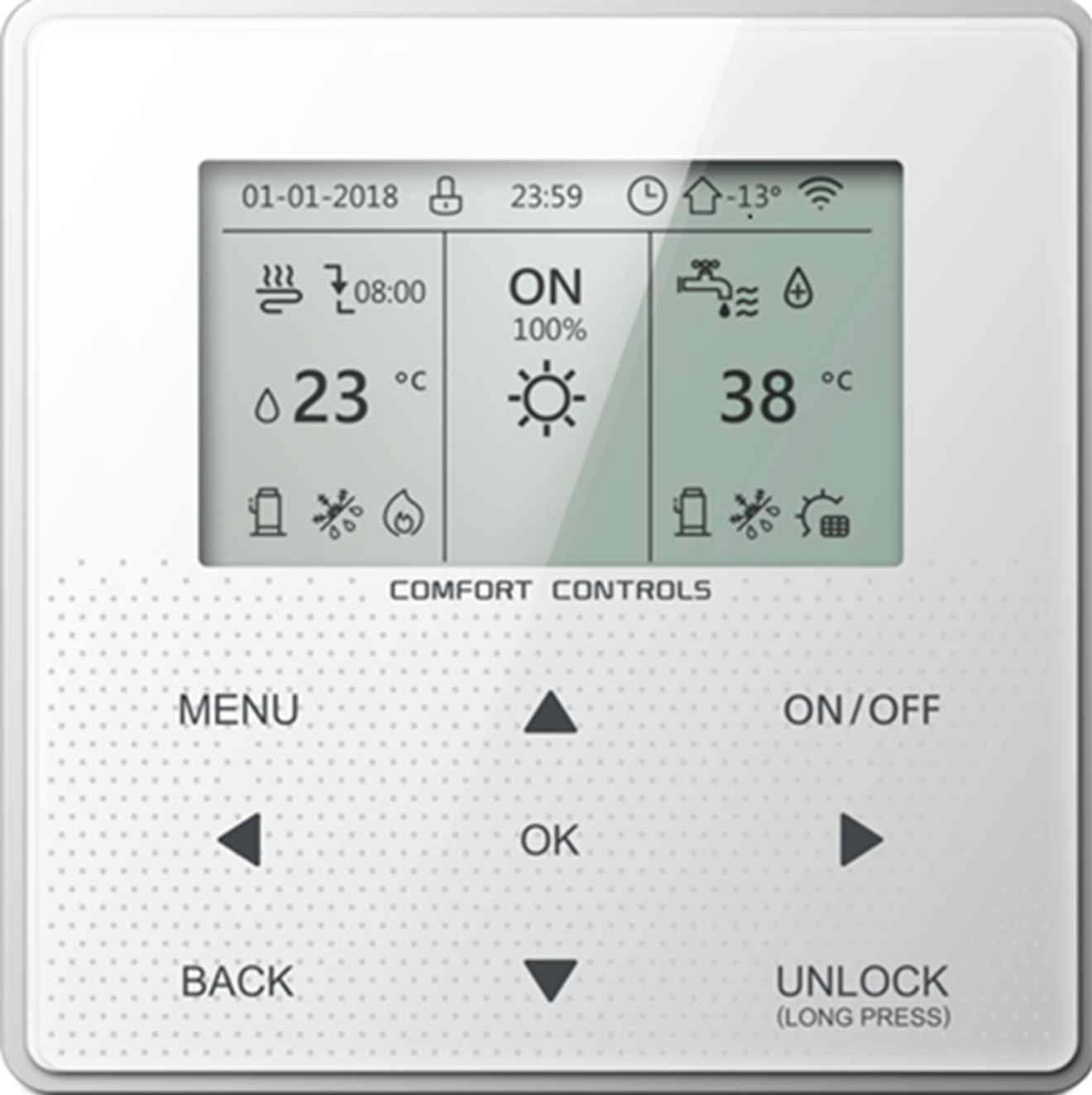

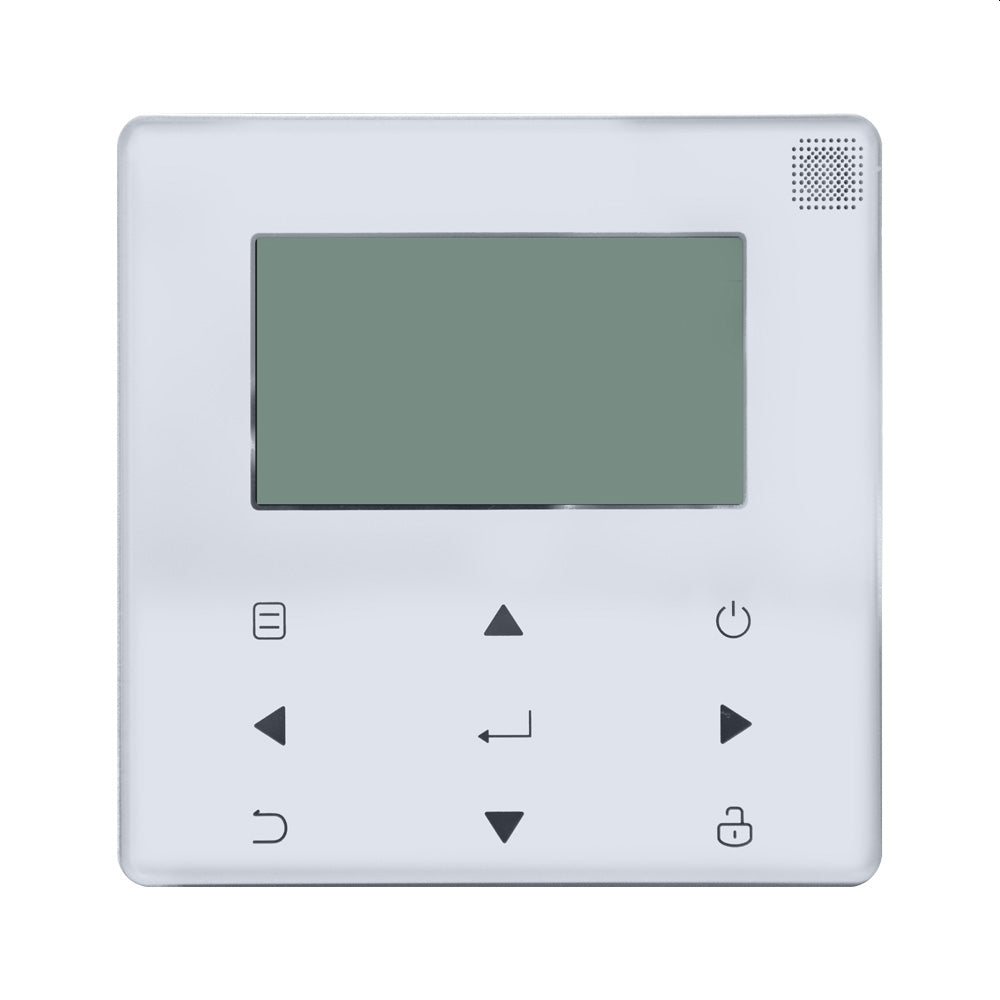

Transfer of settings between the wired remote controls.
Program updates via the interface to save time during installation.
BACKUP HEATER

built-in electric backup heater with 9 kW

Important NOTE!

Installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certified contractors and special qualifications) must be provided. Failure to provide such proof will void any warranty and guarantee.

Technical changes and errors excepted! Subject to prior sale! Illustration similar!

Technical Data

Data sheet Download PDF
Installation instructions Download PDF
Investment book Download PDF

Installation

gid://shopify/GenericFile/35495059751124

Notes

Refrigerant leaks contribute to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
