Midea Multisplit Inverter Outdoor Unit M5O-42FN8-Q 12.3 kW for 1-5 Indoor Units

Midea Multisplit Inverter Outdoor Unit M5O-42FN8-Q 12.3 kW for 1-5 Indoor Units

2.699,00 €
2.699,00 € 4.949,00 €
Taxes included.

Free Shipping

Delivery time: Approx. 2-3 working days

A++ A+

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

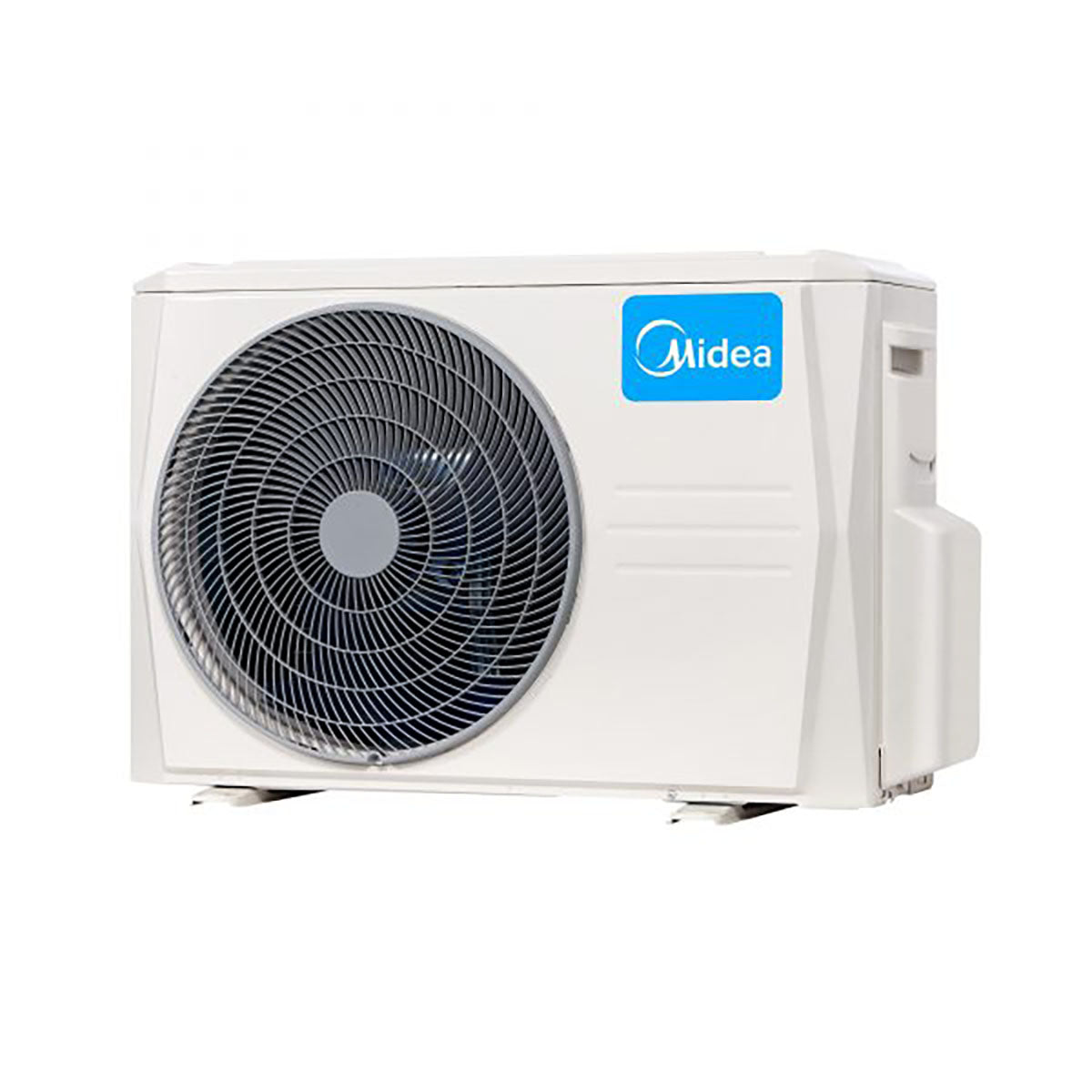

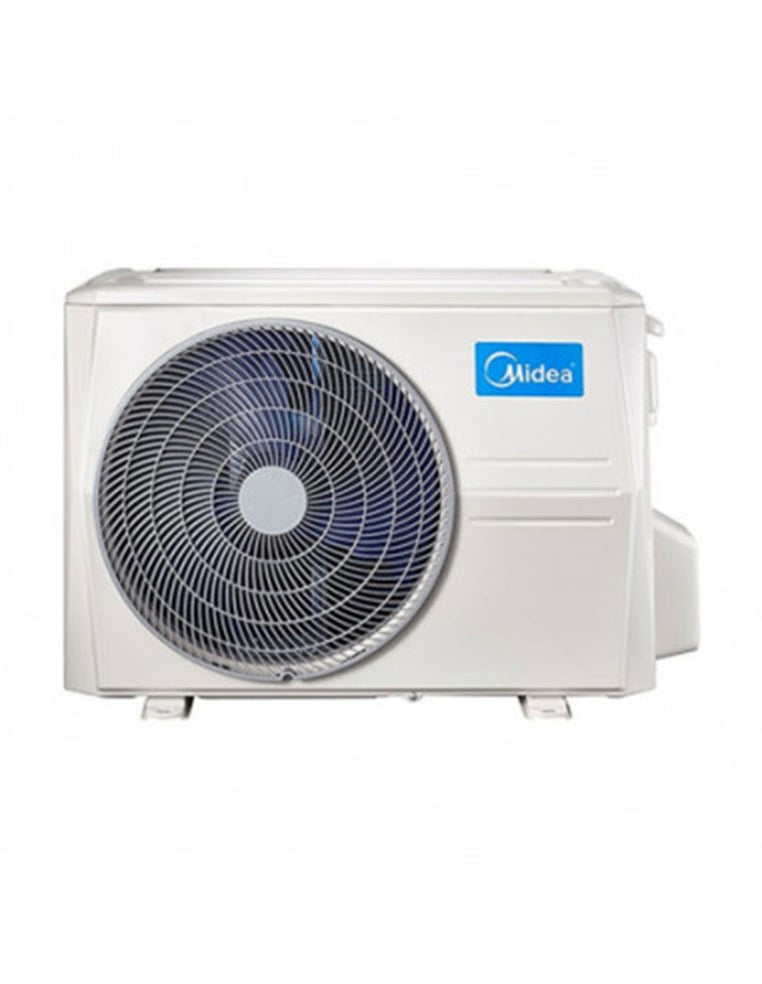

Midea Multisplit Inverter Outdoor Unit M5O-42FN8-Q 12.3 kW for 1-5 Indoor Units / Wall Units


Outdoor unit: M5O-42FN8-Q
Suitable for e.g.: 5x 2.6 kW; 5x 3.5 kW; 3x 2.6 kW + 2x 3.5 kW; 2.6 kW + 4x 3.5 kW; 2x 2.6 kW + 3x 3.5 kW indoor units (5x9000 BTU; 5x12000 BTU; 3x9000+2x12000 BTU; 9000+4x12000 BTU; 2x 9000+3x12000 BTU)

MIDEA multi-split inverter with 12.3 kW rated power

The MIDEA multi-split system allows the operation of multiple indoor units with a single outdoor unit. The exterior casing features an elegant, diamond-cut design that offers both stability and an attractive appearance, ensuring safe operation and a long service life. The "Archimedean" screw-shaped air outlet and the bionic fan impeller minimize noise.

The stepless frequency adjustment of the compressor and motor ensures a constant room temperature and avoids energy-intensive stop-and-go operation, which both reduces costs and extends the service life of the air conditioner.

Individual air conditioning solutions for 1 or 5 indoor units

This unit offers versatile climate solutions. With its heat pump function and operating range down to -15°C outside temperature, energy-efficient heating is also possible. You can connect up to two individually controllable indoor units to create an optimal comfortable climate in different rooms. You can choose from various indoor units: wall-mounted units, ceiling cassette units, floor-standing units, and ducted units.

Scope of delivery

- 1 × multi-split outdoor unit M5O-42FN8-Q
- Mounting accessories

Technical data:

Manufacturer: Midea
Outdoor unit dimensions | mm | H x W x D: 810 x 946 x 410
Fuse: 25 A
Connectable indoor units: 5
EAN: 4048164881086
Heating application range: -15 to +24 (°C)
Cooling application range: -15 to +50 (°C)
Energy efficiency heating:
Energy efficiency cooling:
Weight of outdoor unit in kg: 73.3
WEEE Reg. No. DE: 55703080
BTU: 42000
Heating output (min.~max.) in KW: 12.31 (2.34-12.31)
Cable feed min.: 3 x 2.5 mm²
Cable connection between indoor unit and outdoor unit: 4 x 1.5 mm², 5 x 1.5 mm²
Refrigerant GWP value: R32: 675
Refrigerant height difference outdoor unit-indoor unit max. in meters: 15
Refrigerant type: R32
Refrigerant line length between indoor and outdoor unit max. in meters: 35
Refrigerant quantity (pre-filled) in kg: 2.40
Additional refrigerant refill quantity per additional meter in grams: 12
Refrigerant pre-charge for line length in meters: 5
Refrigeration connection liquid line: 5 x 1/4" (6.35 mm)
Refrigeration connection suction gas line: 4 x 3/8" (9.52 mm) + 1 x 1/2" (12.7 mm)
Cooling capacity (min.~max.) in KW: 12.31 (2.05-12.31)
Air volume flow outdoor unit | Cooling | Heating | m³/h: kA
Sound pressure level outdoor unit cooling/heating dB(A): 62
Sound power level outdoor unit cooling/heating dB(A): kA
SCOP | Heating: 3.8
SEER | Cooling: 6.1
Power supply outdoor unit: 220-240 V / 1Ph / 50Hz, N, PE

Subject to technical changes and errors! Subject to prior sale! Illustration similar!

Technical Data

Data sheet Download PDF
Installation instructions Download PDF
Investment book Download PDF

Installation

gid://shopify/GenericFile/35495089701076

Notes

Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.

Manufacturer Information

Midea Europe GmbH Ludwig-Erhard-Straße 14 65760 Eschborn Deutschland +49 6196 – 90 20-0 info-meg@midea.com
