Monoblock heat pump 16kW AVARMA air-water with inverter technology R290 400V | HOFMAN-ENERGY

Monoblock heat pump 16kW AVARMA air-water with inverter technology R290 400V | HOFMAN-ENERGY

Regular price 4.899,00 €
4.899,00 € Sale price Regular price 5.999,00 €
Taxes included.

Shipping method: Freight forwarding

Delivery time: Approx. 2-3 working days for standard items, forwarding delivery approx. 10-15 working days

Free shipping in Germany for orders over €50. Other EU countries additional shipping costs .

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

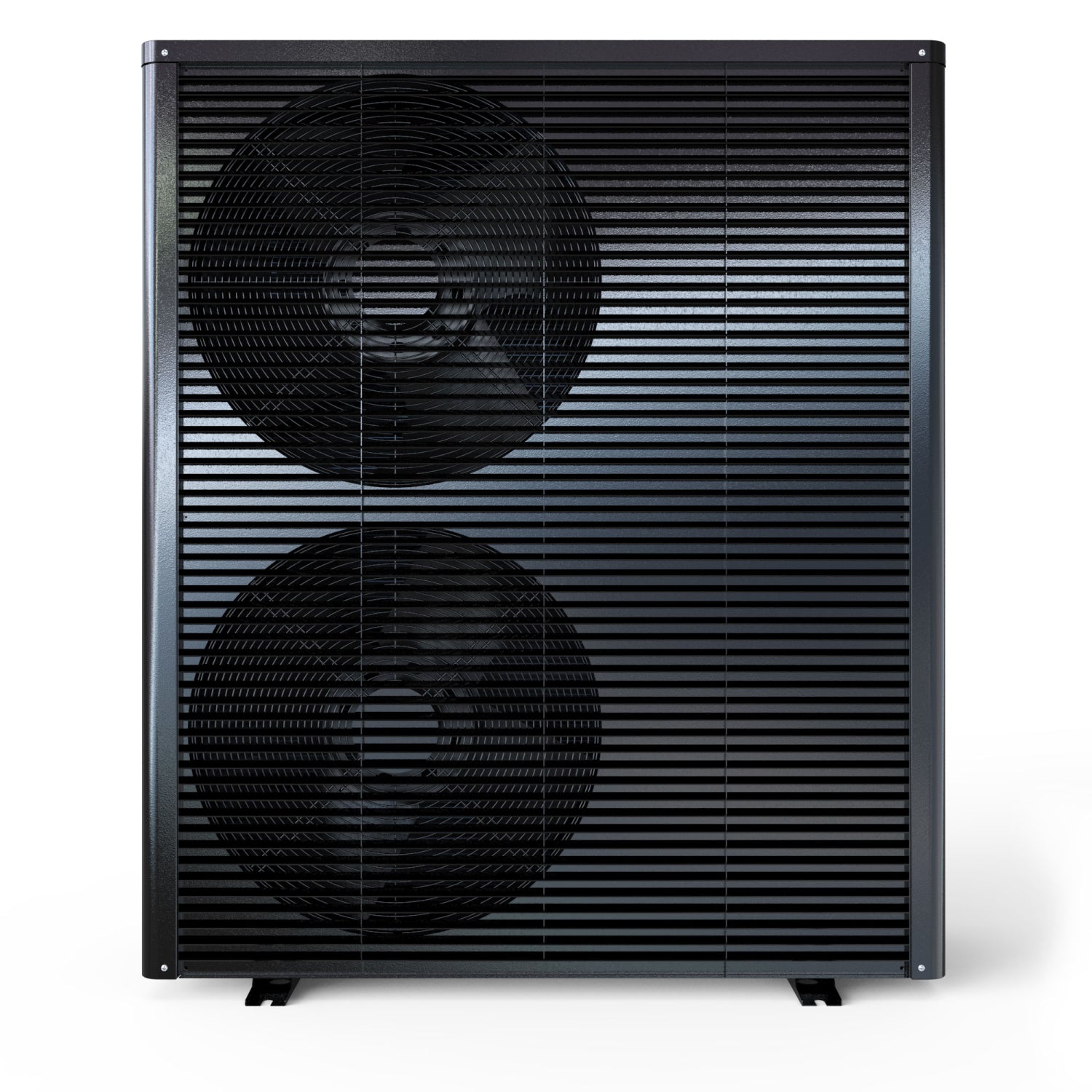

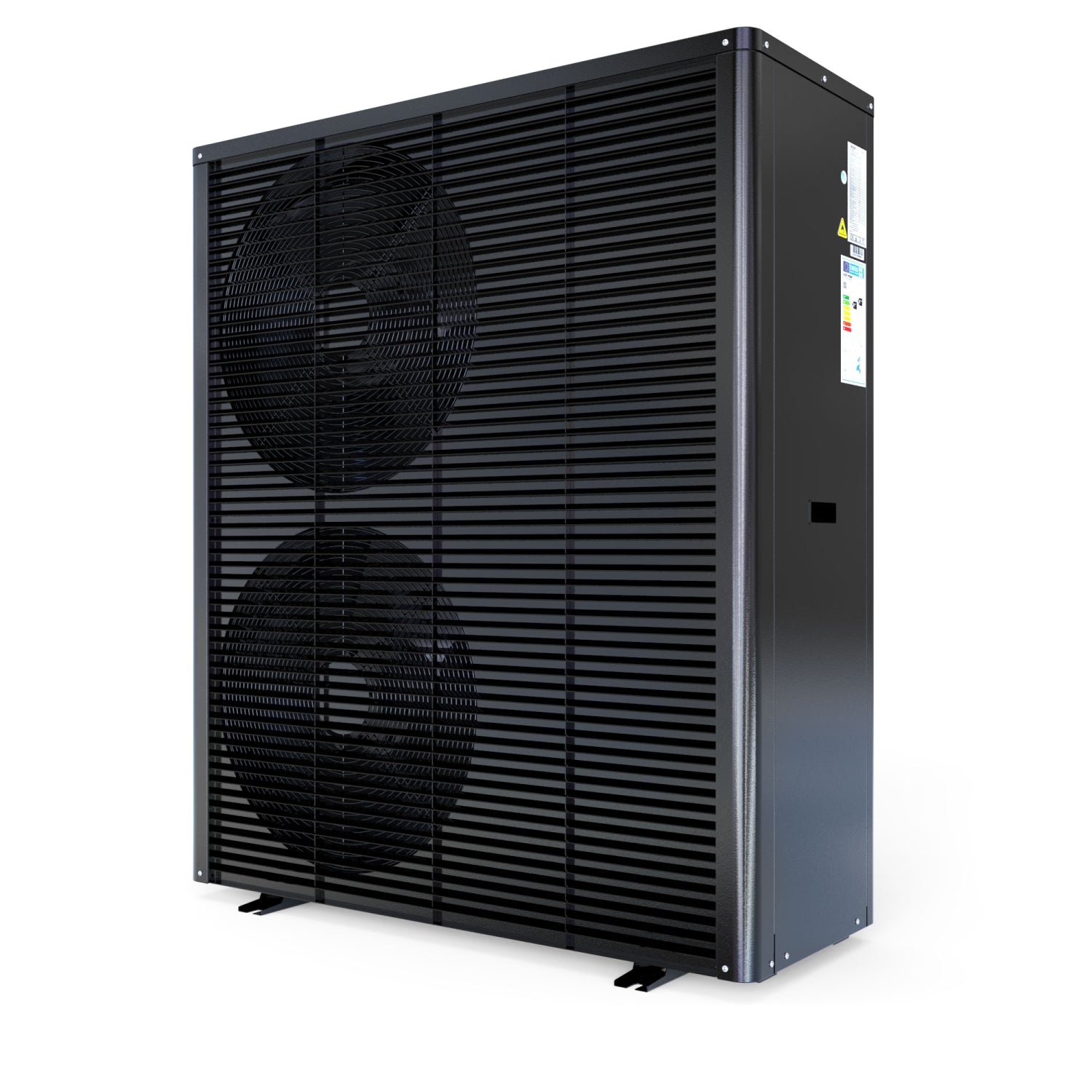

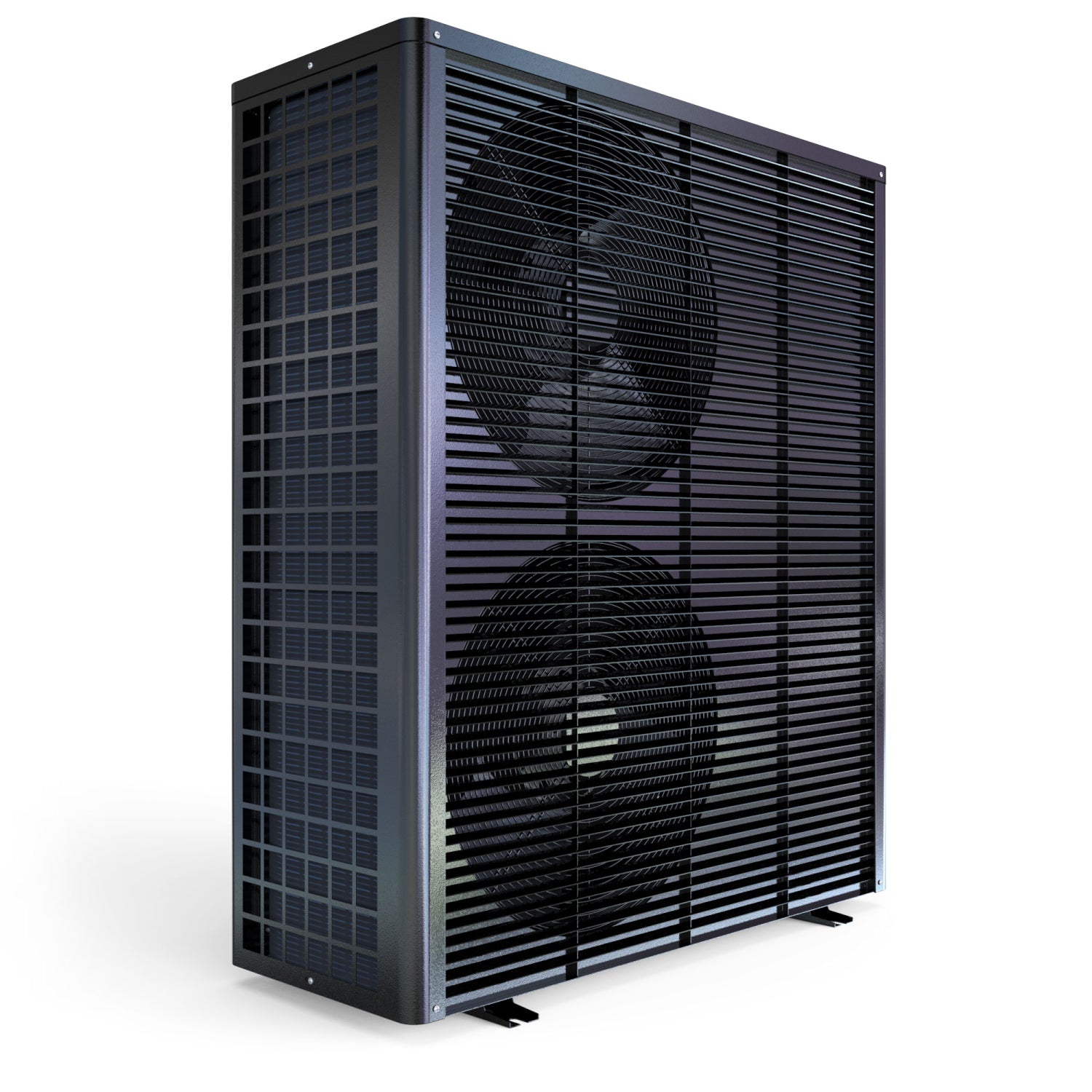

Monoblock heat pump 16kW AVARMA air-water with inverter technology R290 400V | HOFMAN-ENERGY

The environmentally friendly 16KW air-water heat pump HE-AI-290 from HOFMAN Energy provides cozy warmth in winter and pleasant coolness in summer

This highly efficient, state-of-the-art monoblock heat pump meets even the most demanding needs. It reliably heats the building in winter and optimally cools it in summer when needed. Thanks to DC inverter technology, it achieves a significant noise reduction compared to other air-to-water heat pumps.

The natural refrigerant R290 used ensures high efficiency at temperatures down to -25°C and flow temperatures up to 75°C. This means that even heating systems with existing radiators – with flow temperatures up to 55°C – can be operated efficiently.

The heat pump features a Wilo circulation pump with maximum energy efficiency and is suitable for both existing and new buildings. The all-in-one unit is versatile and can be used as a space heater, underfloor heating, or hot water storage tank, and is easy to install and maintain. It can be mounted directly on the exterior wall, on the ground, or on the roof.

A simple control system with a multilingual display makes operation child's play, and with the smart control via mobile app, you can monitor the air-to-water heat pump from anywhere.

The A+++ energy label certifies the heat pump's low environmental impact by reducing CO2 emissions, resulting in significant energy savings and lower operating costs. The air-to-water heat pump uses renewable environmental energy and consumes no natural resources such as oil or gas. It only requires electricity for its ongoing operation, which you can even generate yourself with your own PV system.

Highest quality: Certification by TÜV SÜD

Significant noise reduction through DC inverter technology

Significant energy savings and operating cost reduction

Characteristics
  • Highly efficient circulation pump.
  • Factory-fitted internal expansion tank.
  • Intelligent control with multilingual display.
  • Use as room heating and underfloor heating.
  • Up to 70% funding in Germany from KfW/BAFA.
  • Outdoor unit, pre-filled with R290 refrigerant.
  • Refrigerant R290 for maximum efficiency at temperatures down to -25°C and flow temperatures up to 75°C.
  • All-in-one device with easy installation and maintenance.

Advantages
Vorlauftemperatur bis +75° Flow temperature up to +75°

Impressive performance and enables flow temperatures of up to 75°C.

All-In-One All-in-one

The all-in-one solution with heating, ventilation and hot water storage in one device ensures economical year-round operation.

Smart APP Smart APP

The convenient, user-friendly smart app allows control anytime from anywhere.

Kältemittel R290 Refrigerant R290

Environmentally friendly and future-proof thanks to the natural refrigerant R290 with good thermodynamic properties.

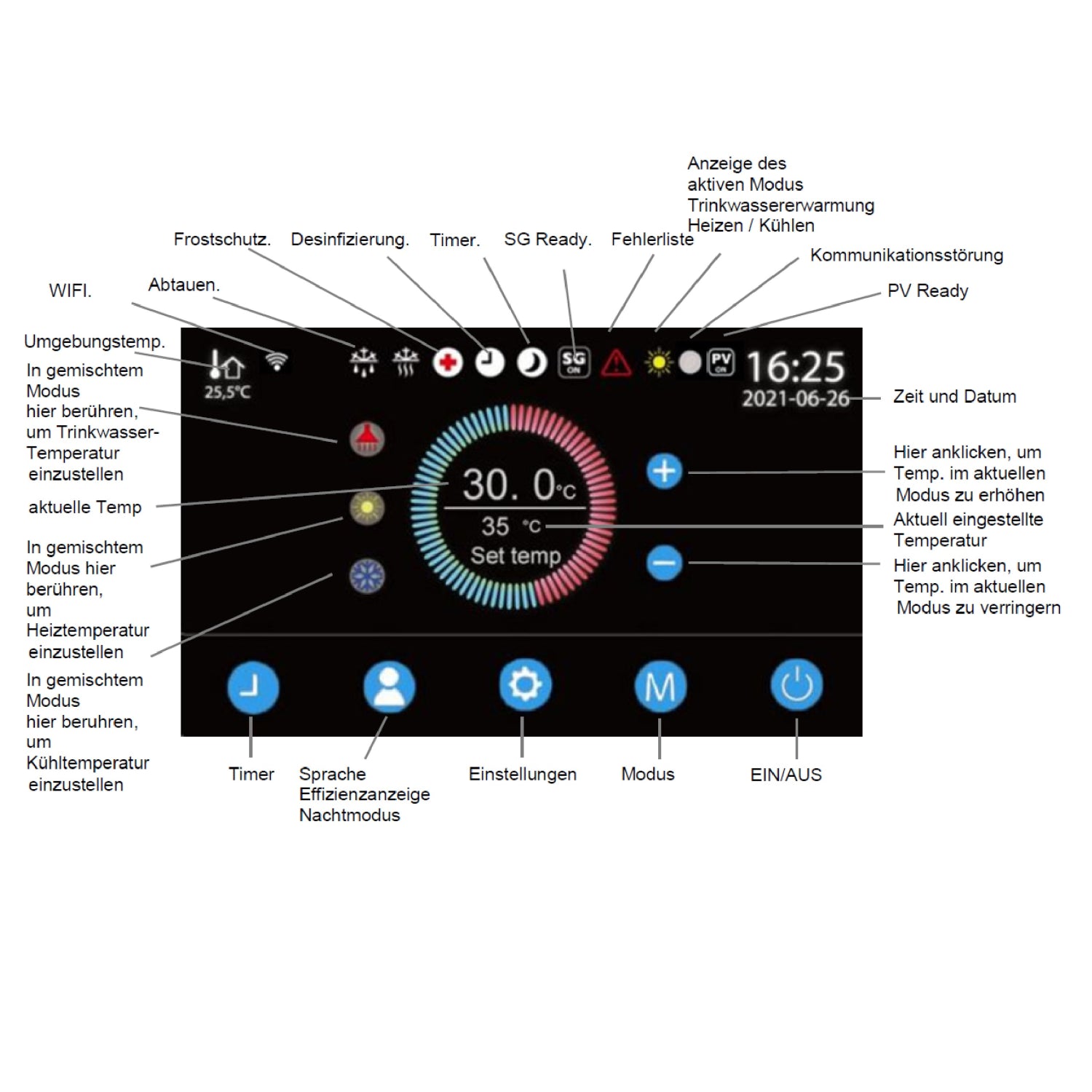

Controller mit Touch-Display Controller with touch display

The intuitive touch control panel presents complex relationships clearly and enables easy operation.

Invertertechnologie Inverter technology

The DC inverter technology ensures energy-efficient and quiet operation by continuously adjusting the power.

WLAN Wi-Fi

Seamless Wi-Fi integration with access to your home heat pump anytime, anywhere.

Mehrsprachige Bedienung Multilingual service

A user-friendly control that can be operated in many languages.

Hocheffiziente Umwälzpumpe Highly efficient circulation pump

The integrated, highly efficient circulation pump offers maximum energy efficiency and high reliability.

Flexible Möglichkeiten Flexible options

Flexibility that's impressive: seamless connection to various heating systems for maximum comfort and efficiency.

Plug & Play Plug & Play

Simple plug-and-play experience for easy installation and low maintenance.

KfW/BAFA förderfähig KfW/BAFA eligible

Eligible for KfW/BAFA funding in Germany, invest sustainably and benefit from environmentally friendly HOFMAN-Energy heating technology.

Kompakte Bauweise Compact design

Takes up very little space and is therefore the best solution for properties with less space.

Schnelles und einfaches Abtauen Quick and easy defrosting

Our heat pump is designed to efficiently prevent frost formation and defrost quickly and effortlessly when needed.

Toshiba GMCC Kompressor Toshiba GMCC compressor

The GMCC Toshiba compressor stands for quality and durability and delivers top performance even under extreme conditions.

PV Ready PV Ready

PV-ready heat pumps can effectively use the generated solar power to heat or cool the house, thus reducing energy costs and improving the environmental balance.

Zuverlässige Heizleistung bei extrem kaltem Wetter
Reliable heating performance in extremely cold weather

The AVARMA heat pump delivers 100% heating capacity even in extremely cold weather. The larger heat exchanger transfers more heat to ensure reliable performance in cold conditions.

Many homes use older radiators that require 65°C or more for effective space heating, while conventional heat pumps operate at 55°C to 60°C. The AVARMA heat pump provides consistently hot water for space heating and can therefore be an efficient alternative to gas boilers.

Leise und vibrationsarm durch Inverter-Technologie
Quiet and low-vibration thanks to inverter technology

DC inverter technology represents an advanced solution for efficient and reliable heating.

The inverter-controlled AVARMA heat pump heating system ensures constant system temperatures and a uniform room temperature and has a clear advantage over a conventional heat pump as it is more energy-efficient, gentler on the system and runs more quietly.

Compared to other air-water heat pumps, it achieves a significant reduction in noise and ensures energy-efficient operation through continuous adjustment of performance.

Wirkungsvoller Schutz vor Legionellen
Effective protection against Legionella

The AVARMA heat pump is equipped with a legionella circuit that provides periodic thermal disinfection as a preventive measure against legionella infestation.

The drinking water storage tank and the entire hot water pipe network, including the fittings, are heated to 70 °C for at least 3 minutes at a set and regular interval.

AVARMA - das Heizsystem der Zukunft
AVARMA - the heating system of the future

Smart grid devices such as the AVARMA heat pump can be connected to the smart grid via an interface and thus react to a surplus of solar power.

With such a network, production and consumption can be further decoupled and the electricity generated by the heat pump can be used for heating or surpluses generated in summer can be used in winter.

Power grid operators can directly control the power storage system via the integrated smart grid interface and stabilize and relieve the load on the power grids.

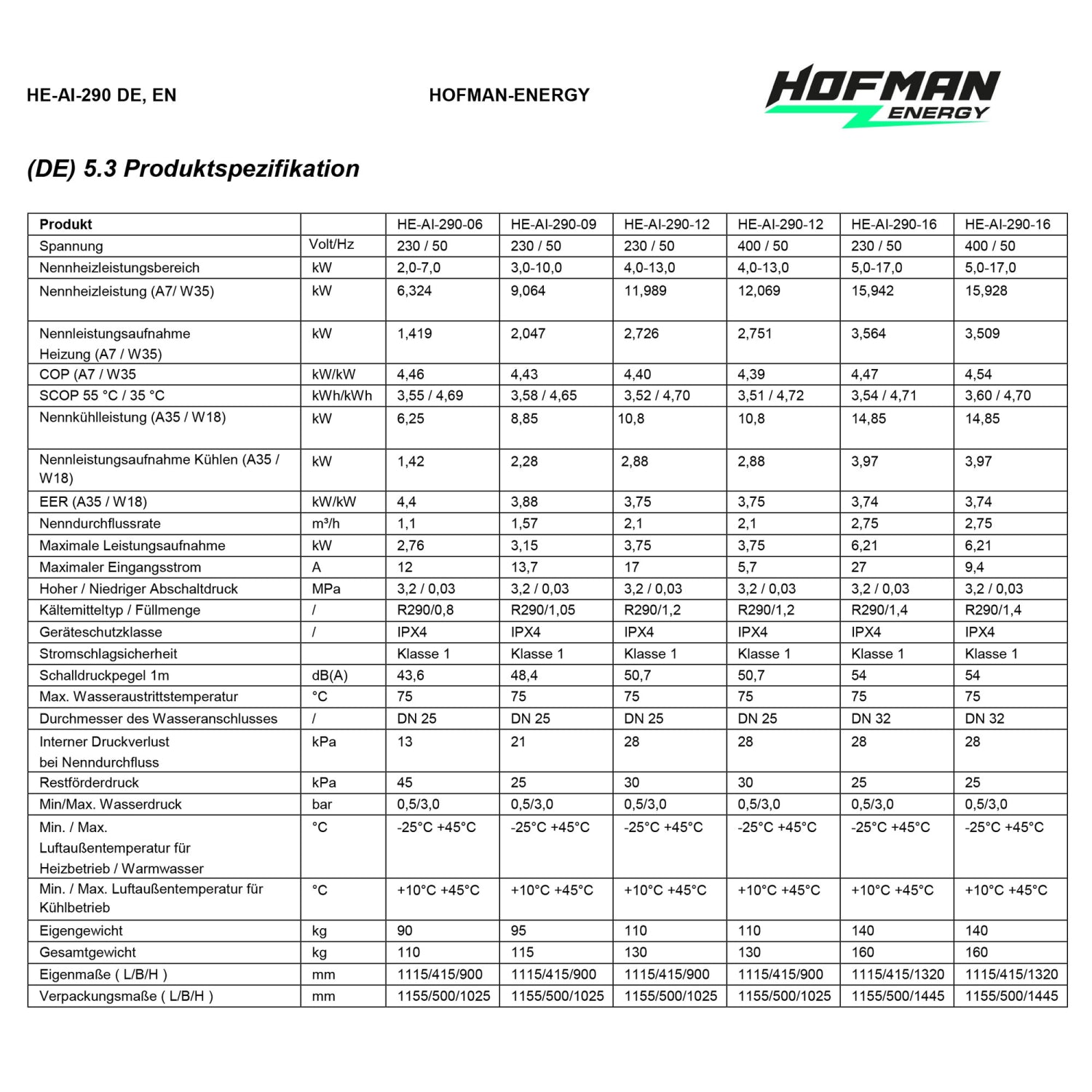

Technical data:

Weight (kg) Item weight 140
Shipping weight 160

Item dimensions (mm)
Depth 415
Height 1320
Width 1115

Packaging dimensions (mm)
Length 500
Width 1150
Height 1450


Scope of delivery
1 x heat pump filled with R290 refrigerant
1 x control unit
1 x temperature sensor for domestic water
1 x temperature sensor for heating water
1 x drain valve for water
1 x Installation and operating instructions in DE / EN
4 x vibration dampers

Important NOTE!

Installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certified contractors and special qualifications) must be provided. Failure to provide such proof will void any warranty and guarantee.

Subject to technical changes and errors! Subject to prior sale! Illustration similar!

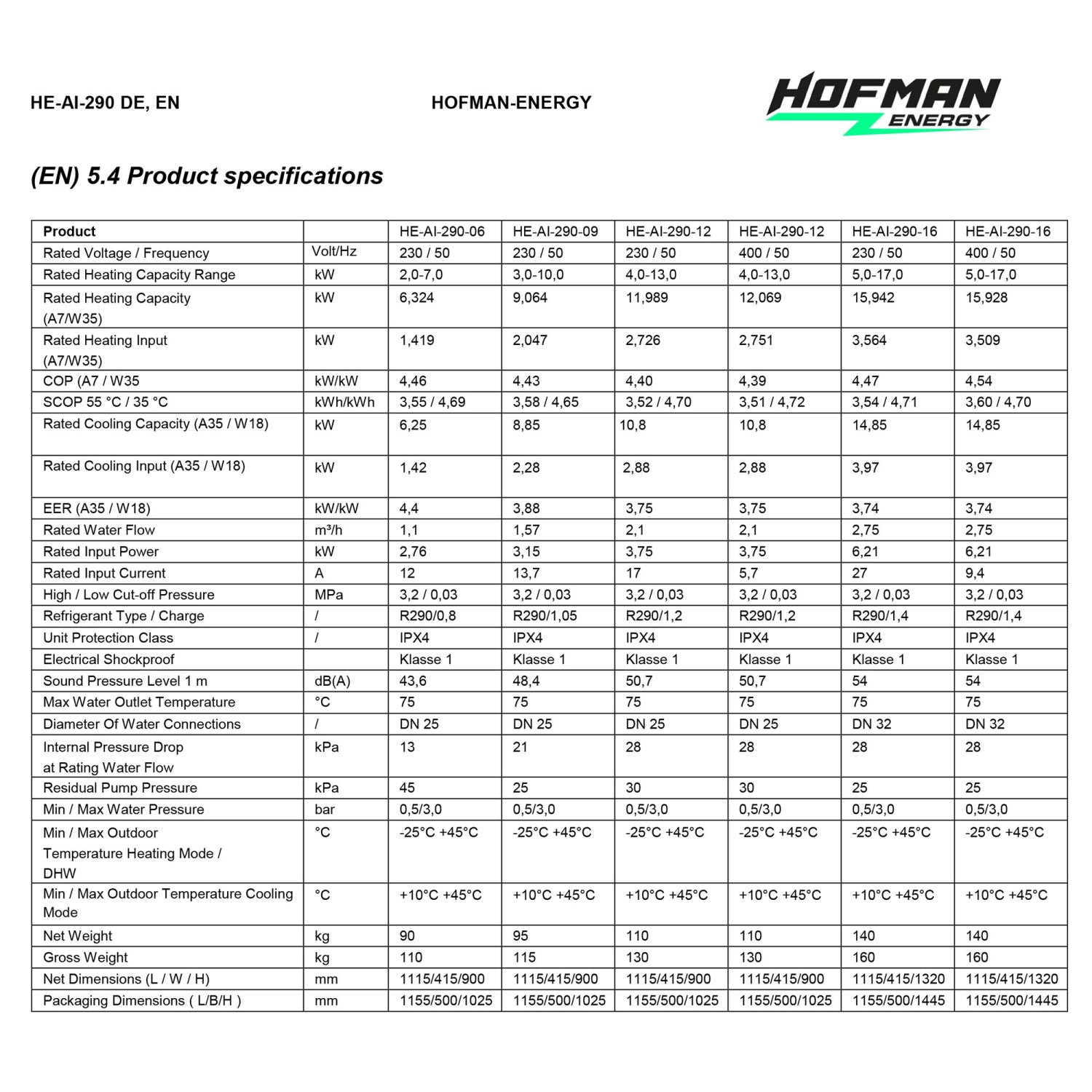

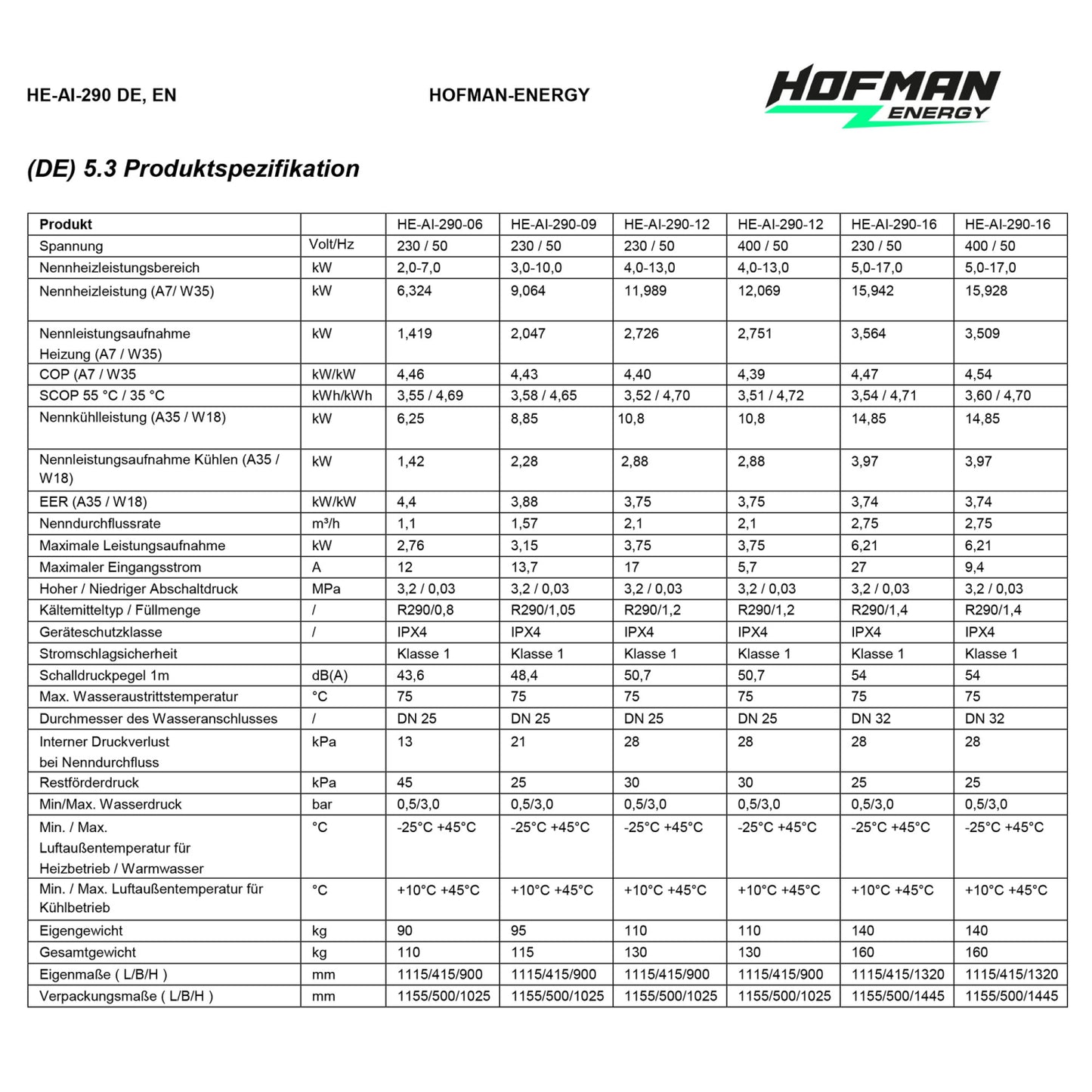

Technical Data

Data sheet Download PDF
Installation instructions Download PDF
Investment book Download PDF
Investment book Download PDF

Installation

gid://shopify/GenericFile/36546438562004

Notes

Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
