SUNEX FISH S5 X buffer storage tank, 200 to 500 liters, with a heat exchanger

SUNEX FISH S5 X buffer storage tank, 200 to 500 liters, with a heat exchanger

Download Data sheet

739,00 €
739,00 € 839,00 €
Taxes included.
B
Energieeffizienzklasse für Heizen

Shipping method: Freight forwarding

Delivery time: Approx. 2-3 working days for standard items, forwarding delivery approx. 10-15 working days

Free shipping in Germany for orders over €50. Other EU countries additional shipping costs .

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

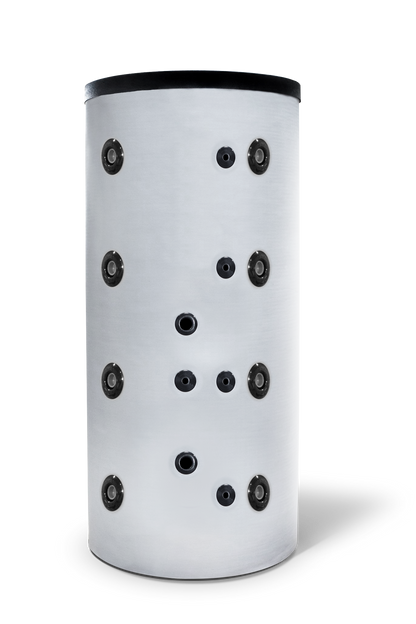

SUNEX FISH S5 X buffer storage tank, 200 to 500 liters, with a heat exchanger

Buffer storage tanks in 200, 300, and 500 liter capacities

(800 to 2000 liters available on request)

Water storage tank / buffer tank

Vertical buffer storage tanks for all types of heating systems with solid fuel, oil, gas, heat pump, or electric boilers. The tanks feature a large, efficient heat exchanger that allows for the direct connection of a solar thermal system and an additional heat source (without the need for separate heat exchangers). A wide range of connections allows the tanks to be used in unconventional heating systems and for multiple tanks to be combined into battery systems, enabling the total capacity to be tailored to individual needs.

Thermal insulation

The thermal insulation in the storage tanks consists of a layer of CFC-free polyurethane rigid foam and a replaceable layer of PVC jacket.

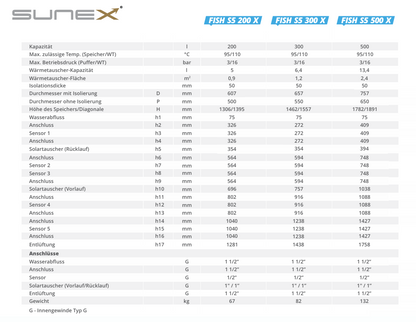

Technical data:

  • Material: S235JR
  • Welding: automatic welding
  • Maximum operating pressure of the storage tank: 3 bar
  • Maximum test pressure: 4.5 bar
  • Maximum operating temperature: 95ºC
  • Insulation: 50mm thick polyurethane foam
  • Outer shell: grey color
  • Heat exchanger: Steel tube S235JR

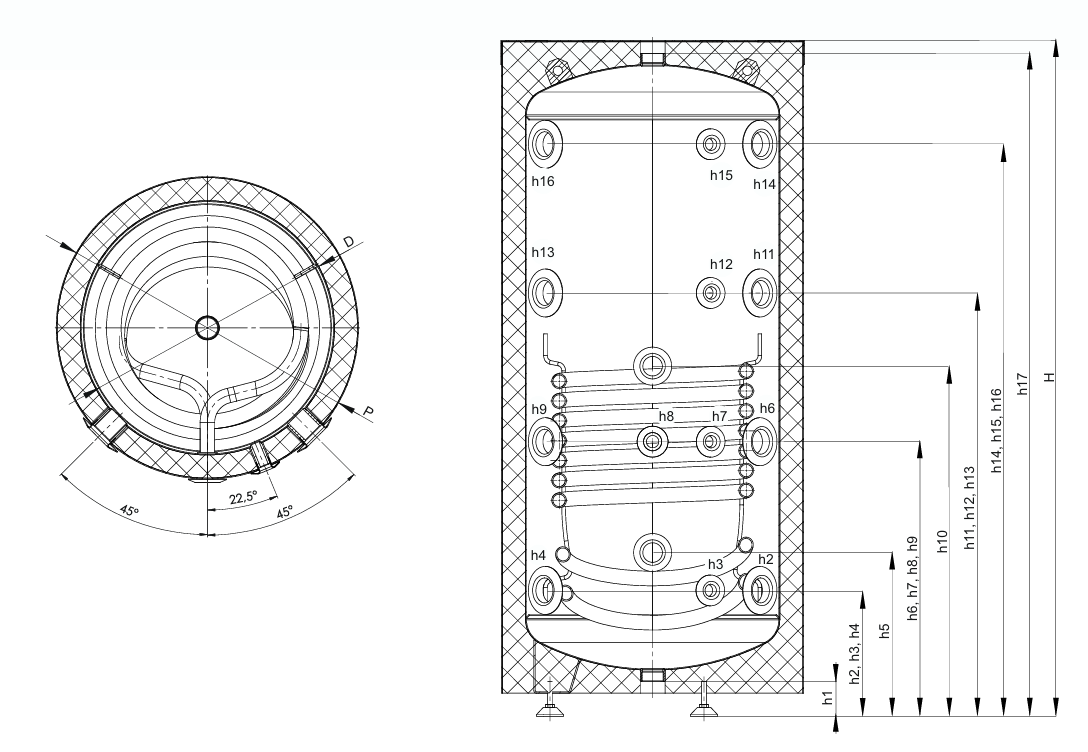

Technical data

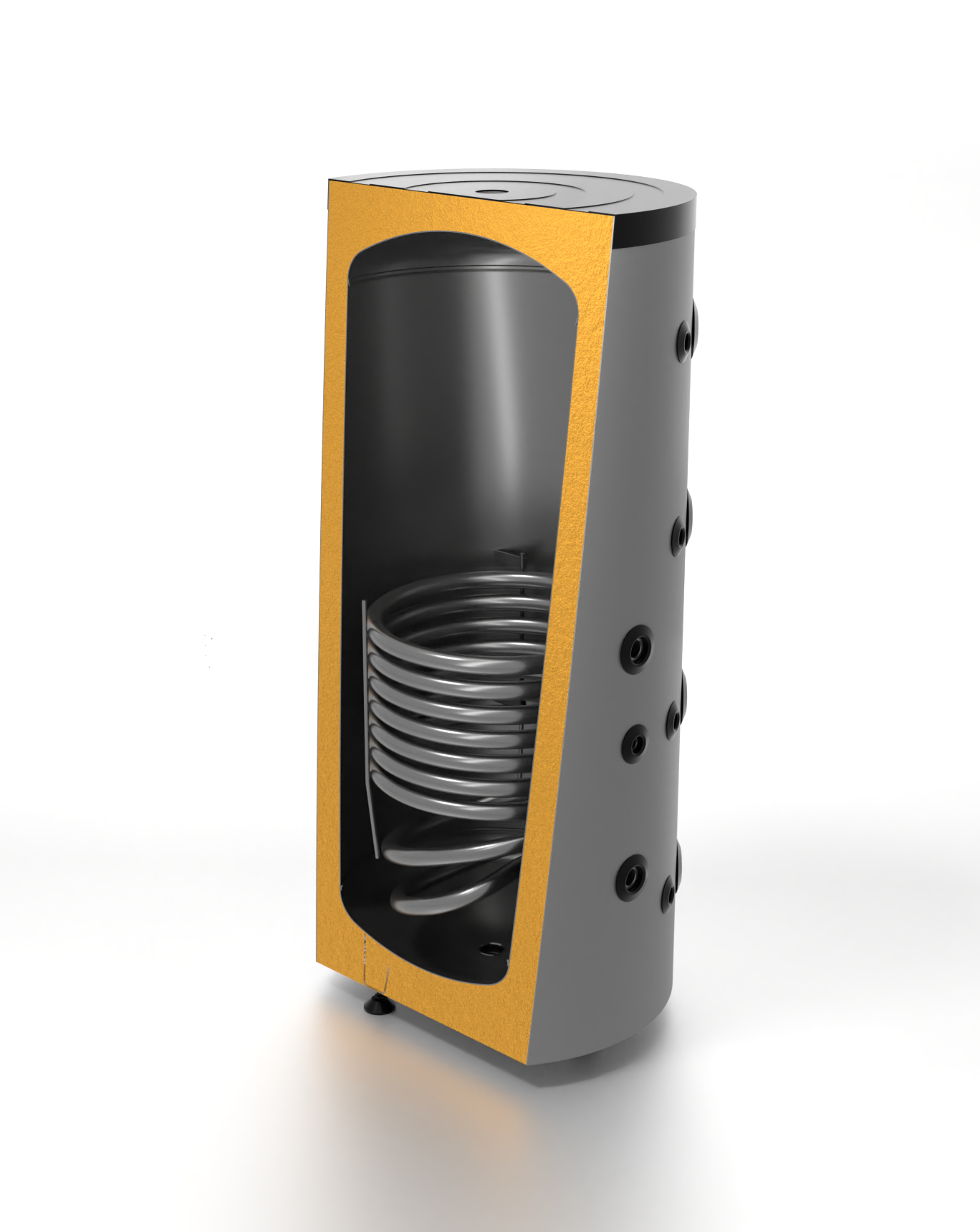

1- PUR foam insulation for excellent thermal insulation
2 feet for buffer leveling

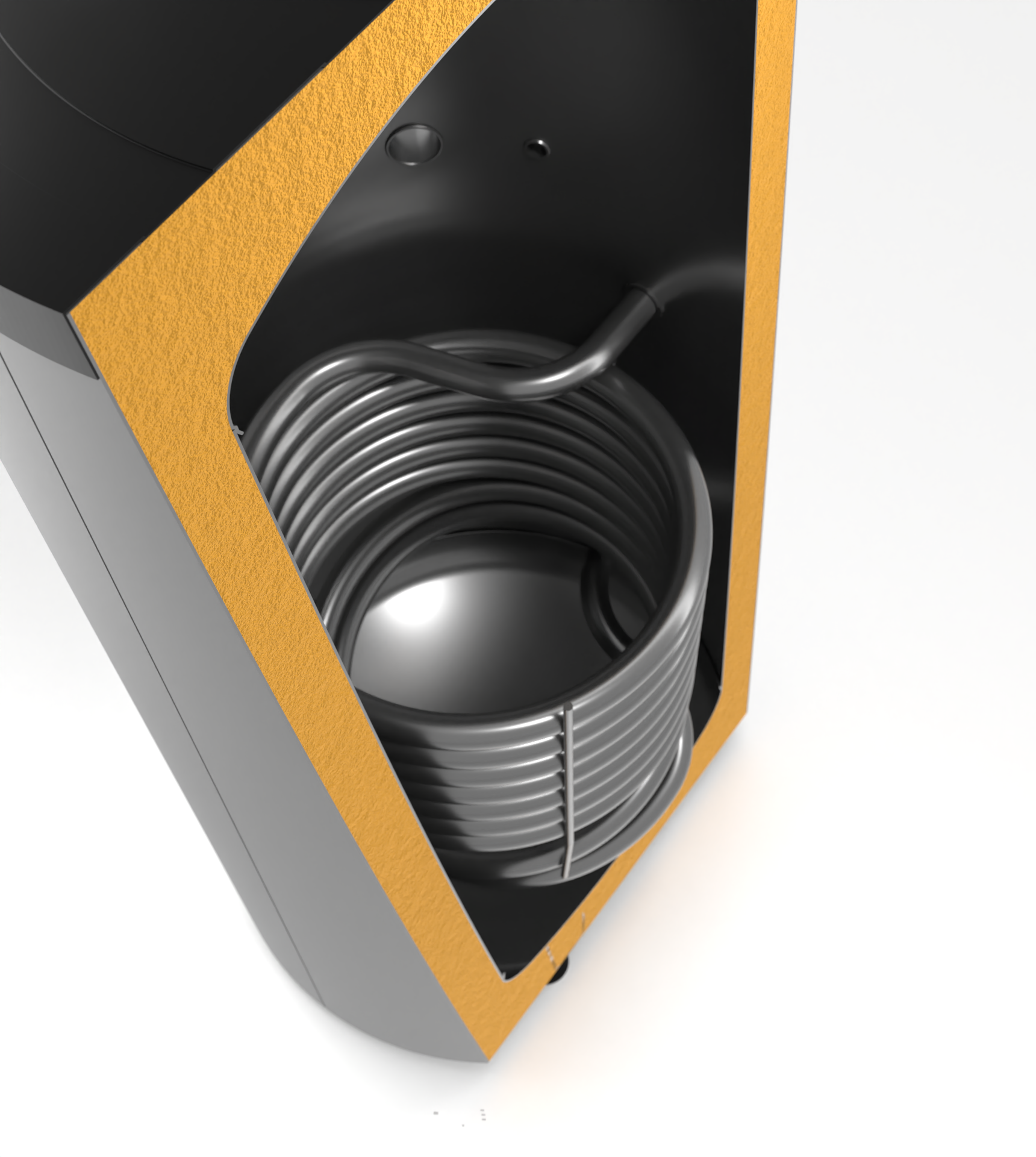

3- Efficient heat exchanger with special design for solar systems

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

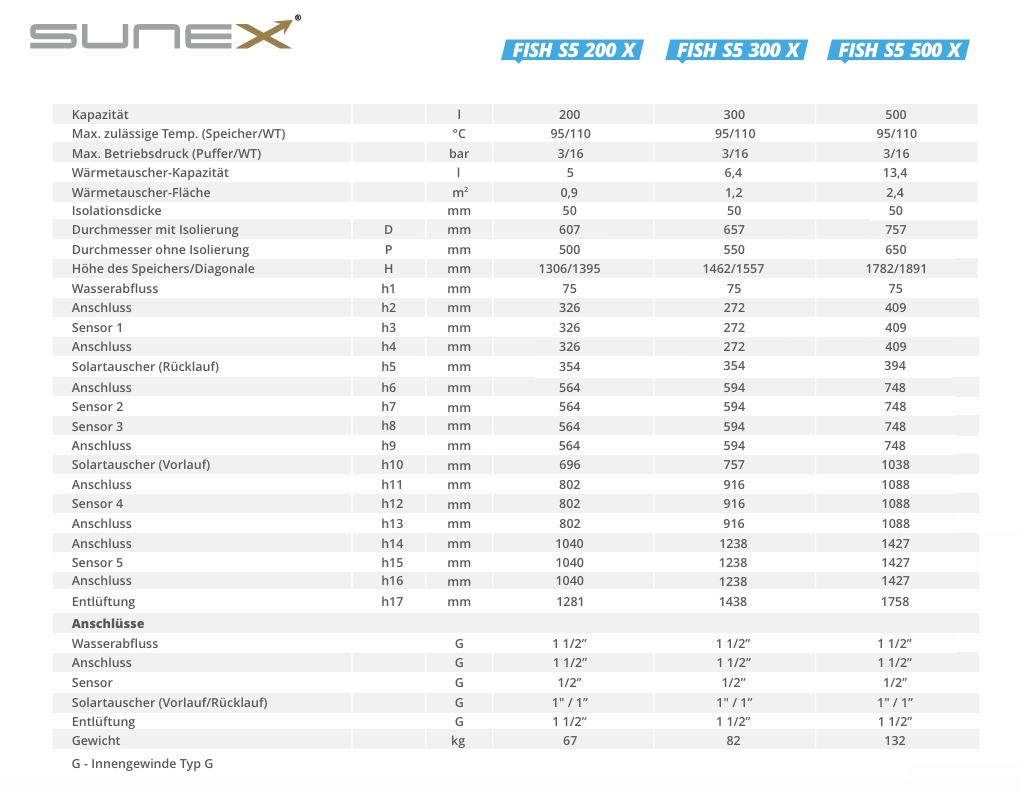

Technical Data

Download Data sheet Download PDF
Installation instructions Download PDF
Investment book Download PDF
