Pump group for central heating - Wilo GPO S DN 25 - Heating circuit set with three-way mixing valve with servo motor

Pump group for central heating - Wilo GPO S DN 25 - Heating circuit set with three-way mixing valve with servo motor

Download Data sheet

299,00 €
299,00 € 369,00 €
Taxes included.

Shipping method: Freight forwarding

Delivery time: Approx. 2-3 working days for standard items, forwarding delivery approx. 10-15 working days

Free shipping in Germany for orders over €50. Other EU countries additional shipping costs .

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

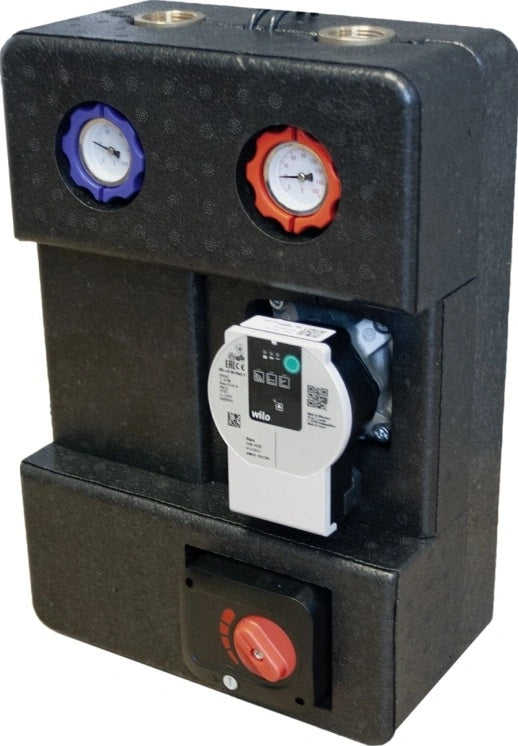

Wilo GPO S DN 25 pump group - pump group for central heating - with three-way mixing valve with servo motor - Wilo circulation pump

The pump assembly with a three-way mixing valve is used to force the circulation of the working fluid in the central heating, process heat, and cooling system. The circulation pump allows operation in: Δp-c, Δp-v, and constant speed modes.

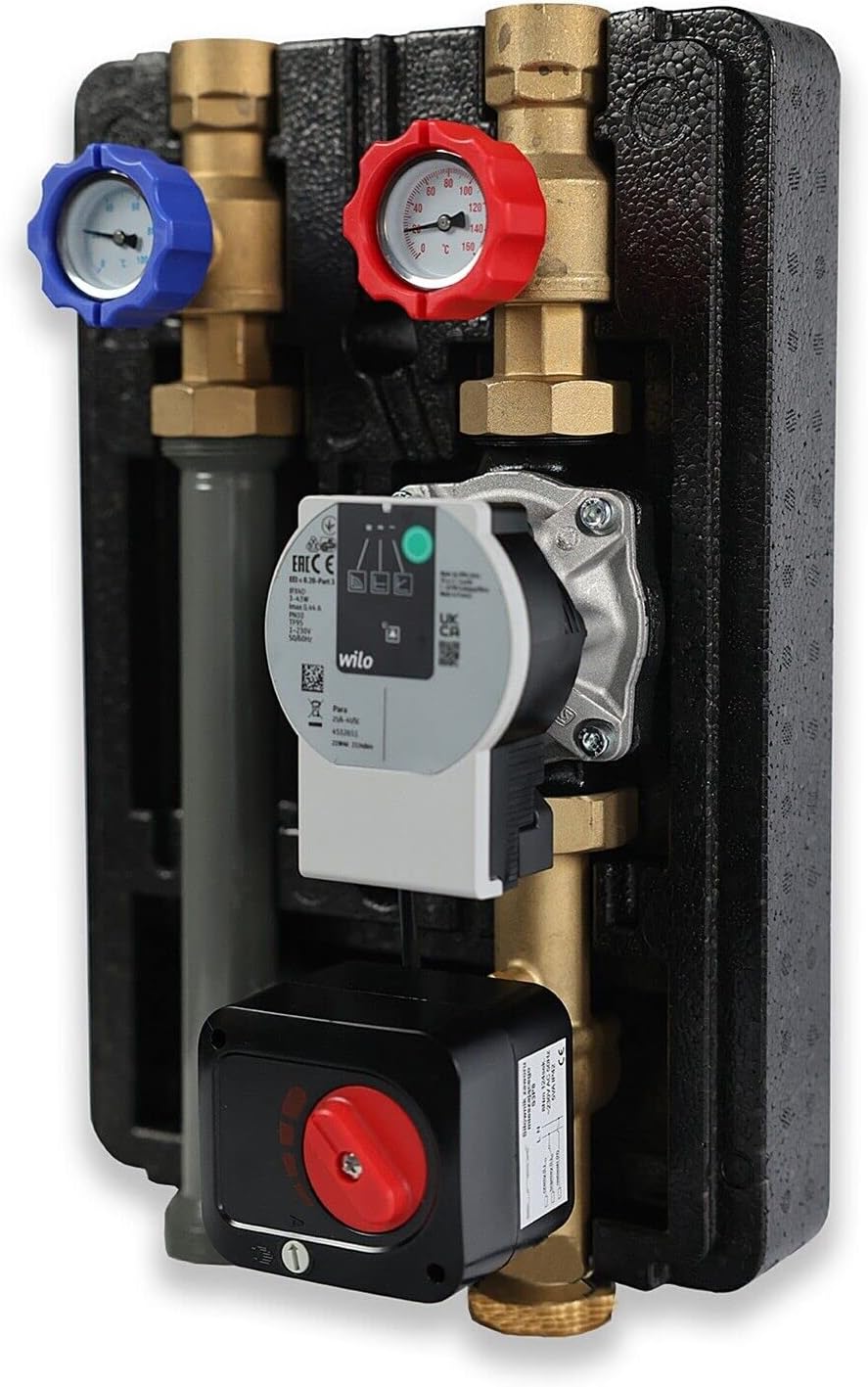

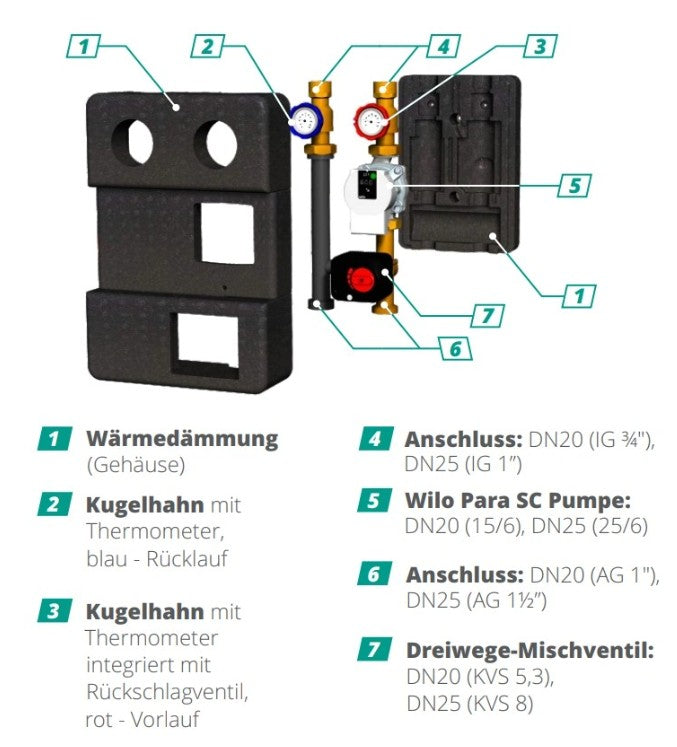

Equipment of the pump group

  • two ball valves with integrated thermometers and a check valve on the supply line
  • Wilo Para SC circulation pump with 130 mm spacing
  • Three-way mixing valve with servo motor
  • Thermal insulation.

Characteristics:

  • Removable housing insulation
  • Wilo Para SC 25/6 high-efficiency pump (constant speed in 3 stages) 130mm installation length
  • 3-way mixer with actuator

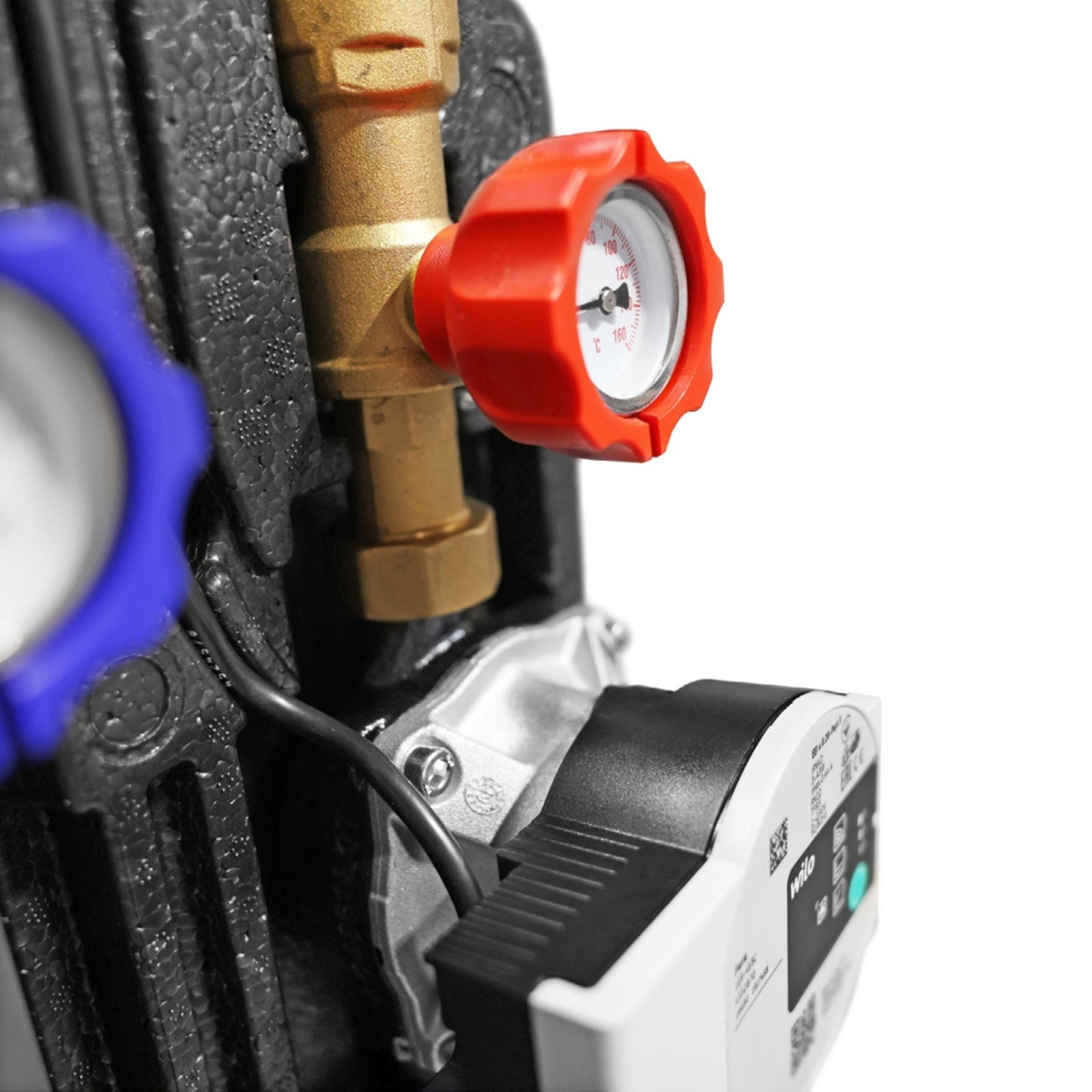

  • Red supply line: Thermometer (0-160°C) with ball valve and check valve
  • Return line (blue): Thermometer (0-100°C) with ball valve and check valve
  • Connections at the top: DN20 = 2x IG 3/4" / DN25 = 2x IG 1"
  • Connections at the bottom: DN20 = 2x AG 1" / DN25 = 2x AG 1 1/2"
  • Distance between flow and return pipes: 125 mm
  • Pressure: max. 6 bar
  • Temperature: max. 90°C
  • Dimensions: 390 x 275 x 140 mm (H x W x D)
  • Weight: DN20 = 6.5 kg / DN25 = 6.9 kg
  • 230V/ 50 Hz

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

Technical Data

Download Data sheet Download PDF

Installation

Notes

Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.

Manufacturer Information

SUNEX SA Ziegelweg 7 02906 Niesky Poland service@sunex-deutschland.de https://sunex-deutschland.de/
