Pump group for central heating - Two-way Hydra GPO DN 25 - Heating circuit set without mixing valve

Pump group for central heating - Two-way Hydra GPO DN 25 - Heating circuit set without mixing valve

Download Data sheet

239,00 €
239,00 € 279,00 €
Taxes included.

Shipping method: Freight forwarding

Delivery time: Approx. 2-3 working days for standard items, forwarding delivery approx. 10-15 working days

Free shipping in Germany for orders over €50. Other EU countries additional shipping costs .

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

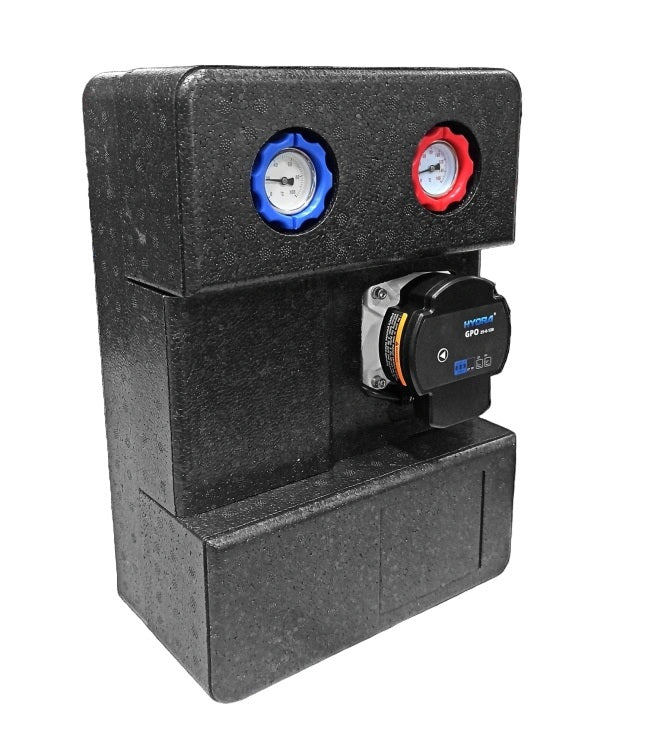

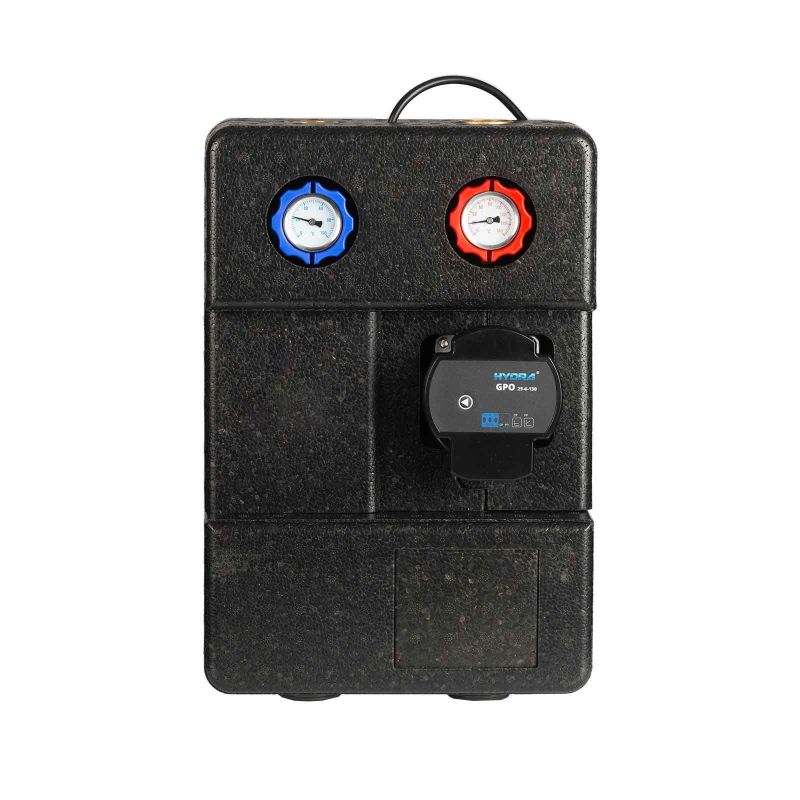

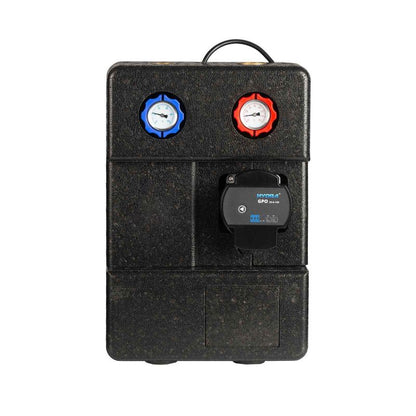

Hydra GPO DN 25 pump group - Pump group for central heating - Two-way without mixing valve

The pump unit is used to force the circulation of the working fluid in central heating, process heat, and cooling systems. Motor cover made of BMC. The circulation pump allows operation in: Δp-c, Δp-v, constant speed, and AUTO adjustment mode.

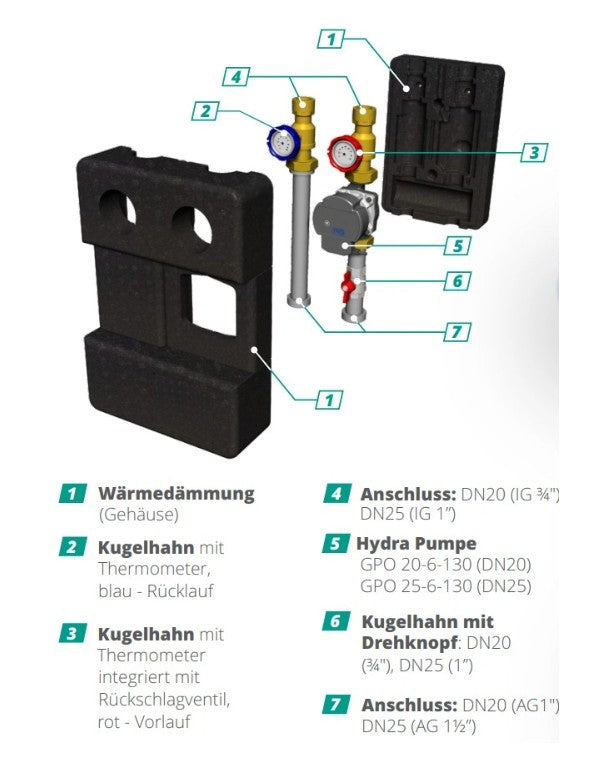

Equipment of the pump group:

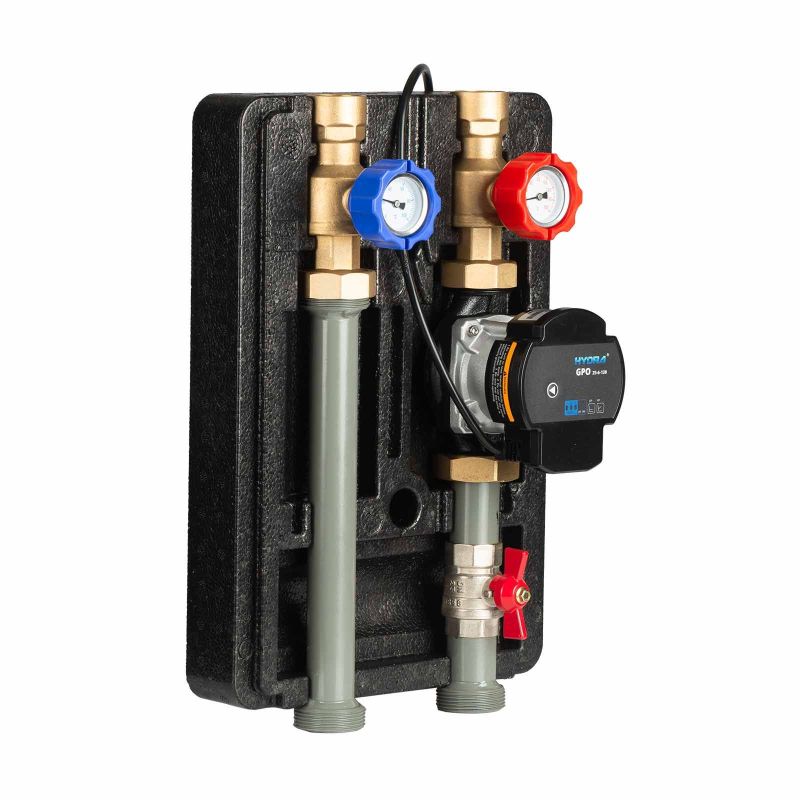

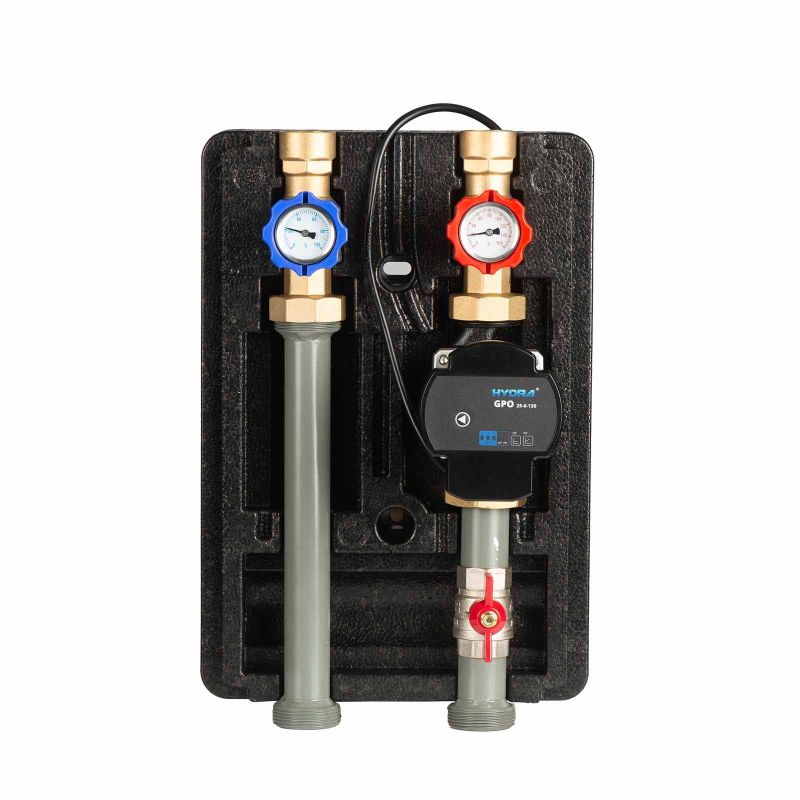

  • two ball valves with integrated thermometers and a check valve on the flow line
  • Hydra circulation pump with 130 mm spacing
  • Thermal insulation.

COMPACT HEATING CIRCUIT STATION

The SUNEX Hydra GPO DN25 is a pre-assembled two-way pump group with Hydra circulation pump (130 mm) – ideal for smaller heating and cooling systems in residential buildings or technical centers.


TWO-WAY SYSTEM WITH THERMOMETERS

Two ball valves with integrated thermometers (blue return, red supply with check valve) enable precise control and safe separation of supply and return.


ENERGY-SAVING PUMP

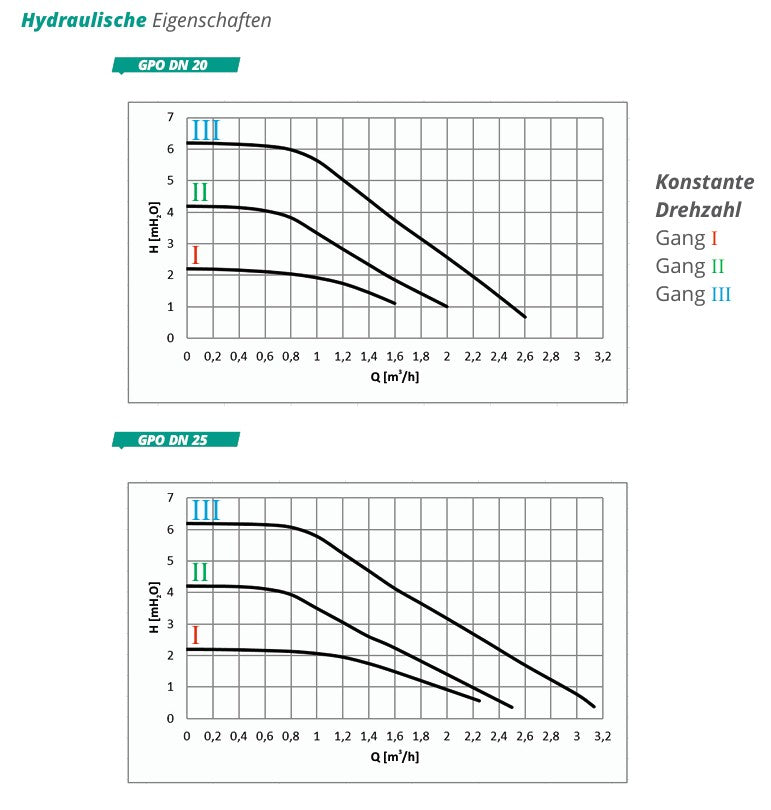

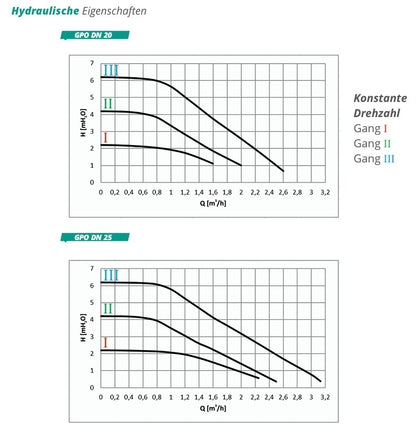

The Hydra GPO 25-6-130 supports AUTOADAPT, Δp-c, Δp-v and constant speed – maximum power consumption 65 W, EEI ≤ 0.20 – efficient operation with long service life.


EASY TO INSTALL & INSULATED

With connection dimensions of 1" internal thread (top) and 1.5" external thread (bottom), the station can be installed quickly. The integrated thermal insulation reliably protects against unnecessary heat loss.


TECHNICAL DETAILS

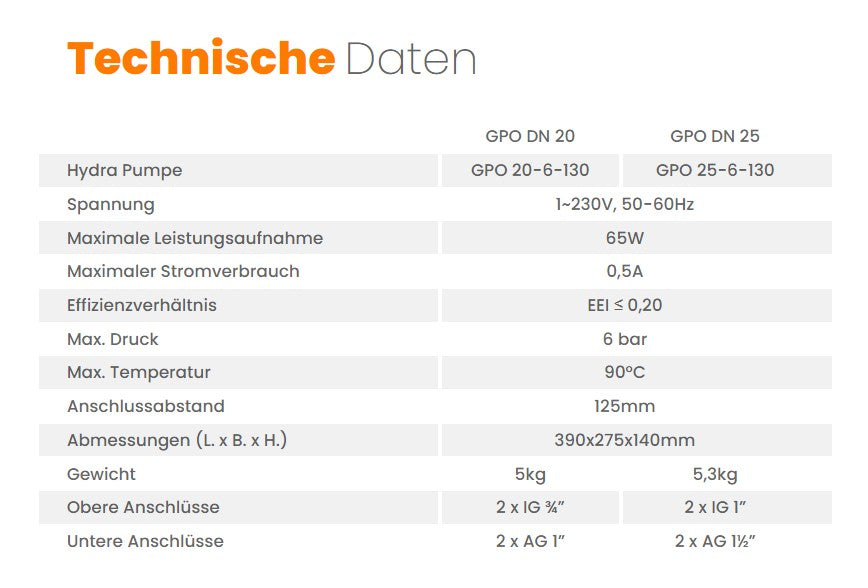

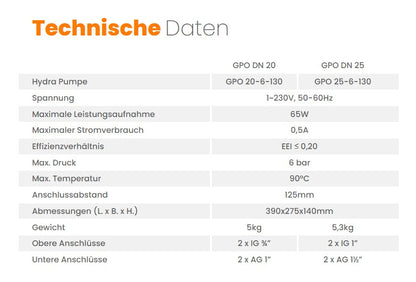

Max. pressure: 6 bar, Max. temperature: 90 °C, Dimensions: 390×275×140 mm, Connection spacing: 125 mm, Weight: 5.3 kg – ideal for low-temperature applications or efficient radiator heating.

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

Technical Data

Download Data sheet Download PDF

Installation

Notes

Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.

Manufacturer Information

SUNEX SA Ziegelweg 7 02906 Niesky Poland service@sunex-deutschland.de https://sunex-deutschland.de/
