Rotenso Windmi Heat Pump Monoblock Air-to-Water 10kW WIM100X1 BAFA - Complete Set

ROTENSO WINDMI WIM100X1 R14 10kW SINGLE PHASE MONOBLOCK AIR HEAT PUMP

Set offer consisting of:

• Windmi 10KW heat pump
• Buffer tank 50L
• Stand / frame
• 200l domestic hot water storage tank with Ceramica coating
• circulation pump
• Sludge separator with magnet
• 3-way valve

WHY VOTE FOR WINDMI?

• Complete monoblock: All the technology is contained in the outdoor unit – easier and faster to install.

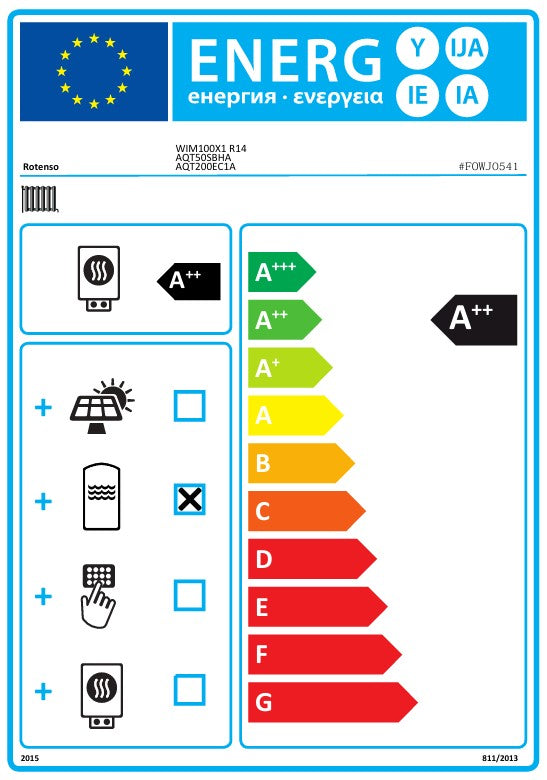

• Highest energy class: A+++ at 35 °C, A++ at 55 °C – ready for the future

• Max. flow temperature 62°C – suitable for underfloor heating and radiators

• Quiet and powerful: from only 45 dB(A) in quiet mode

• Wide operating range: Heating down to -25 °C and cooling down to 43 °C outside temperature

• Smart Grid Ready: optimally combinable with solar modules

• Integrated Wi-Fi: Easily control your heat pump via smartphone (TUYA app)

• Includes touchscreen controller with color display, clock functions and energy counter.

• Modbus communication for home automation and intelligent control

The Rotenso WINDMI WIM100X1 is a single-phase monobloc heat pump with a heating capacity of 10.0 kW (A7/W35). The unit boasts exceptionally high energy efficiency, achieving an A++ rating for a flow temperature of 35°C and an A++ rating for a flow temperature of 55°C. Its SCOP is 4.98 (for a supply temperature of 35°C), making it extremely efficient.

TEMPERATURE RANGE

The water outlet temperature in heating mode ranges from 20°C to 62°C, while in hot water mode it ranges from 40°C to 62°C.

ADAPTATION TO EXTREME CONDITIONS

The heat pump is designed for operation in harsh weather conditions, even at outdoor temperatures as low as -25°C. To ensure reliable operation at sub-zero temperatures, the unit is equipped with a drip tray heater that prevents condensate from freezing and the outdoor unit from icing up. This eliminates the risk of damage to the fan and heat exchanger.

CRANKCASE HEATING OF THE COMPRESSOR

The Rotenso WINDMI WIM100X1 heat pump is equipped with a compressor crankcase heater that warms the compressor oil at temperatures below 0°C, thus ensuring trouble-free start-up even in adverse weather conditions. Thanks to this feature, the heat pump operates flawlessly and the compressor's service life is extended.

ADDITIONAL HEATER

The heat pump is equipped with a 3 kW auxiliary heater, which is useful in emergency situations or at very low temperatures. The heaters support the economical operation of the unit while simultaneously ensuring the longevity and reliability of the heat pump.

EASY INSTALLATION AND OPERATION

The Rotenso WINDMI is easy to install, maintain, and use. Thanks to its two-door housing design, all pump components are easily and quickly accessible. The pump's quiet operation is achieved through the use of a single-fan design and a dual-rotor DC compressor.

REMOTE CONTROL

The Rotenso WINDMI heat pump can be controlled via a mobile app or a modern wired controller to make it easier to use.

WARRANTY AND SERVICE

The device comes with a 2-year warranty, and buyers can rely on professional customer service. The manufacturer offers free commissioning of the pump by an authorized service center and access to a nationwide service network to ensure rapid response times.

The Rotenso WINDMI WIM100X1 includes:

• outdoor unit,

• Wired control,

• control cable

• Hot water storage tank sensor,

• Plate heat exchangers,

• Flow sensor

• Diaphragmatic vessel,

• water pump

• Safety valve

• Vent valve,

• Y-type water filter.

TECHNICAL DATA

• Model: Rotenso Windmi Monoblock 10 kW

• Type: All-electric monoblock (outdoor unit)

• Heating output: 10.2 kW (at +7°C)

• Cooling capacity: 8.9 kW

• AREA: 4.3

• Power supply: 230V

• Noise level: 50 dB(A)

• Refrigerant: R32 (0.85 kg)

• Operating temperature: -25°C to +43°C

• Dimensions: approx. 1400 x 950 x 450 mm

• Weight: ± 110 kg

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
