Product Description

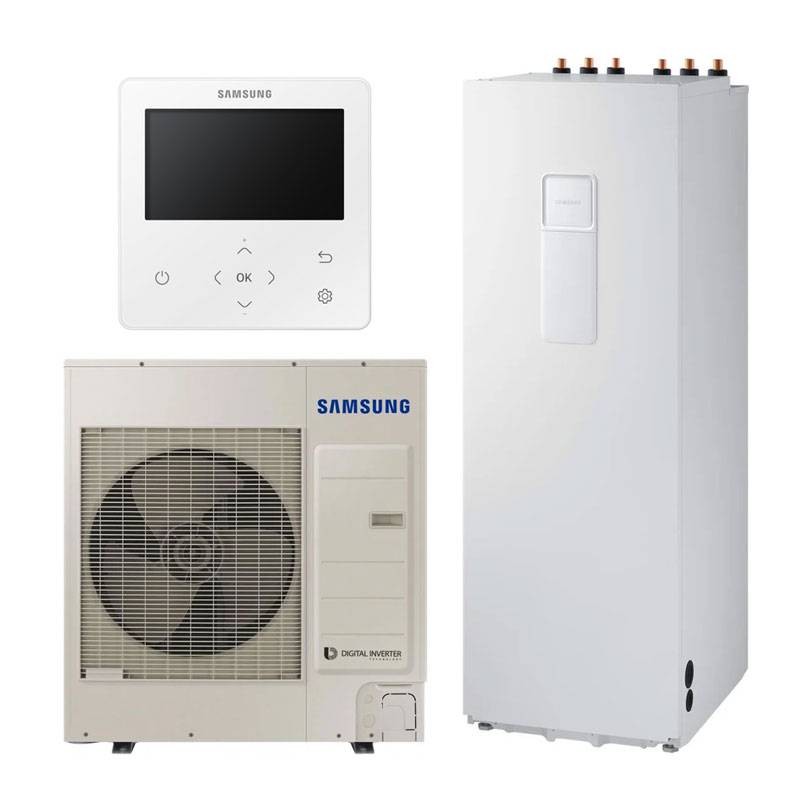

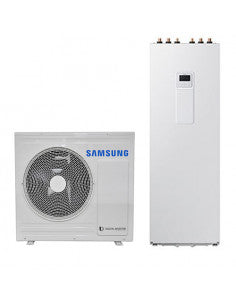

Samsung ClimateHub 9KW split heat pump - 200l complete system all-in-one A+++/A+
Samsung EHS Split Air-to-Water Heat Pump 8.7 kW with external unit (Art. AE090RXEDEG/EU) and internal unit (Art. AE200RNWSEG/EU), R32 refrigerant. Power supply: 220-240 V, single-phase, 50 Hz. (Complete heat pump for domestic hot water production)
ClimateHub Split

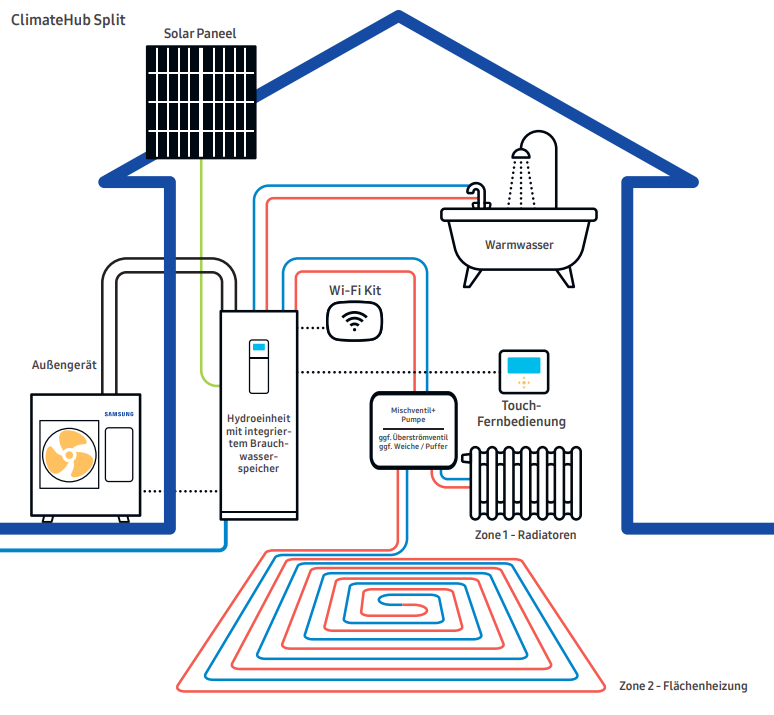

The Samsung ClimateHub Mono-Split consists of an outdoor unit that is connected to the hydro module via a refrigerant line.

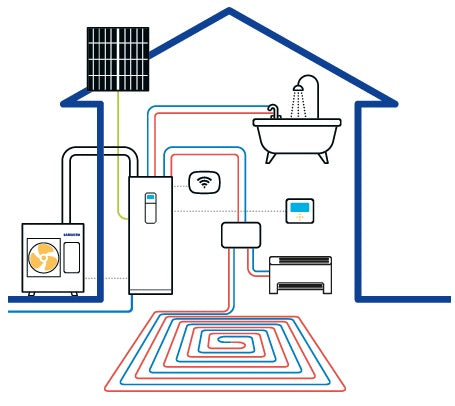

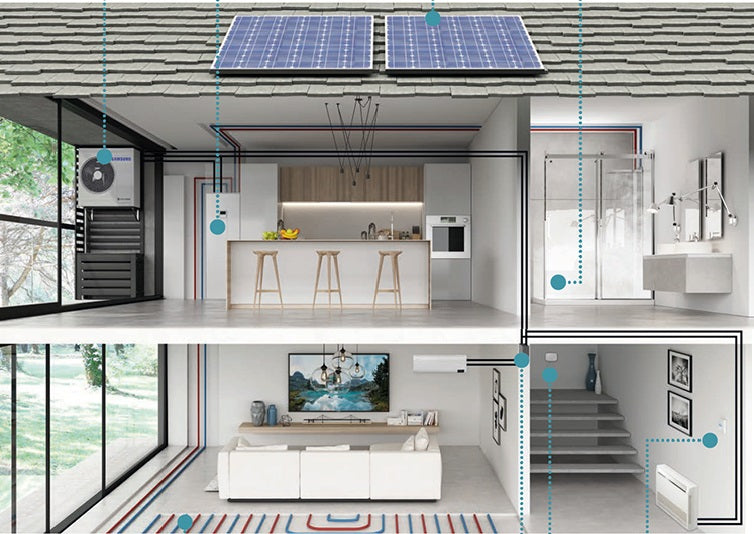

To achieve optimal energy efficiency, it is possible to connect the system to a smart grid or a solar system.

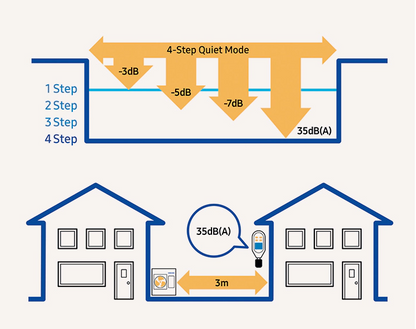

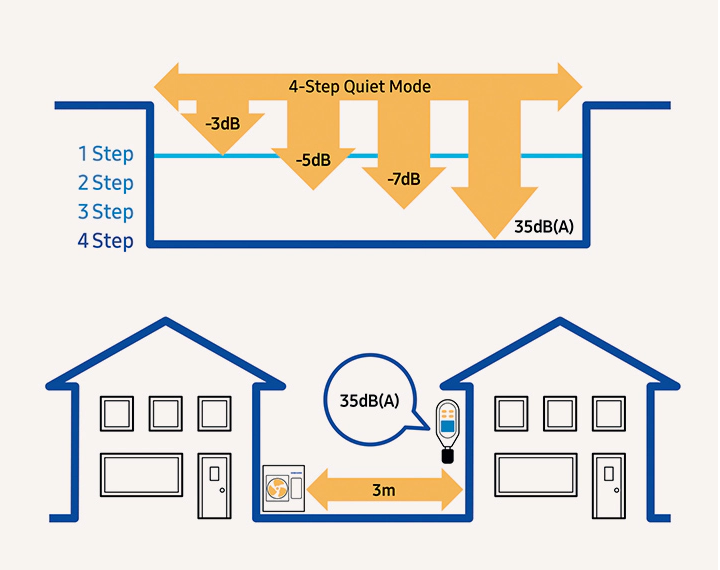

Quiet operation
With 4 individually selectable heating levels and a minimum noise level of 35dB(A), it is possible to run the system even at night without causing any significant acoustic disturbances.
Smooth installation

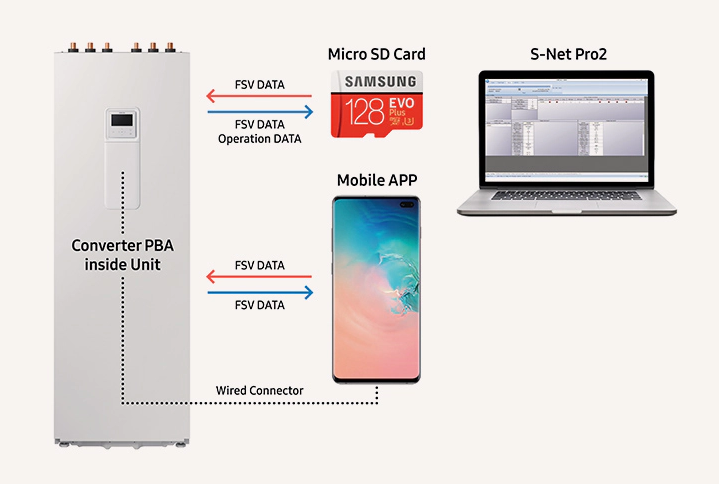

Thanks to an intelligently placed maintenance window and intuitive maintenance options, commissioning or troubleshooting is easily possible from the front of the device.
Maintenance options can be selected via a micro SD card or via the Samsung S-Checker application.

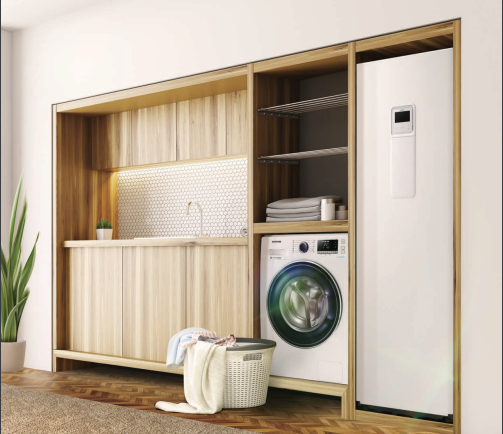

Compact design
The entire Samsung ClimateHub solution is built around a compact stainless steel tank in the hydro module. This compact design ensures that the ClimateHub
Devices are ideal for use in kitchens or utility rooms.

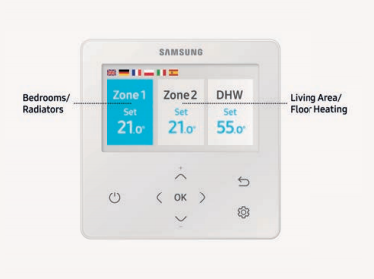

Intuitive operation:

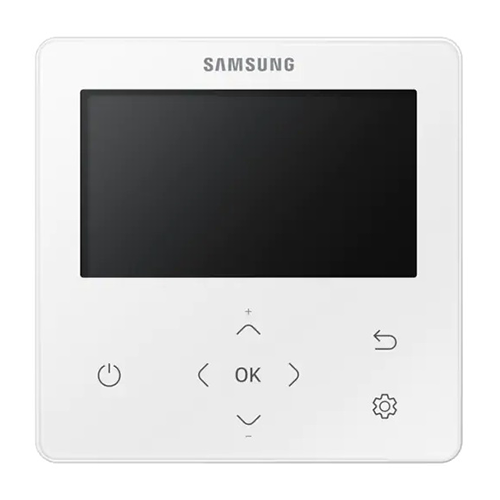

Intuitive touch remote control with color display.
For commissioning and full adjustment
or control of the system including energy monitoring,
Error memory, bivalent control, PV,
Solar thermal and smart grid ready.
Directly switchable to six languages.
With a new touch remote control, Samsung has made it possible to adjust the temperature at the touch of a finger.
Energy monitoring with a graphical interface now makes it possible to carry out energy optimization more easily, quickly and therefore more efficiently.
The remote control not only shines with its color display and comprehensive language options, but also with the ability to heat different zones separately.

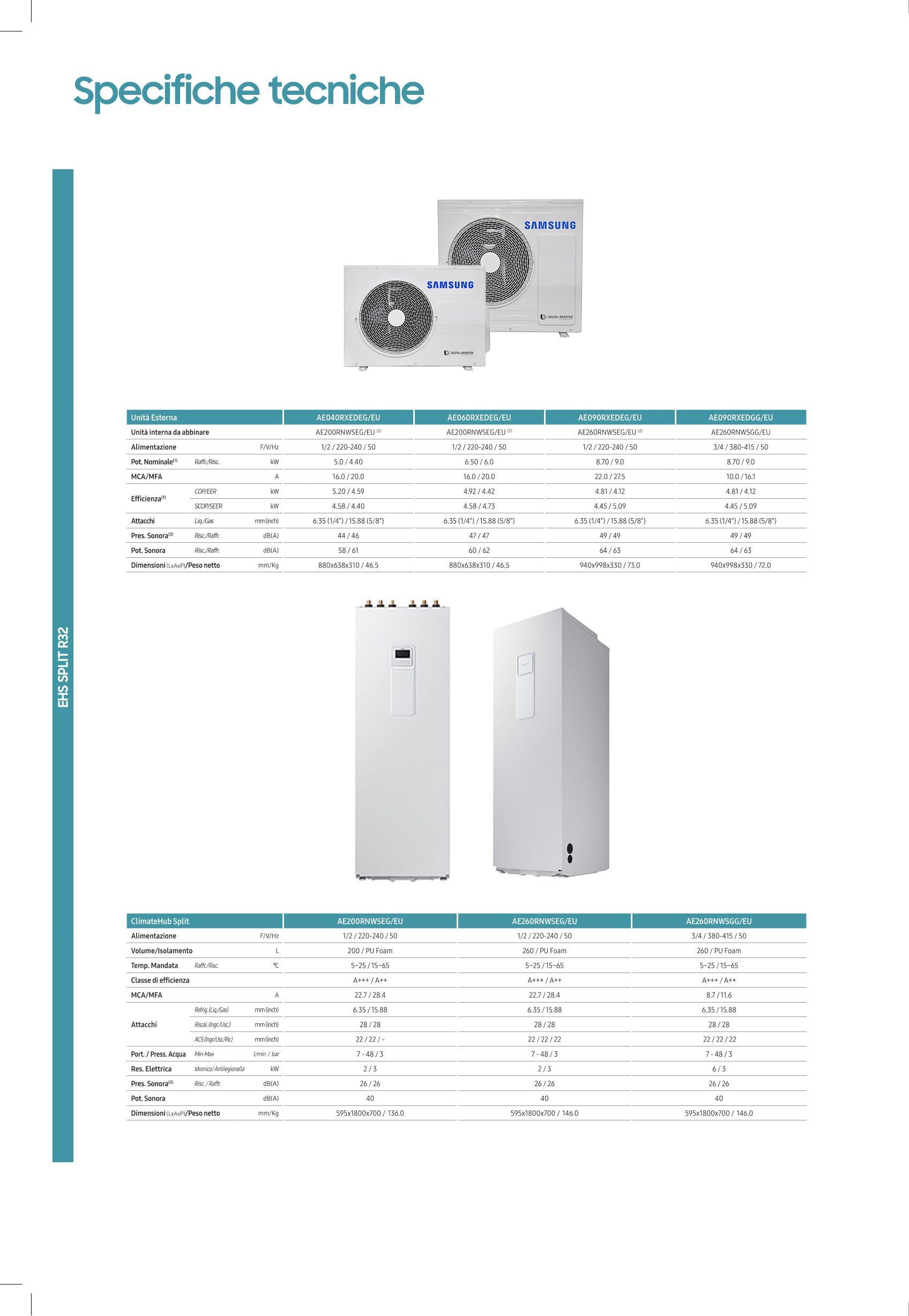

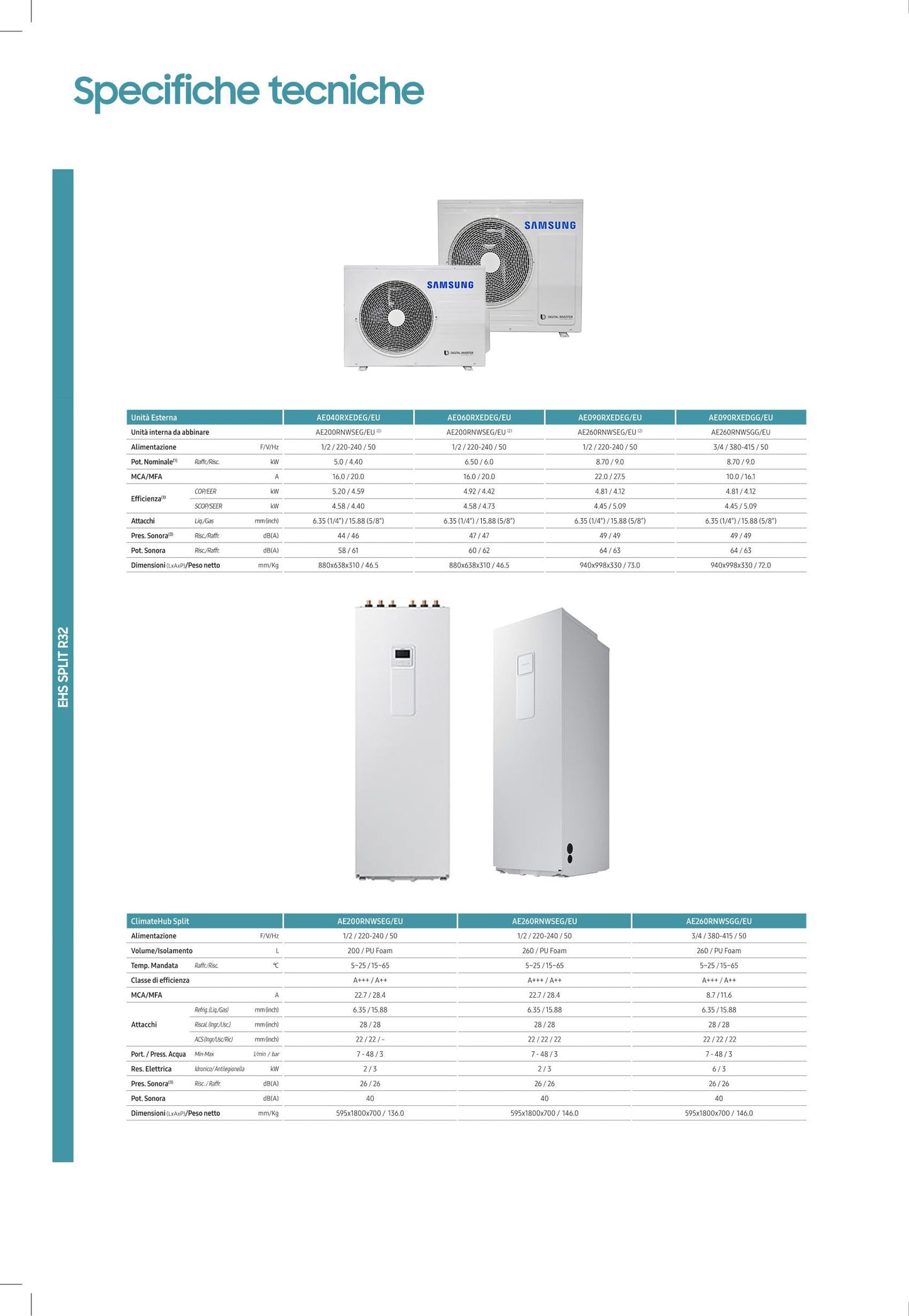

Technical data:

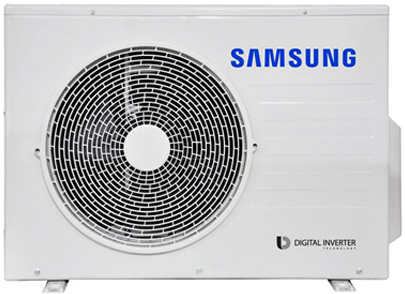

Outdoor unit AE090RXEDEG
Power supply 230V / 50Hz / 1Ph
Heating output (kW) 9.0
Cooling capacity (kW) 8.7
COP (A7/W35 - A7W55) 4.81 - 2.93
SCOP (35°C / 55°C) 4.45 - 3.24
Water flow temperature (min. - max.) 15 - 65 °C
Sound pressure level 49 dB(A)
Dimensions (W x H x D) 940mm x 998mm x 310mm
Weight (kg) 73.0
Gas line diameter 5/8"
Fluid line diameter 1/4 "
Operating temperature (room heating / hot water) -25 to +35 °C / -25 to +43 °C
Refrigerant R32
Indoor unit:
Hydro module AE200RNWSEG
Volume (L) 200
Dimensions (W x H x D) 595mm x 1800mm x 700mm
Weight (kg) 136.0
Compact monoblock design with 200l stainless steel domestic hot water tank,
Coiled tube heat exchanger and legionella circuit.
The built-in additional heaters - 3 kW/h
Domestic hot water or 2 kW/h (optional 4 kW or 6 kW)
Heating circuit – guarantee additional system safety.
Integrated high-efficiency circulation pump,
3-way switching valve,
Flow sensor for energy monitoring,
expansion tank,
Temperature and pressure difference valve.
This package consists of:
1X Samsung ClimateHub AE200RNWSEG/EU Internal Unit

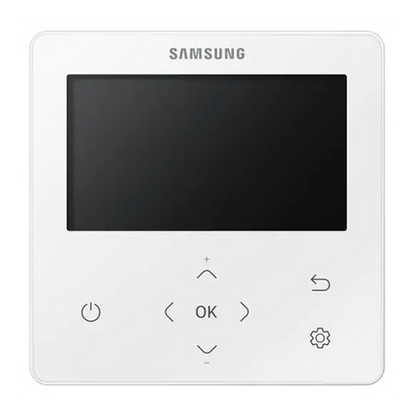

1X MWR-WW10N Wire Control for Samsung EHS Split
1X Samsung single-phase external unit AE090RXEDEG/EU
Important NOTE!
Installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certified contractors and special qualifications) must be provided. Failure to provide such proof will void any warranty and guarantee.
Technical changes and errors excepted! Subject to prior sale! Illustration similar!
