Sauermann condensate pump 20 l/h signal white Delta Pack 10CE05UN23

Sauermann condensate pump 20 l/h signal white Delta Pack 10CE05UN23

Regular price 129,98 €
129,98 € Sale price Regular price 179,00 €
Taxes included.

Free Shipping

Delivery time: Approx. 2-3 working days

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

Sauermann condensate pump 20 l/h signal white Delta Pack 10CE05UN23 (L750xW80xH60mm)

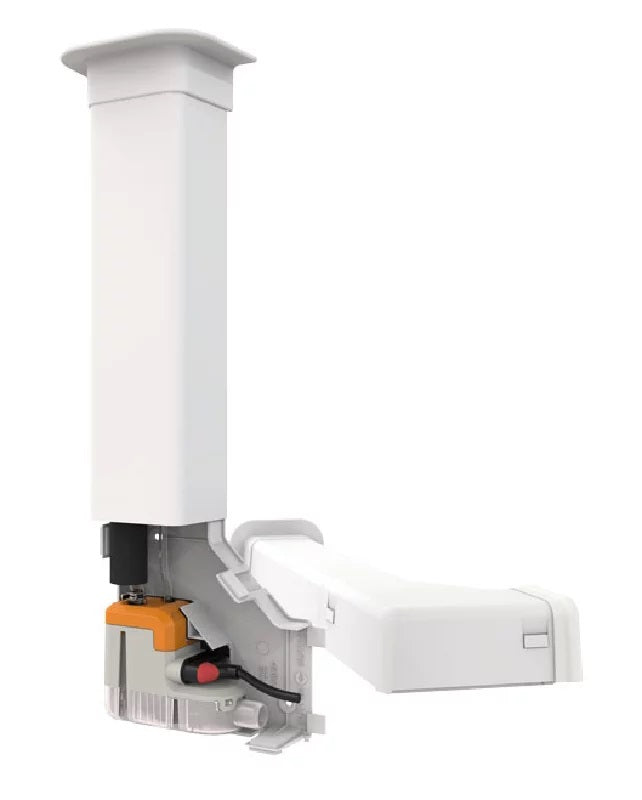

The Delta Pack mounting kit (L750xW80xH60mm) includes the Si-10 UNIVERS'L condensate pump, a cable duct, a 2-part elbow (housing and cover), screws and a rubber seal.

The cable duct impresses with its timeless design and is available in an attractive signal white color. This color variant is ideally matched to the latest wall-mounted air conditioning units, ensuring harmonious integration into various interior designs.

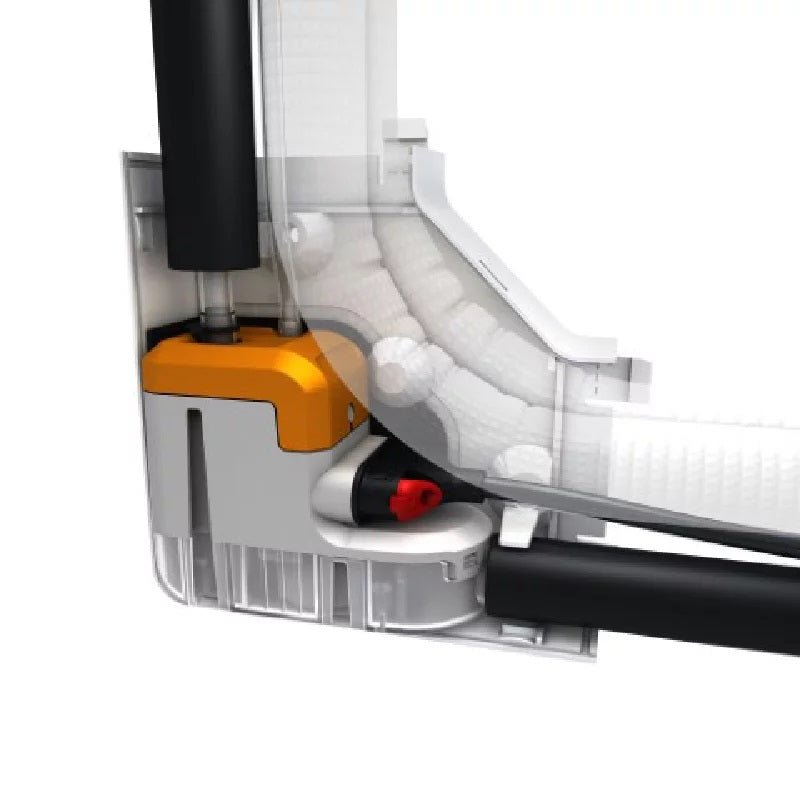

Equipped with patented technology, the oscillating piston pump sets new standards in noise reduction with its exceptionally quiet operation. Even when pumping small particles, the pump remains powerful and reliable without jamming. This makes it an ideal solution for a wide range of applications requiring consistently high performance and reliability.

Another notable feature of the pump unit is the transparent and easy-to-clean float switch. This not only ensures easy monitoring of pump operation but also facilitates uncomplicated maintenance and cleaning. The plug-in cable connection further contributes to user-friendliness, ensuring that installation and maintenance of the device technology can be carried out quickly and without great effort.

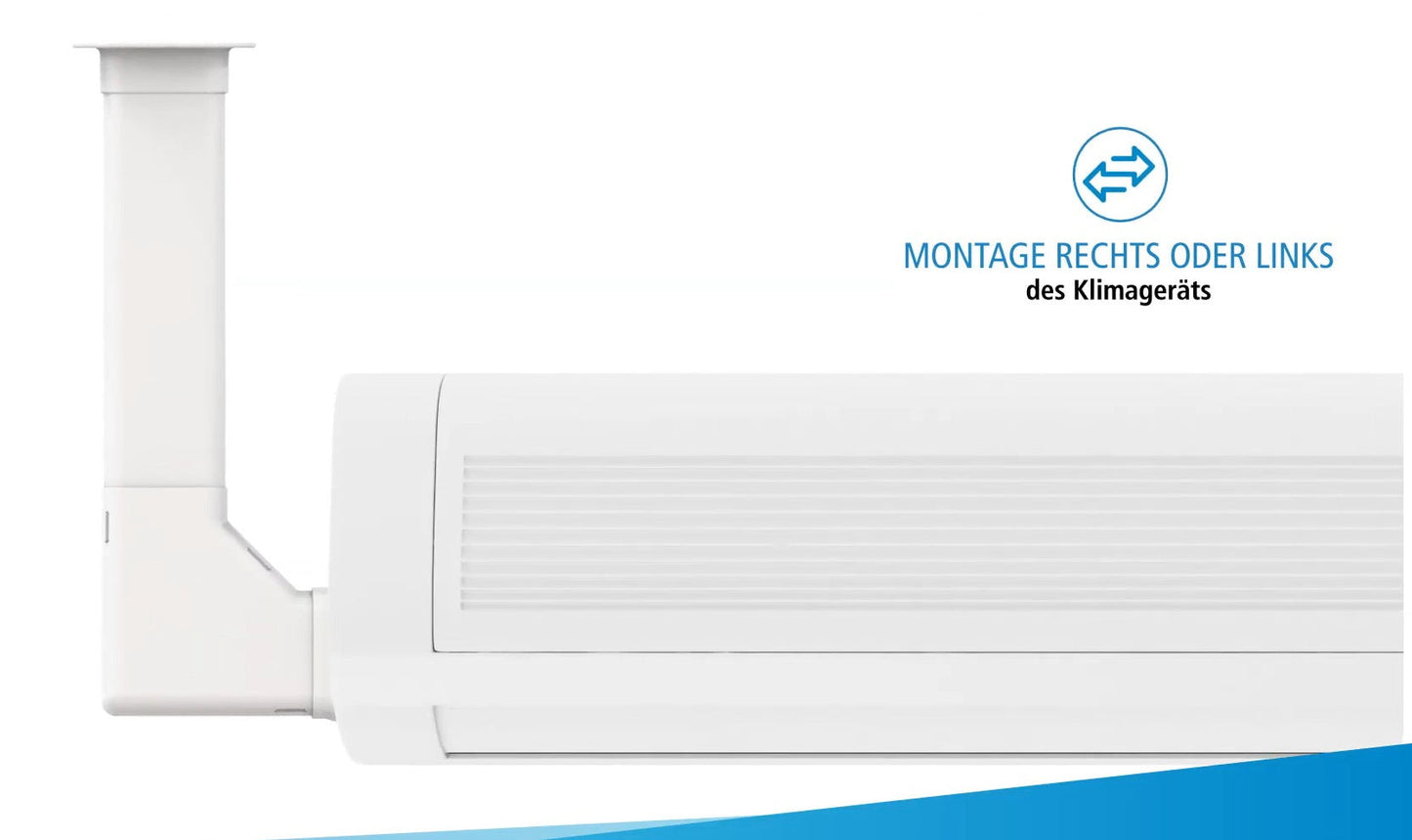

The pump unit can be mounted either to the left or right of the air conditioning system, allowing for flexible adaptation to the spatial conditions. This increases versatility and user-friendliness, creating an efficient and attractive solution for air conditioning residential and commercial spaces.

Characteristics:

  • Intuitive and quick assembly
  • Easy maintenance - no special tools required
  • Pump is very easy to remove by simply disconnecting all connections and by redesigned, simple channel clip system
  • Degree of contamination of the float switch visible from the outside
  • Condensate tray of the float switch very easy to clean
  • Sufficient space for common refrigerant lines
  • Also suitable as a replacement set for many existing installations
  • Robust and reliable mechanical, acid-resistant float switch
  • Very long service life thanks to coordinated filtration and pump system
  • Factory-installed ventilation valve for longer service life
  • Powerful patented pump technology for reliable and very quiet operation
  • Insulated hose line for additional noise reduction

Scope of delivery:

  • 1x Si-10 UNIVERS'L oscillating piston pump with integrated float switch
  • 1x transparent PVC hose inner Ø 6mm – L: 1 m, insulated to 800 mm, fitted with Drain Safe ventilation valve
  • 1x 2-part channel angle
  • 1x ceiling passage piece
  • 1x seal between channel and angle
  • 1x rubber seal between angle and air conditioner
  • 1x 650 mm rubber hose – inner diameter 15 mm
  • 1x ventilation hose
  • 1x 6 screws and dowels for mounting the cable duct and angle piece
  • 1x 4 double wire clamps Ø 16 mm, 1 double wire clamp Ø 6 mm
  • 1x 2-part duct 750 mm, 80 x 60 m

Technical data:
Dimensions
Width: 80 mm
Height: 60 mm
Length: 750 mm

Generally:
Alarm contact: No
Connectable indoor units: Wall-mounted units
Design: Pump in L-channel
Color: RAL 9003 - Signal white
Sensor: float switch
Pressure
Operating pressure
Capacitor: 14 m
Switch-off point: 13 mm
Switch-on point: 18 mm
Electrical data
Insulation class
double insulated
Protection class: IPX4
Supply voltage: 230/1/50 V/Ph/Hz

Performance data:
max. delivery head: 10 m
Max. flow rate: 20 l/h
max. power: 20 kW
Pipe connections
Condensate line:
15 - 16 mm Øint inlet
6 mm Øint drain
Sound data
Sound pressure level: 20 dB(A) at 1m distance
Temperature data
Overheating protection: 115 °C

Subject to technical changes and errors! Subject to prior sale! Illustration similar!

Technical Data

Installation

Notes

Refrigerant leaks contribute to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.

Manufacturer Information

Sauermann GmbH Leibnizstraße 6 74211 Leingarten Germany + 49 (0)7131 39 99 90 info.germany@sauermanngroup.com
