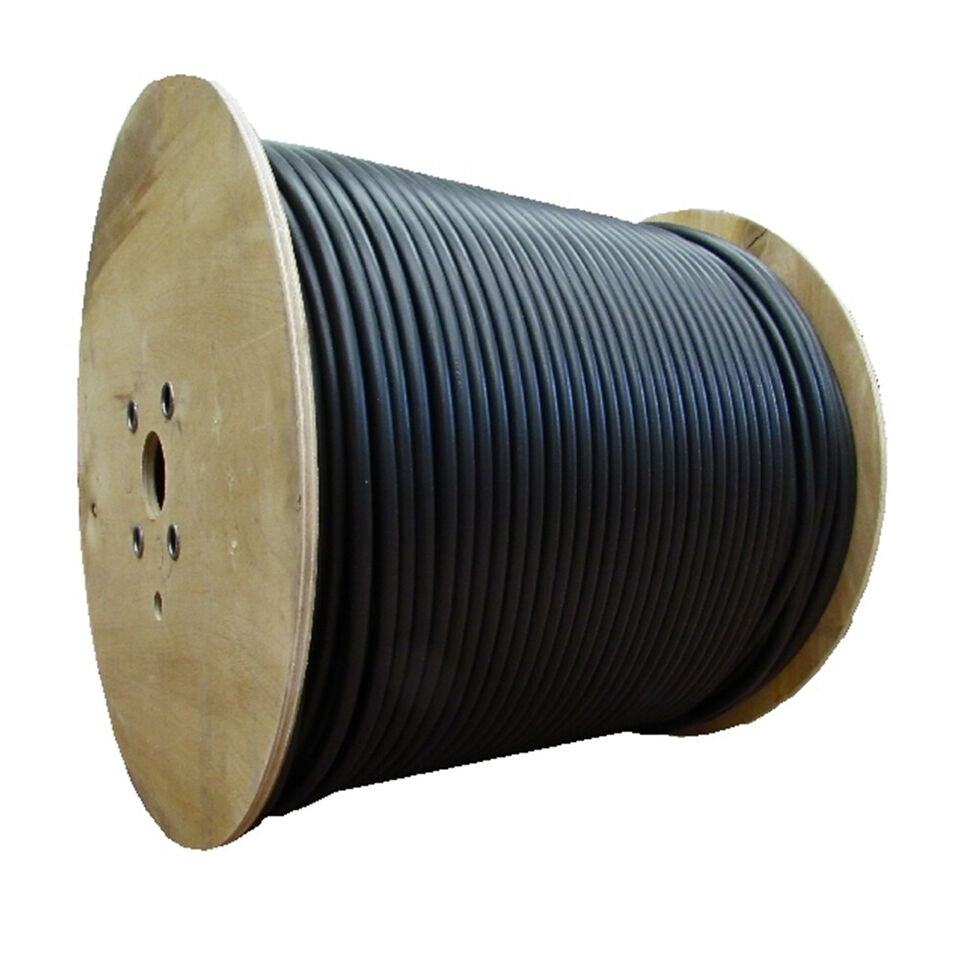

Solar cable H1Z2Z2-K 6mm² 500m WH/BK DB+ cable drum black, photovoltaic / solar cable

Solar cable H1Z2Z2-K 6mm² 500m WH/BK DB+ cable drum black, photovoltaic / solar cable

Regular price 525,00 €
525,00 € Sale price Regular price
Taxes included.

Free Shipping

Delivery time: Approx. 2-3 working days

Get personal consultation: 0157 / 35503770

Or send us a request via our contact form

View full details

All product information at a glance

Product Description

Solar cable H1Z2Z2-K 6mm² 500m WH/BK DB+ cable drum black, photovoltaic / solar cable

Solar cable 6 mm² black DB+ H1Z2Z2-K photovoltaic solar cable 500 m
500m solar cable solar line H1Z2Z2-K PV 6mm² pure copper cable photovoltaic

The high-quality H1Z2Z2-K solar cable - the ideal solution for your photovoltaic system
H1Z2Z2-K solar cable is specially designed to ensure highest performance and reliability in solar applications.
The cable is made of high-quality copper conductors, ensuring efficient power transmission. Thanks to its robust construction and UV-resistant outer sheath, it offers excellent protection against adverse environmental influences such as sunlight, moisture, and temperature fluctuations. The H1Z2Z2-K solar cable is not only high-performance but also environmentally friendly. It is halogen-free and flame-retardant, ensuring additional safety and sustainability.

Cable type: H1Z2Z2-K
Conductor: copper
Length: 500mColor: Black
Scope of delivery: 1 x 500m H1Z2Z2-K solar cable 6mm

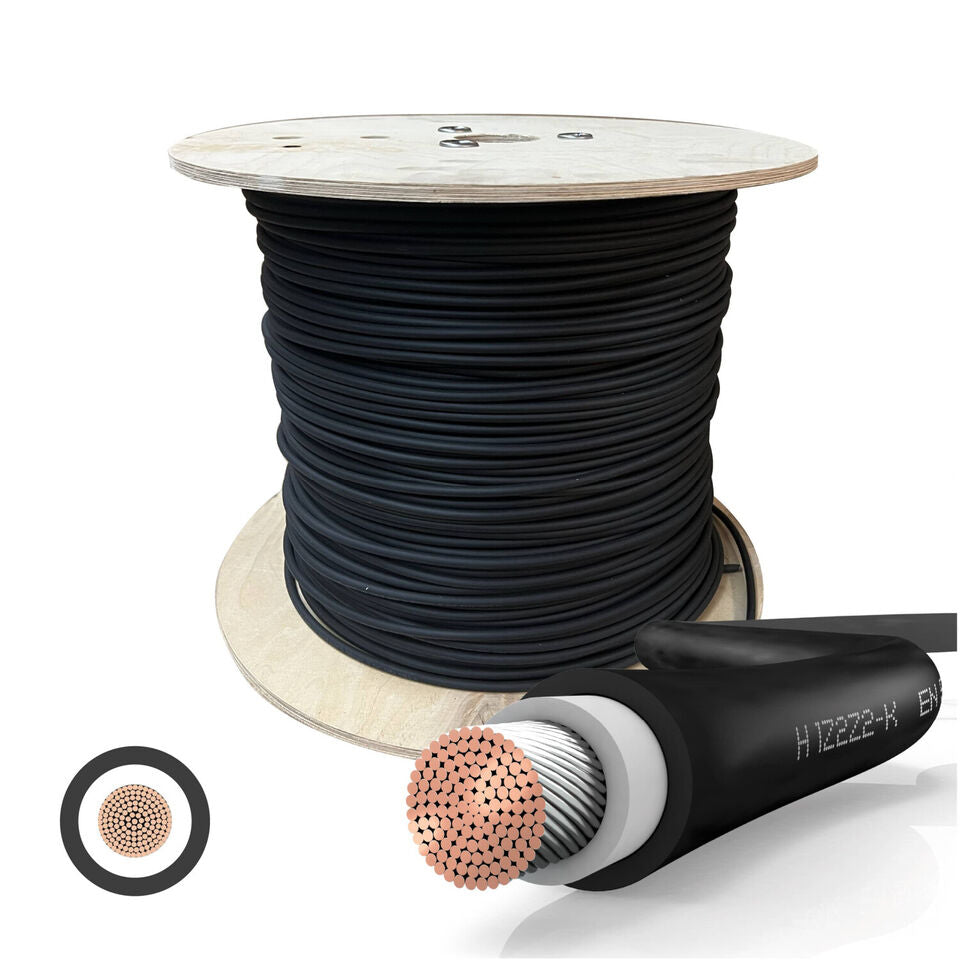

Ladder structure:

1. Conductor: Fine-stranded tinned copper wires, according to IEC 60228, Class 5
2. Core insulation: Electron beam cross-linked polyolefin copolymer
3. Outer jacket Electron beam cross-linked polyolefin copolymer Outer jacket color: black or black with red or blue stripe
Electrical properties

Nominal voltage: U0 /U according to IEC AC 600/1000 V DC 900/1500 V
Max. permissible system voltage: 1.8 kV DC (conductor/conductor, non-earthed system) according to TÜV 2 PfG 1169/08.2007 Test voltage AC 6.5 kV


Thermal properties:

Temperature range fixed installation: -40° C to +120° C max. conductor temperature (according to EN 60216-2)
Temperature range according to permanently installed: -40 °C to +90 °C ambient temperature TÜV 2 PfG 1169/08.2007
Flexible installation temperature: max. -25 °C
Thermal pressure resistance according to EN 60811-3-1
Damp heat test according to EN 60068-2-78 at 85% humidity
Mechanical properties

Minimum bending radius occasionally moved: 15 x cable diameter
permanently installed: 5 x cable diameter
Dynamic penetration according to DKE requirement profile PV1-F AK 411.2.3 Appendix F
Tear resistance according to DKE requirement profile PV1-F AK 411.2.3 Appendix G
Testing of tear strength and elongation according to EN 60811
Chemical properties

Weather/UV resistance according to HD 605/A1
Ozone resistance according to EN 50396
Halogen-free according to EN 50267
Fire behavior flame retardant according to IEC 60332-1-2
Acid and alkali resistance according to EN 60811-2-1 (oxalic acid and caustic soda)


*Note VAT law
Note regarding Section 12 Paragraph 3 of the Sales Tax Act: regarding VAT exemption:

By placing an order, the buyer confirms that the requirements of Section 12 Paragraph 3 of the Value Added Tax Act (UStG) are met and that he is entitled to do so.
If the conditions according to the Sales Tax Act §12 para. 3 UStG are met, the tax rate is 0% VAT. The total price shown above does not change as a result.
In accordance with this assumption, a VAT rate of 0% is also shown on the invoice.
The buyer can revoke this acceptance or confirmation at the time of purchase and also immediately after purchase by simply sending us a message (e.g. via eBay message or email).
The buyer shall be liable to us for any VAT that may be payable to the tax authorities for his false statements, if and to the extent that we suffer damage as a result of his false statements.

For buyers who do not meet the requirements of Section 12, Paragraph 3 of the Value Added Tax Act (UStG), the stated price includes 19% VAT. This does not affect the total price shown above. In this situation, a VAT rate of 19% will be shown on the invoice, along with the corresponding VAT included.

“Extract from Section 12 UStG – here paragraph 3:

(3) The tax shall be reduced to 0 percent for the following transactions:

1. the supply of solar modules to the operator of a photovoltaic system, including the components essential for the operation of a photovoltaic system and the storage units used to store the electricity generated by solar modules, if the photovoltaic system is installed on or near private residences, apartments, public buildings, and other buildings used for public welfare activities. The requirements of sentence 1 are deemed to be met if the installed gross capacity of the photovoltaic system, according to the market data register, does not exceed or will not exceed 30 kilowatts (peak);
2. the intra-Community acquisition of the goods referred to in point 1 which satisfy the conditions laid down in point 1;
3. the import of the items referred to in point 1 which meet the conditions laid down in point 1;

4. the installation of photovoltaic systems and storage systems used to store the electricity generated by solar modules, provided that the supply of the installed components meets the requirements of paragraph 1."
