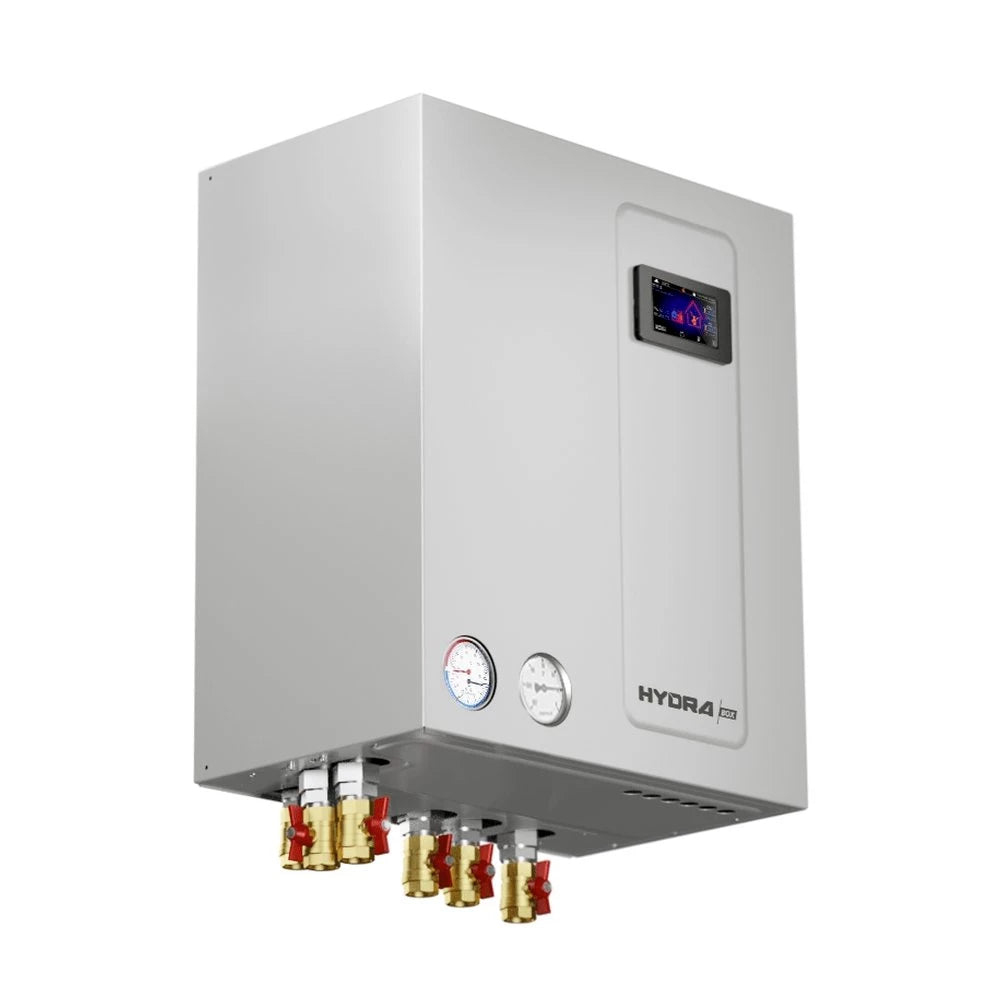

Hydraulic module Hydra Box:

The Hydra Box M EVI is a compact indoor module for heat pumps, combining all essential hydraulic components for the safe, efficient, and rapid operation of heating and domestic hot water systems. The pre-assembled system significantly simplifies installation, and the space-saving design allows optimal access for maintenance and servicing.

Technical highlights

• Functionality and application of Insyg Alfa ( Insyg Cloud module integrated )
• Equipped with:
  Three-way valve for switching between central heating and hot water circuit
• Continuous heating element (4kW, 6kW)
• Magnetic filter with dirt separator
• Expansion vessel and safety valve, filling connections
• Integrated circulation pump
• It is designed for the NEXUS M EVI pumps.
• Dimensions (W x D x H): 375 × 600 × 825 mm
• Weight: only 45 kg – ideal for quick assembly and easy handling
• Installation location: Indoor
• Application: Heating and hot water support for heat pumps with EVI technology

Features & Functions

• Integrated hydraulic unit: Contains all essential components for operational reliability and efficient system integration.
• Elegant, compact design: Saves valuable space and blends discreetly into modern utility rooms.
• Maintenance-friendly: Thoughtful design for easy access to all important components.
• Intelligent control: Comprehensive system controller for controlling heat pumps, heating and domestic hot water preparation – also with remote access option depending on the version.

Advantages at a glance

• Quick & easy installation – factory pre-assembled
• Space-saving and easy to maintain – ideal for single-family homes
• Compatible with Sunex split heat pumps (e.g. Nexus Split EVI)
• Modern design & low weight – 45 kg

Technical data

• Application example: Nexus M8 EVI, Nexus M13 EVI
• Circulation pump: Grundfos UPM3L
• Electric heating element: 6kW
