• One of the most cost-effective ways to heat buildings. The system also works at temperatures as low as -25°C.
• High efficiency and long service life thanks to the use of components from world-renowned manufacturers
• A comprehensive control system ensures optimal monitoring and security. Internet control is possible. A wired control panel is included as standard.
• High ease of use. Intuitive and simple operation of the controls.
• The device's compact design allows for quick installation.
• Energy class A++ at 55°C flow temperature, A+++ at 35°C flow temperature

The ultimate feeling of comfort

NEXUS M EVI heat pumps enable optimal room temperature with minimal energy consumption. They allow the right air temperature to be achieved while simultaneously providing access to hot water to fully meet consumer needs.

Advantages of monoblock construction

The pump is designed entirely for outdoor installation. A key feature of the pump is that the entire cooling system is housed in a single unit, with only the pipes supplying heat to the building extending outside.

Working under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Working under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Technical data:

• SCOP (W35) temperate climate: 4.46 kWh
• SCOP (W55) temperate climate: 3.51 kWh
• Energy efficiency class (W35): A+++
• Energy efficiency class (W55): A++
• Compressor: Panasonic (rotating, multi-stage vapor injection)
• Expansion valve: electronic
• Number of fans: 2
• Circulation pump: no
• Water-side pressure loss: 35 kPa
• Control: Standard control module
• Outside temperature: -25 to +45°C
• Flow temperature: 55°C
• Recommended heating water flow rate: 3.1 m³/h
• Work equipment / GWP: R32 / 675
• Amount of refrigerant R32: 2.7 kg
• Defrosting method: Hot gas (reverse cycle)
• Sound power level: 57dB
• Dimensions: 1050x480x1330mm
• Weight (net/gross): 170/180 kg
• Power supply: 380-450V 3~ 50Hz


Insyg Cloud + Antenna

The Insyg Cloud control module allows the manufacturer remote access to your heat pump. Sunex handles the complete configuration and maintenance of your heat pump.

The Insyg Cloud is used to operate the Sunex M EVI heat pump. It also controls two heating circuits and the domestic hot water circuit.
The device is equipped with a color touch panel.

The device can be connected to:

• 2 circulation pumps
• 2 mixing valves (opening and closing)
• electric heating element
• changeover valve
• circulation pump

The heating circuits are controlled based on the target temperature of the heating circuit.
(Sensors for circuits 1 and 2) and the room sensor or room thermostat (type On/Off).

Advantages of the Insyg Cloud:

• fast reaction time
• Touchscreen control panel.
  Control of heating circuits
• Management of heat generation for the hot water storage tank and the buffer storage tank
• Management of cooling generation for the buffer storage
• It is designed for the NEXUS M EVI pumps

Technical specifications of the electrical box:

• Power supply: 230V ± 10% / 50Hz*
• Maximum power consumption (no load): 30W
• Maximum load of the electric heating element: 4/6kW
• Dimensions (L x W x H) 151.5 x 43.9 x 87.7


Hydraulic module Hydra Box:

The Hydra Box M EVI is a compact indoor module for heat pumps, combining all essential hydraulic components for the safe, efficient, and rapid operation of heating and domestic hot water systems. The pre-assembled system significantly simplifies installation, and the space-saving design allows optimal access for maintenance and servicing.

Technical highlights

• Functionality and application of Insyg Alfa ( Insyg Cloud module integrated )

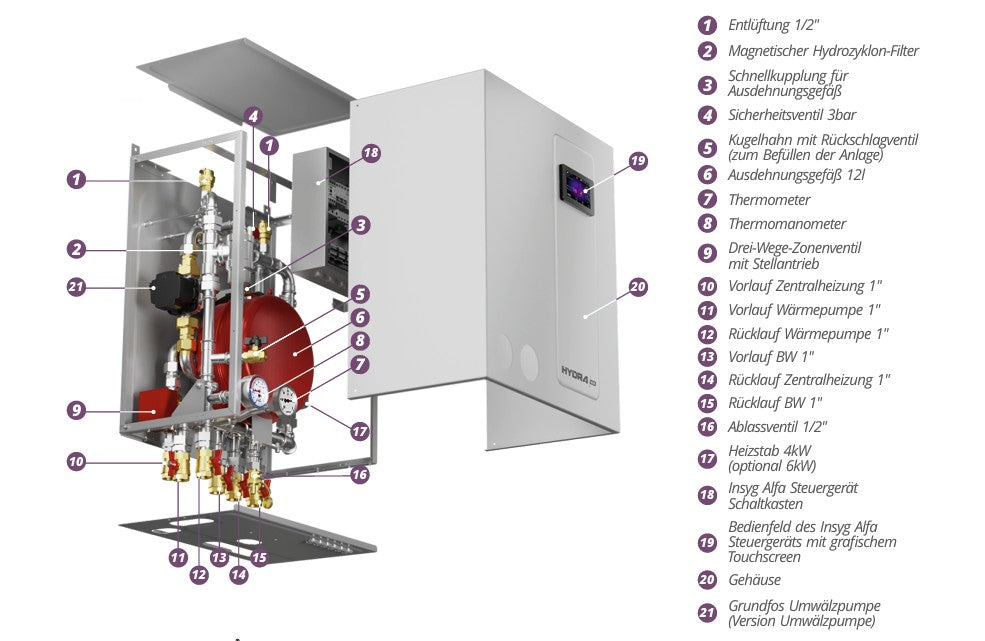

• Equipped with:
  Three-way valve for switching between central heating and hot water circuit
• Continuous heating element (4kW, 6kW)
• Magnetic filter with dirt separator
• Expansion vessel and safety valve, filling connections
• Integrated circulation pump
• It is designed for the NEXUS M EVI pumps.

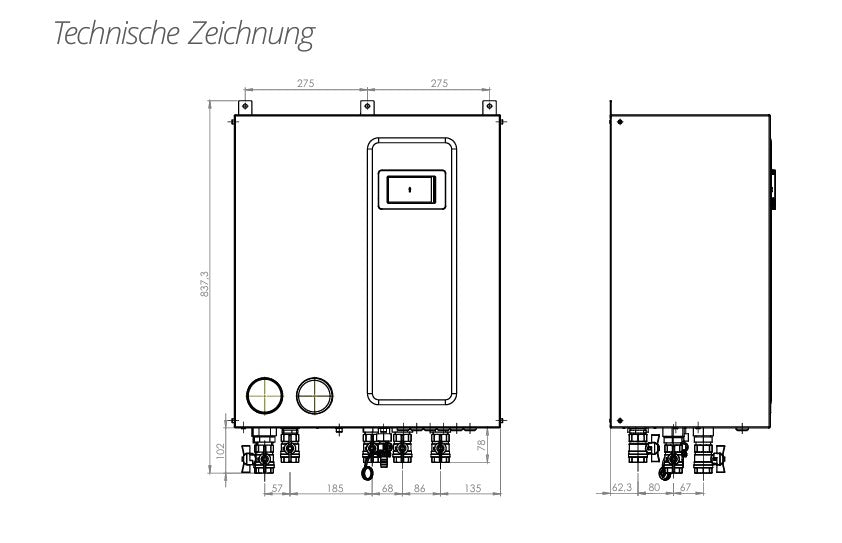

• Dimensions (W x D x H): 375 × 600 × 825 mm
• Weight: only 45 kg – ideal for quick assembly and easy handling
• Installation location: Indoor
• Application: Heating and hot water support for heat pumps with EVI technology

Features & Functions

• Integrated hydraulic unit: Contains all essential components for operational reliability and efficient system integration.
• Elegant, compact design: Saves valuable space and blends discreetly into modern utility rooms.
• Maintenance-friendly: Thoughtful design for easy access to all important components.
• Intelligent control: Comprehensive system controller for controlling heat pumps, heating and domestic hot water preparation – also with remote access option depending on the version.

Advantages at a glance

• Quick & easy installation – factory pre-assembled
• Space-saving and easy to maintain – ideal for single-family homes
• Compatible with Sunex split heat pumps (e.g. Nexus Split EVI)
• Modern design & low weight – 45 kg

Technical data

• Application example: Nexus M8 EVI, Nexus M13 EVI
• Circulation pump: Grundfos UPM3L
• Electric heating element: 4kW, 6kW
