Product Description

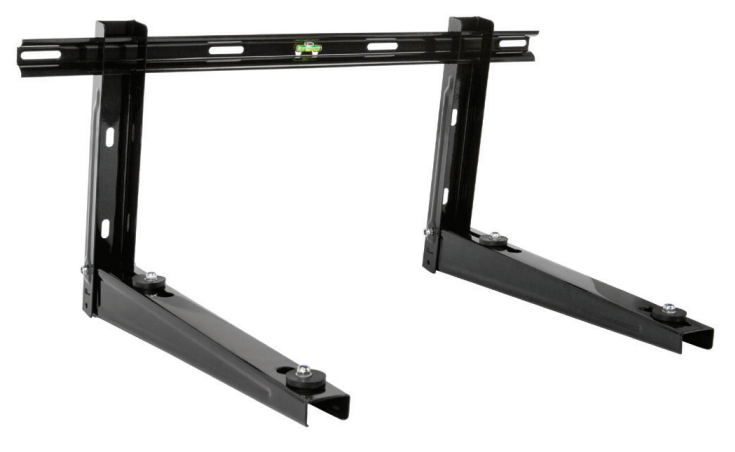

Wall bracket / wall console for air conditioners and heat pumps up to 150 kg including accessories - black - quick installation
Universal wall bracket with leveling crossbar for mounting the outdoor unit.
White color boom, powder coated, classic and elegant design.
Anti-vibration elements and set of mounting screws included.
The adjustable tilt angle and the correct distance between the arms ensure quick and easy installation. The distance from the wall can be adjusted during installation. The horizontal crossbar allows for precise leveling of the device.
Universal Black Wall Mount for Air Conditioner

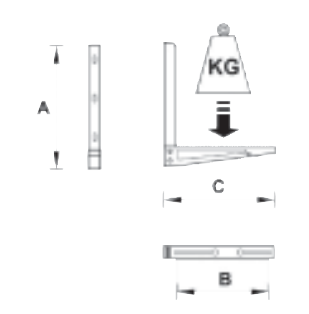

Technical specifications:
- Color: Black
- Length of the vertical support: 375 mm
- Arm length: 550 mm
- Length of the crossbar: 780 mm
- Maximum load: 150 kg
Robust and durable:
The mount is made of waterproof material and has a powder coating that ensures weather resistance and a long service life.
Versatile application:
This mount is designed to be compatible with various models and types of outdoor air conditioners and heat pumps, making it extremely flexible.
Easy and quick installation:
Thanks to the optimal arm spacing, the included mounting screw set, and the ability to adjust the distance from the wall, installing this mount is quick and easy, saving you time and effort.
Precise leveling:

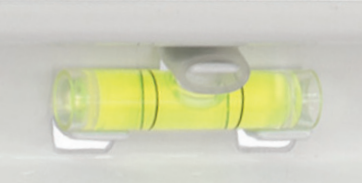

The integrated leveling rail allows precise alignment of the outdoor unit, which further simplifies installation.
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
Technical Data
Installation
Notes
Manufacturer Information
UBB Umformtechnik GmbH Adresse Im Grund 1, Burgbernheim, 91593, DE E-Mail info@ubb-gmbh.de Telefon 49(0)98433080
